Technical Specifications

• Performance Con Rods designed for high horsepower applications
• Power Output: 600hp to 800hp per set

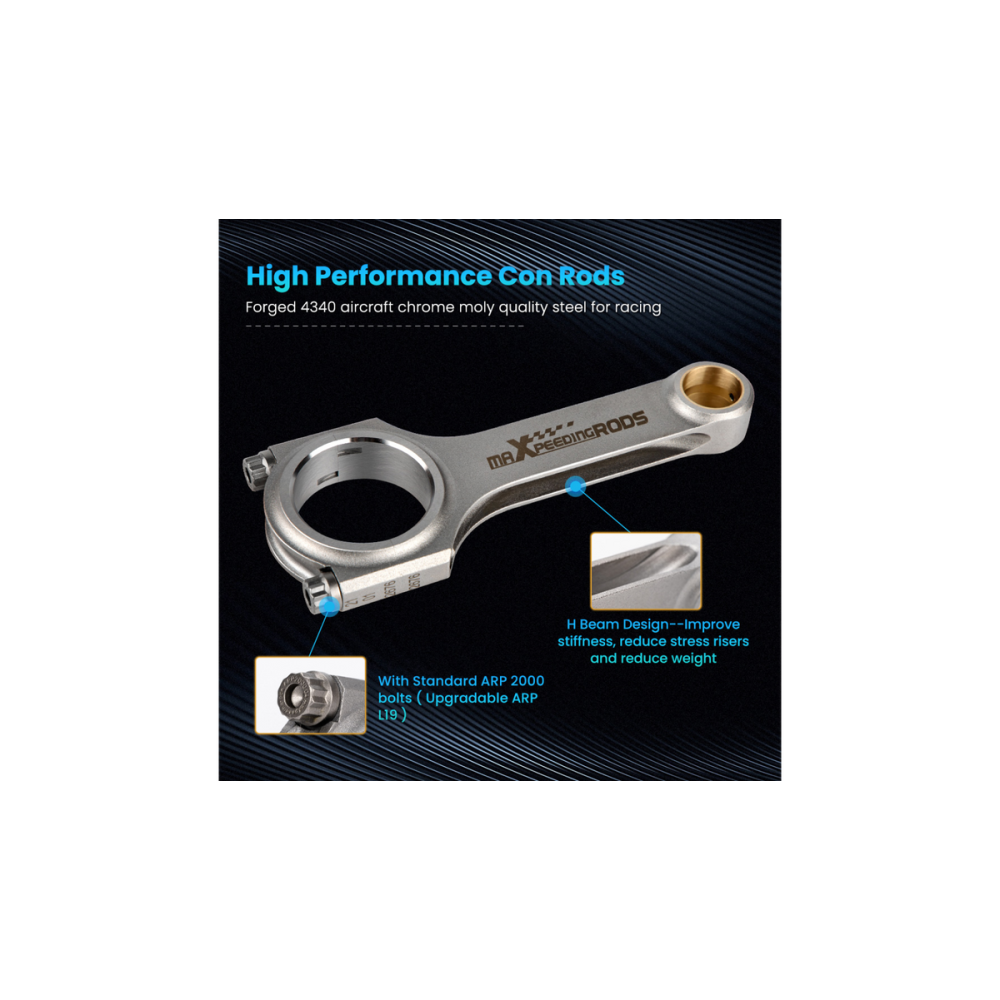

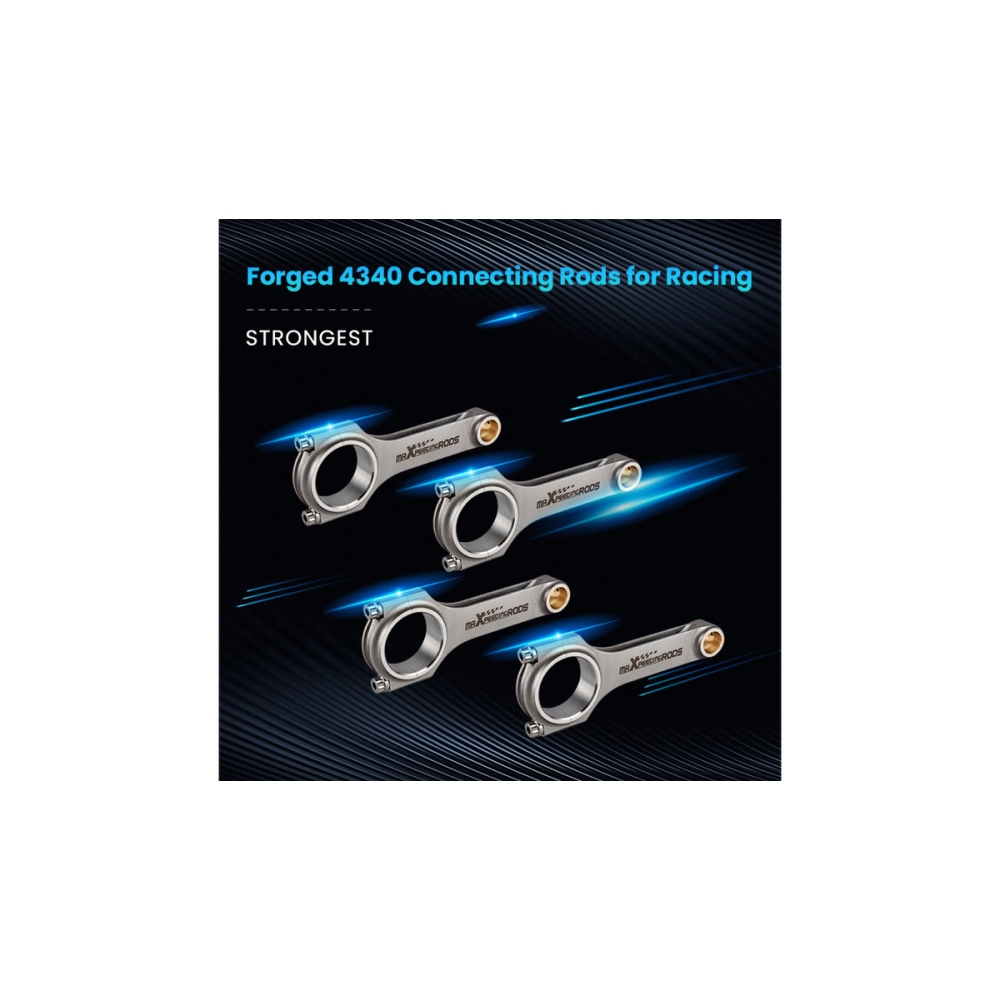

• Material: Forged 4340 chrome moly steel, engineered for racing durability

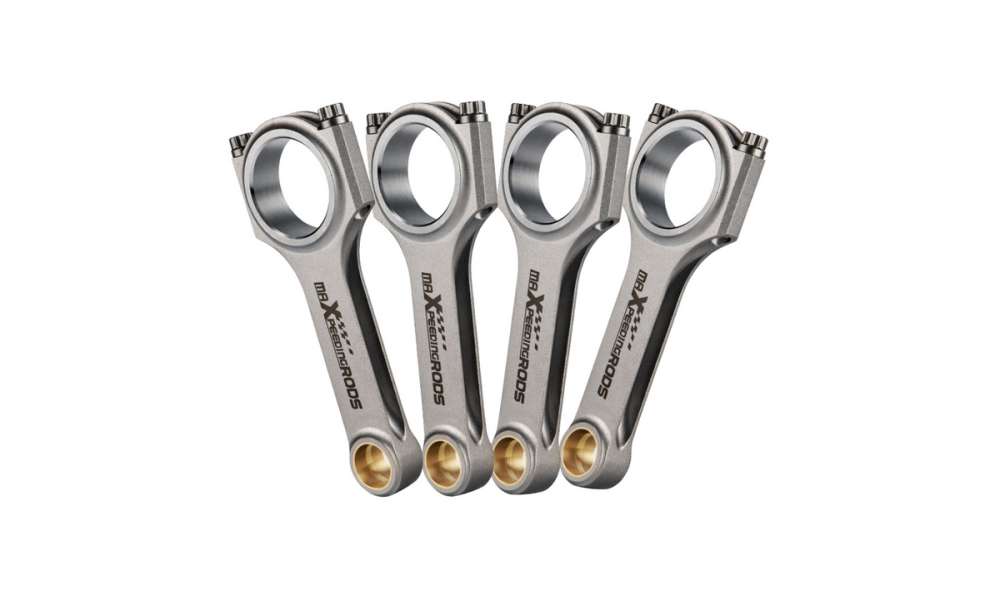

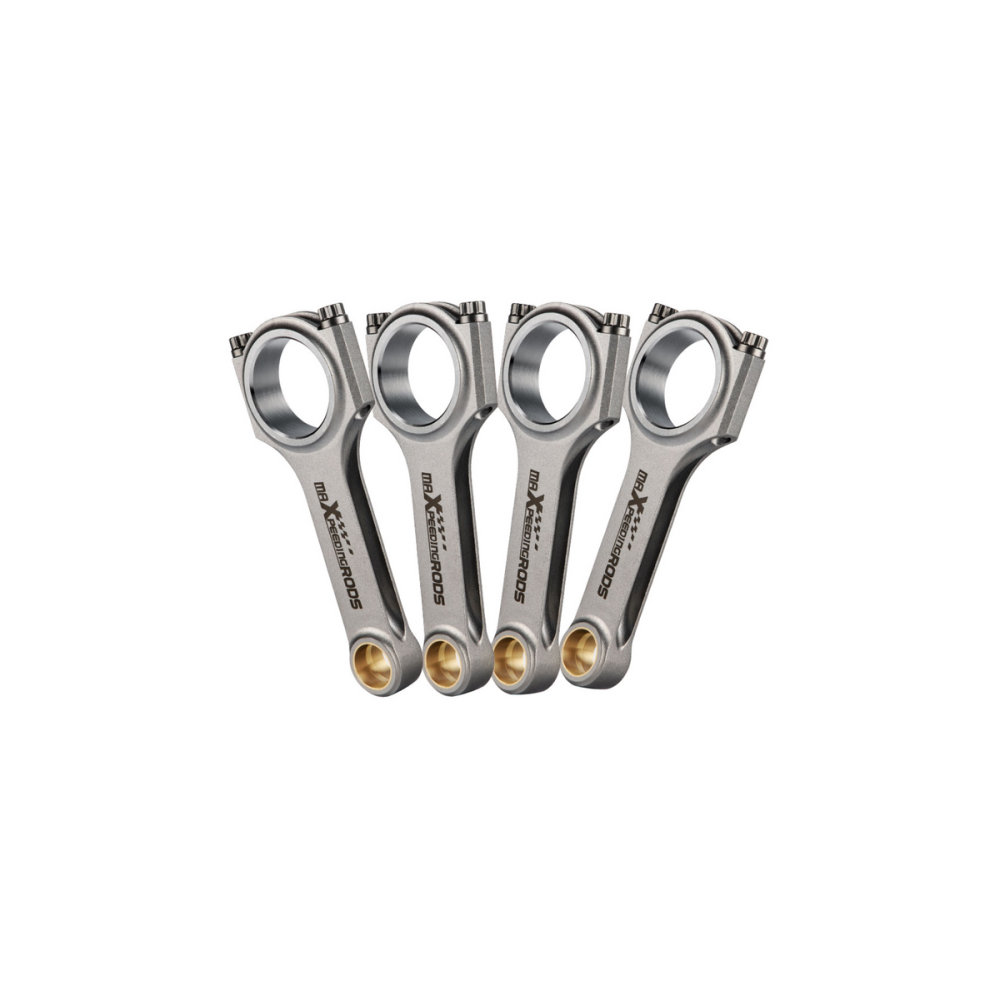

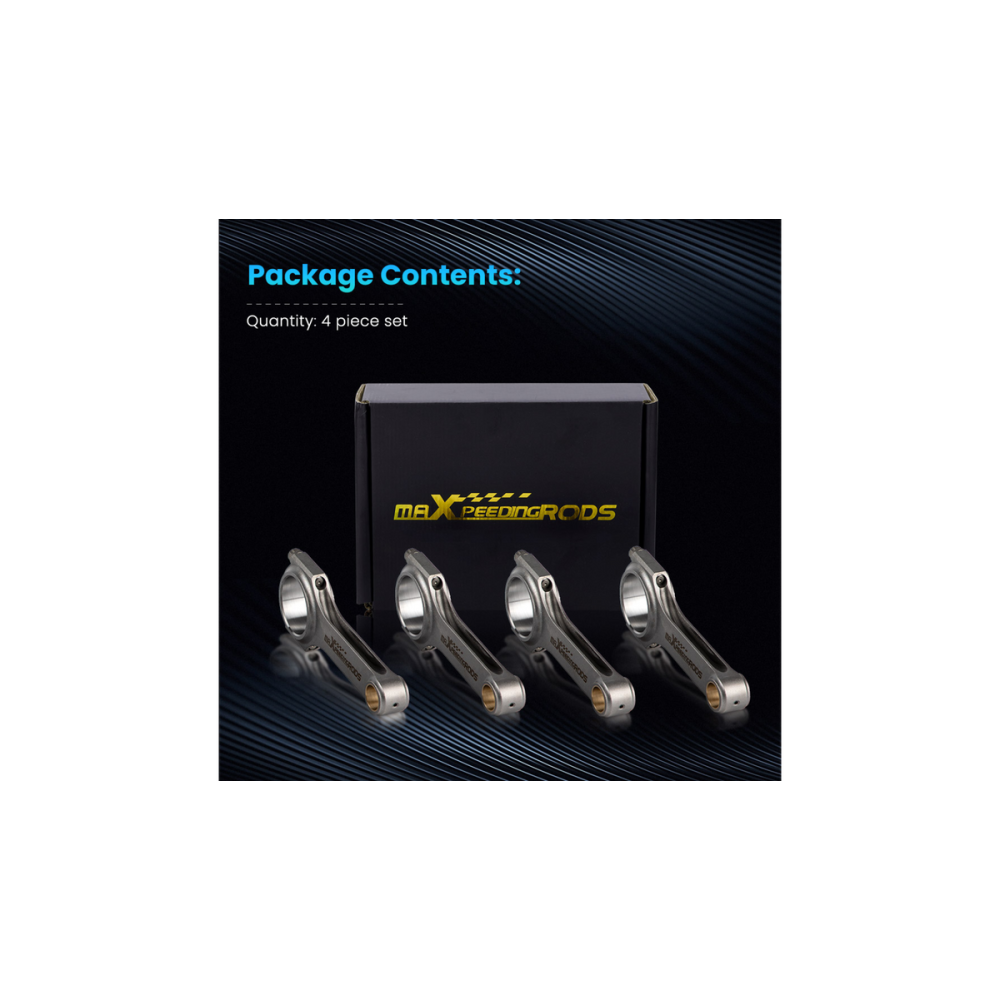

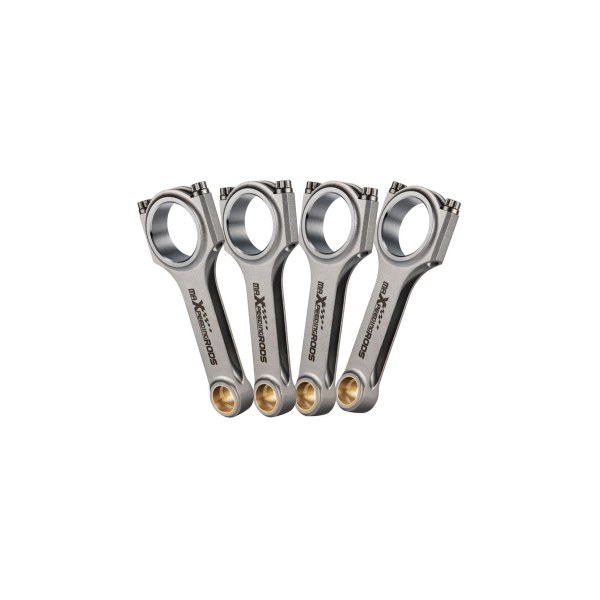

• Set Includes: 4 rods as depicted in the product image
• Fasteners: Supplied with Genuine ARP 2000 5/16" bolts (Upgrade option available for ARP L19 bolts at additional cost)
• Horsepower Rating: 200HP per rod
• Maximum RPM: Capable of handling up to 9000rpm
• Weight Precision: Balanced within +/- 1 gram across the set

Compatibility

• VW 1.9 TDI PD130 / PD150
• VW 2.0 TDI PD140 / PD170 ASZ BKD
• Audi A3 8L1 (1996 - 2003) Hatchback 1.9 TDI
• Seat Leon 1M1 (1999 - 2006) Hatchback 1.9 TDI
• Skoda Fabia I 6Y2 (1999 - 2008) Hatchback 1.9 TDI
• VW Golf MK III (1991 - 1999) 1.9 / 2.0
• VW Golf MK IV (1997 - 2006) 1.9 / 2.0
• VW Golf Cabriolet MK III (1993 - 2002) Convertible 1.9 / 2.0
• VW Polo 9N_ (2001 - 2009) Hatchback 1.9

Dimensions

• Center-to-Center Length: 144mm
• Big End Diameter: 53.7mm
• Small End Diameter: 26mm (tapered)
• Big End Width: 24.9mm
• Small End Width: 24.9mm

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining techniques.
- All ends are meticulously finished with SUNNEN honing for optimal performance.
- Equipped with precision alignment sleeves to secure the rod cap, maintaining bore size and preventing cap movement.

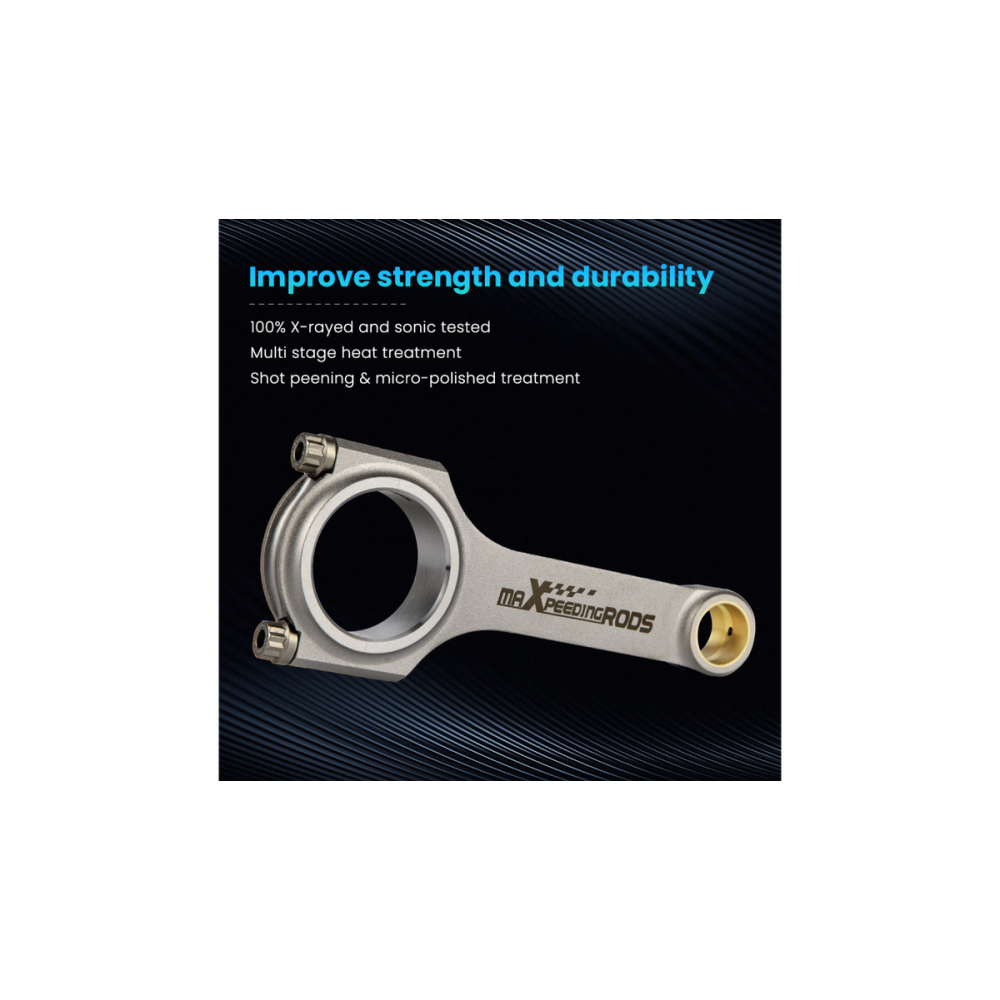

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and longevity.
- Shot peened to relieve internal stresses, ensuring reliability under extreme conditions.
- Includes bronzed bushings compatible with floating piston pins for seamless operation.

Important Notes

- Verify the rod dimensions and specifications carefully before purchase.
- Professional installation is strongly recommended; no installation instructions are provided.
