Technical Specifications

• Engine Compatibility: Audi / VW EA839 V6 24v TFSI 3.0T
• Engine Type: EA839 V6 24v 3.0-liter Six-cylinder (3.0 TFSI)
• Valve Configuration: DOHC
• Performance Con Rods: Designed for high-performance applications

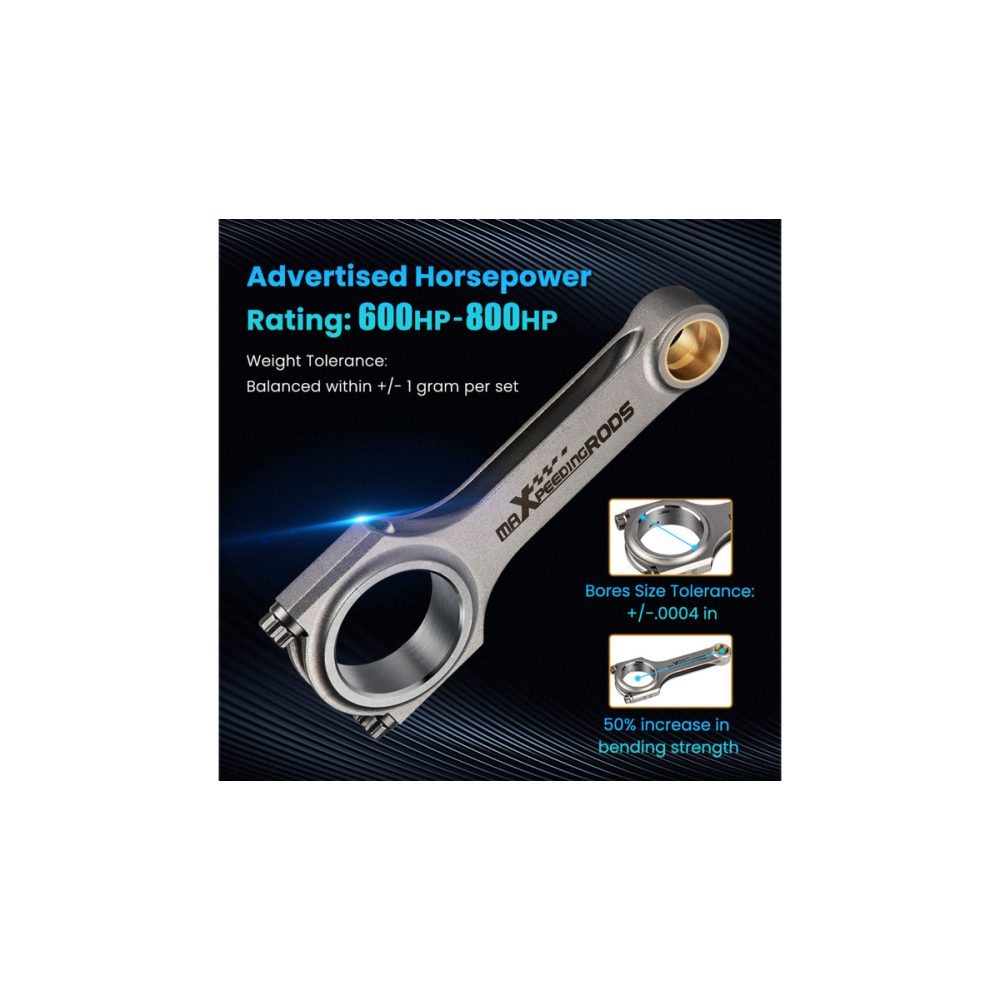

• Power Output: Capable of supporting 600hp to 800PS per set

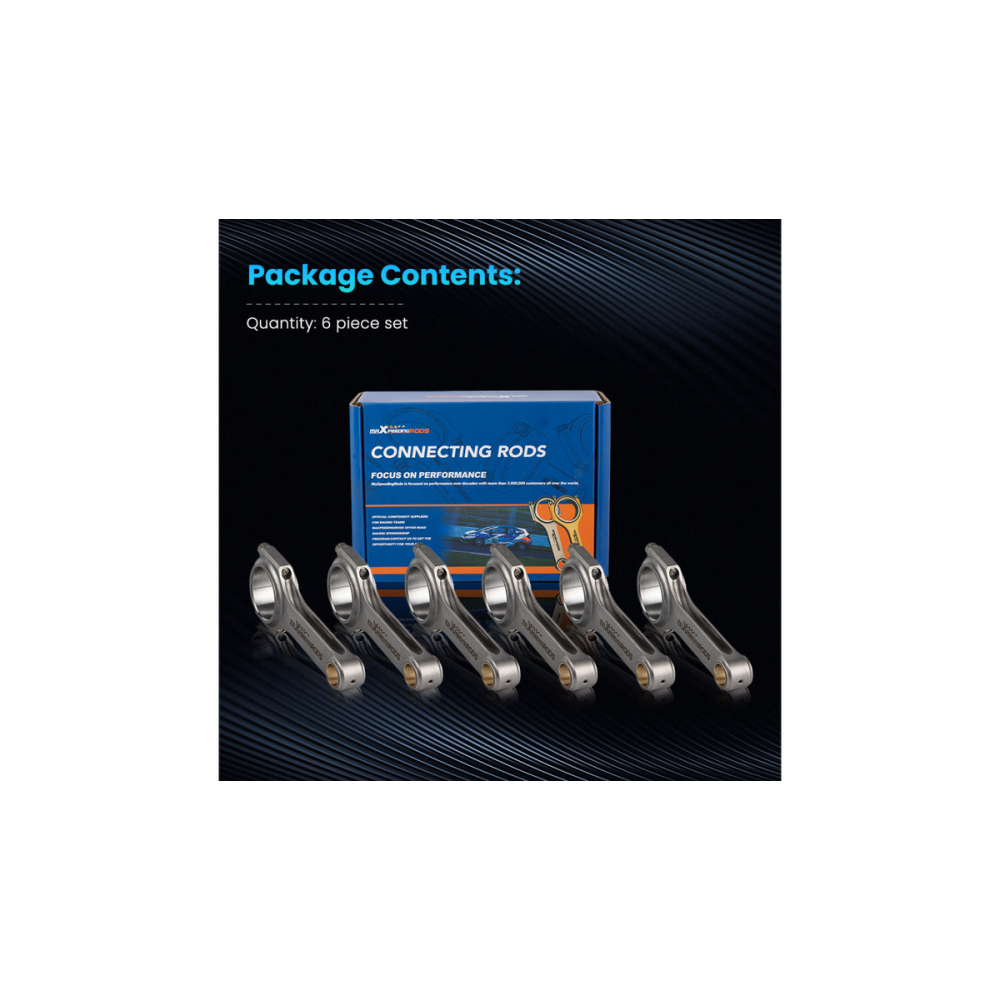

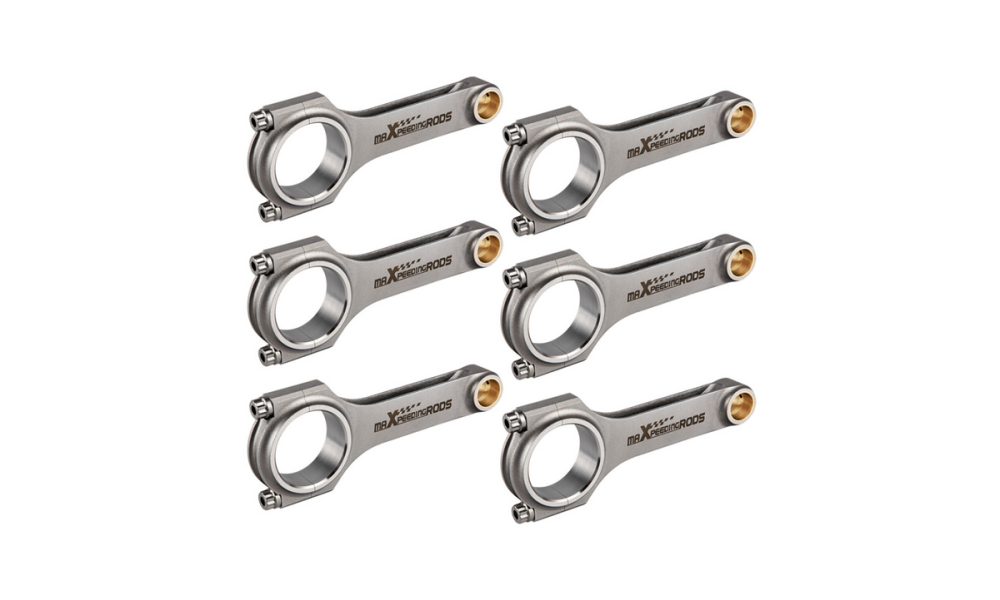

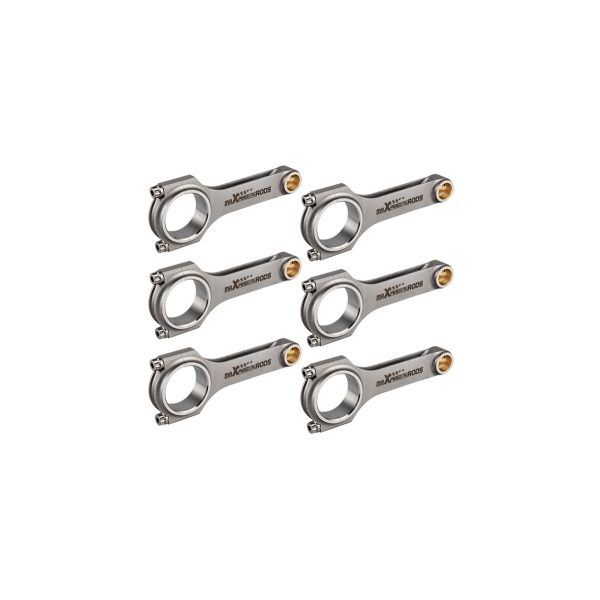

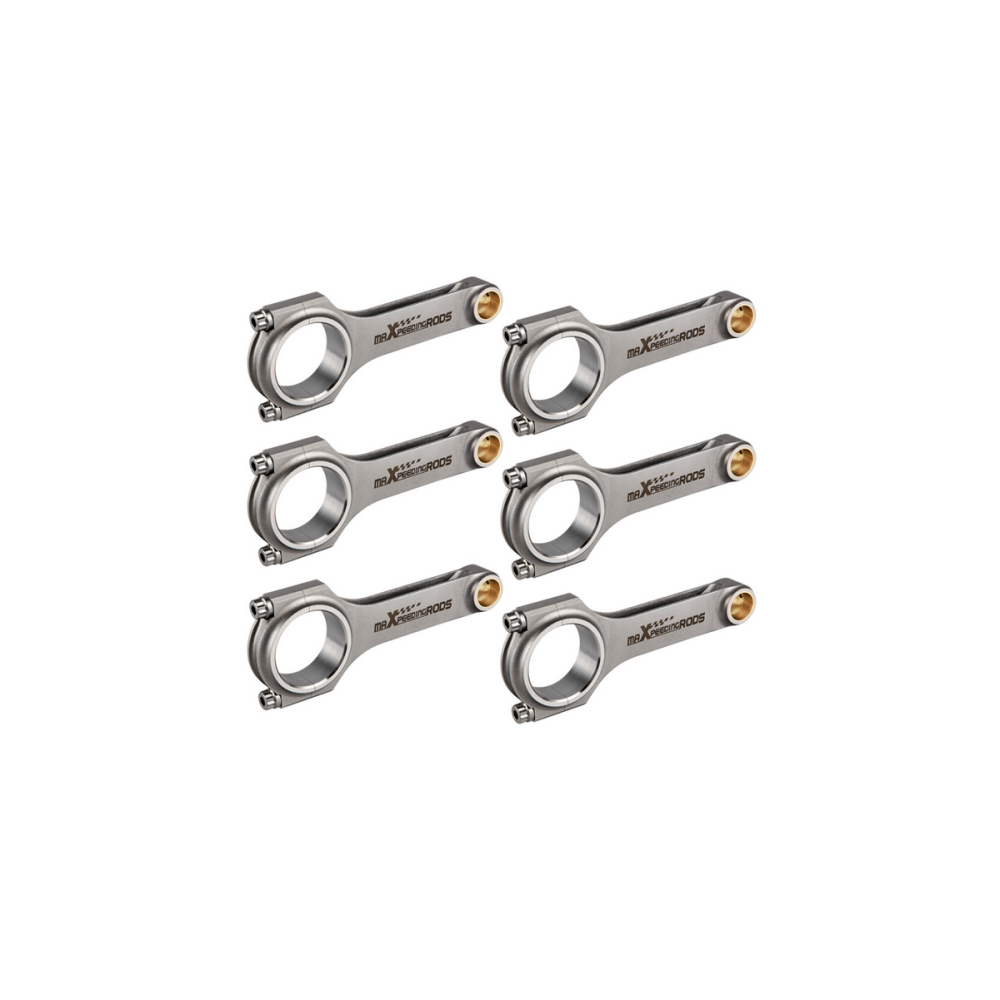

• Set Composition: 6 pieces per set, as depicted in the product image
• Included Fasteners: Genuine ARP 2000 5/16" bolts (optional upgrade to ARP L19 bolts available at additional cost)

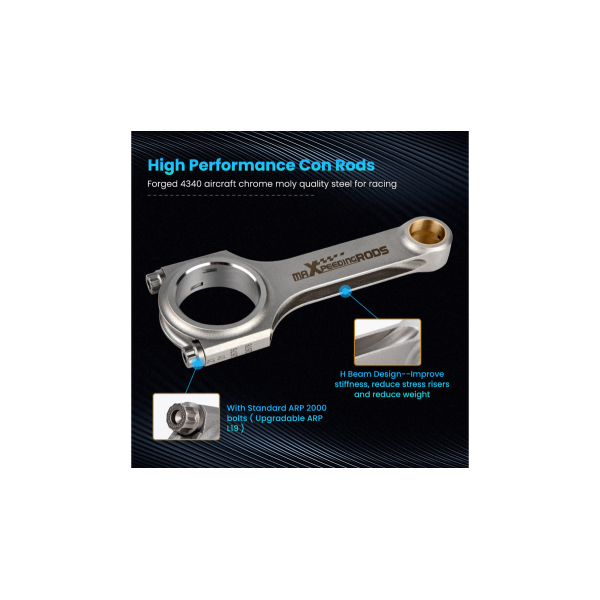

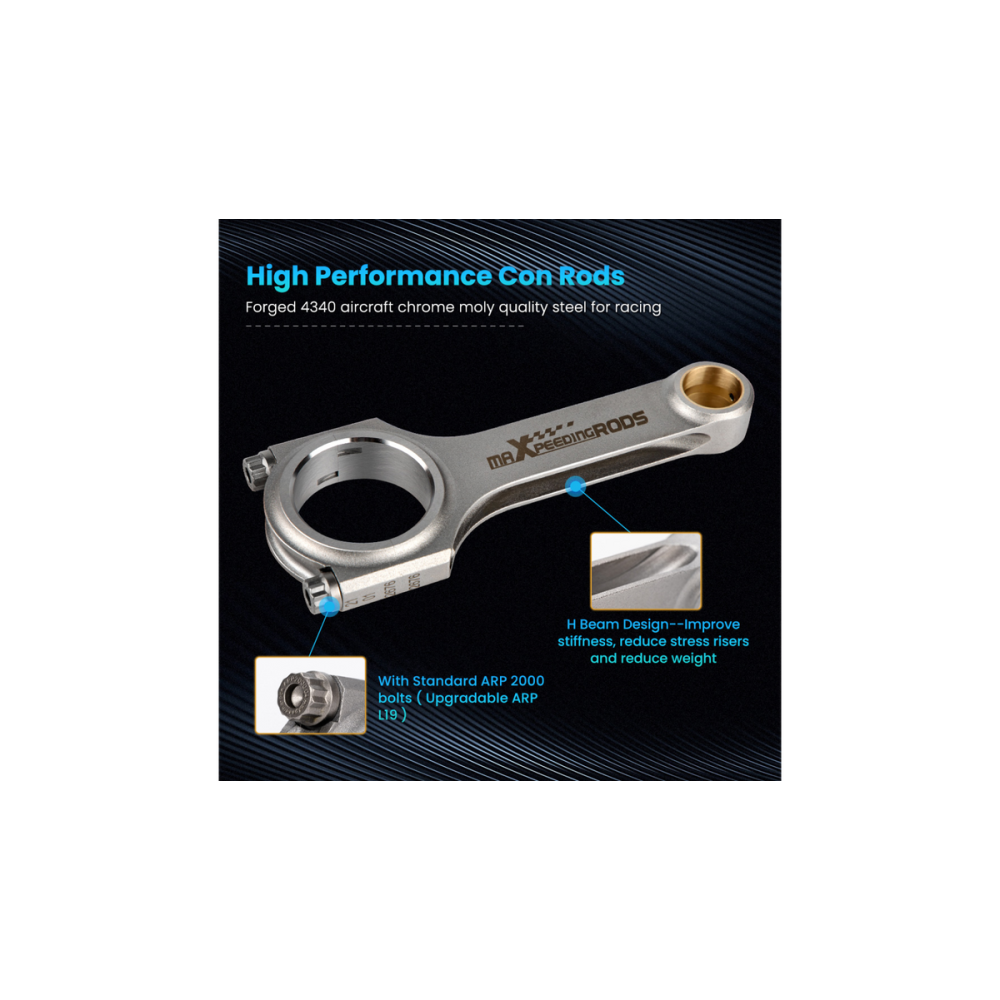

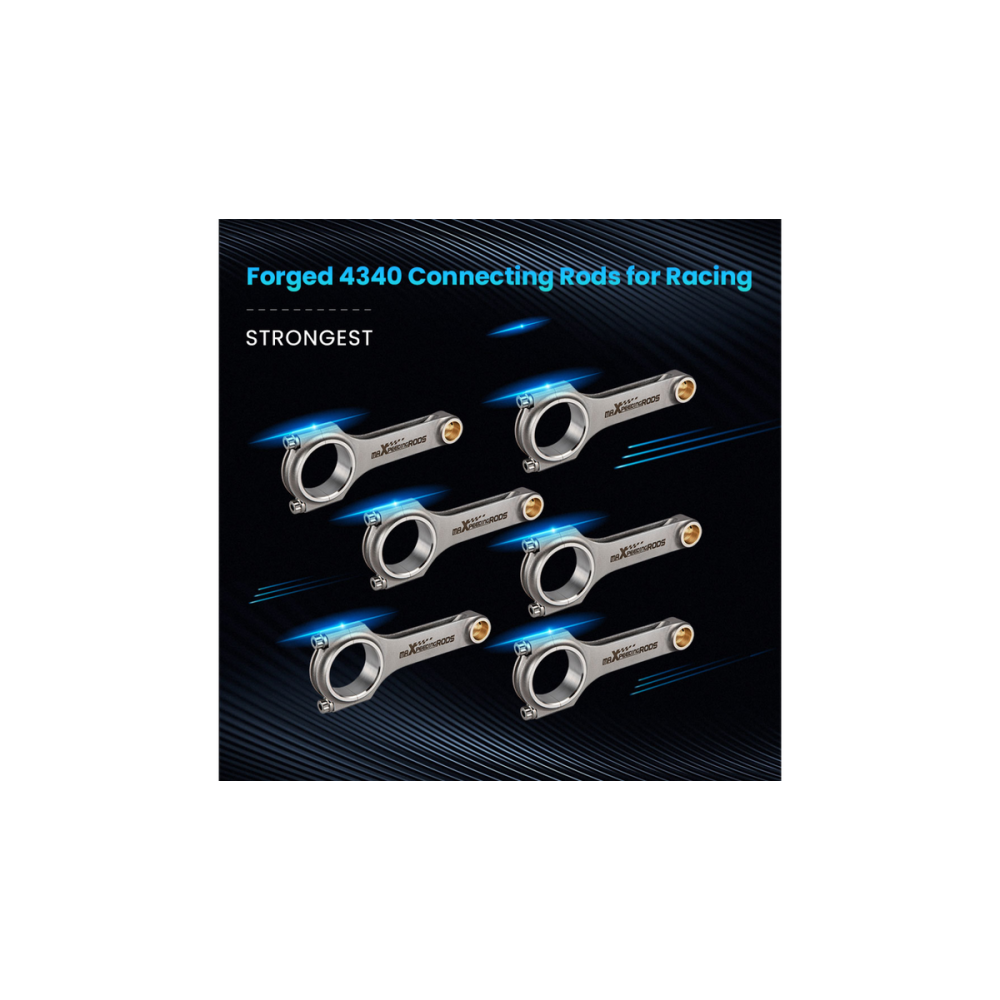

• Material Construction: Forged 4340 EN24 aircraft-grade chrome moly steel, optimized for racing
• Weight Precision: Balanced to within +/- 1 gram per set

Dimensions:

• Center-to-Center Length: 155 mm
• Big End Diameter: 58.85 mm
• Small End Diameter: 20 mm
• Big End Width: 20.1 mm
• Small End Width: 21.9 mm

Fitment Compatibility

• Audi A6 C8 (2995ccm, 250kw, 340hp) from 06/2018 onwards
• Audi A7 C8 (2995ccm, 250kw, 340hp) from 02/2018 onwards
• Audi A8 D5 (2995ccm, 250kw, 340hp) from 09/2017 onwards
• Audi Q8 (2995ccm, 250kw, 340hp) from early 2019
• Audi S4 B9 (2995ccm, 260kw, 354hp) since 11/2016
• Audi S5 F5 (2995ccm, 260kw, 354hp) since 07/2016
• Audi SQ5 FY (2995ccm, 260kw, 354hp) since 06/2017
• VW Touareg III (2995ccm, 250kw, 340hp) from 04/2018
• Porsche Panamera II (2995ccm, 243kw, 330hp) since 11/2016
• Porsche Cayenne III (2995ccm, 250kw, 340hp) since 08/2017

Installation Notice

* We strongly recommend professional installation for optimal performance and reliability. (Installation instructions are not included.)
