Technical Specifications

• Application: Designed for Peugeot 206 2.0 S16 Super 1600 TU5JP4 (139mm)

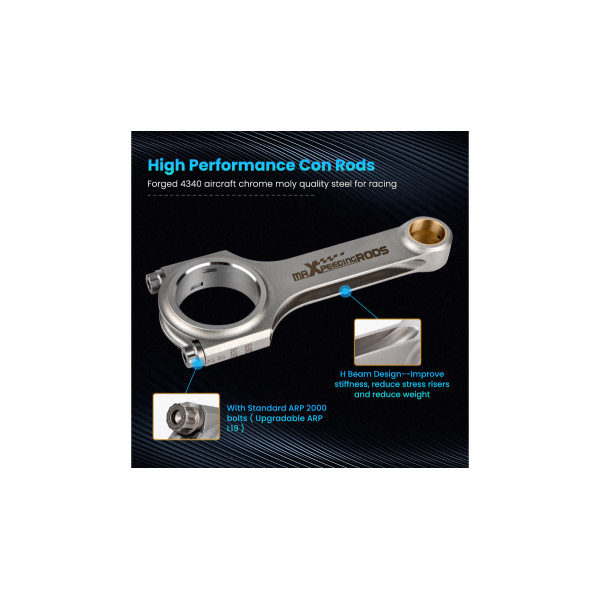

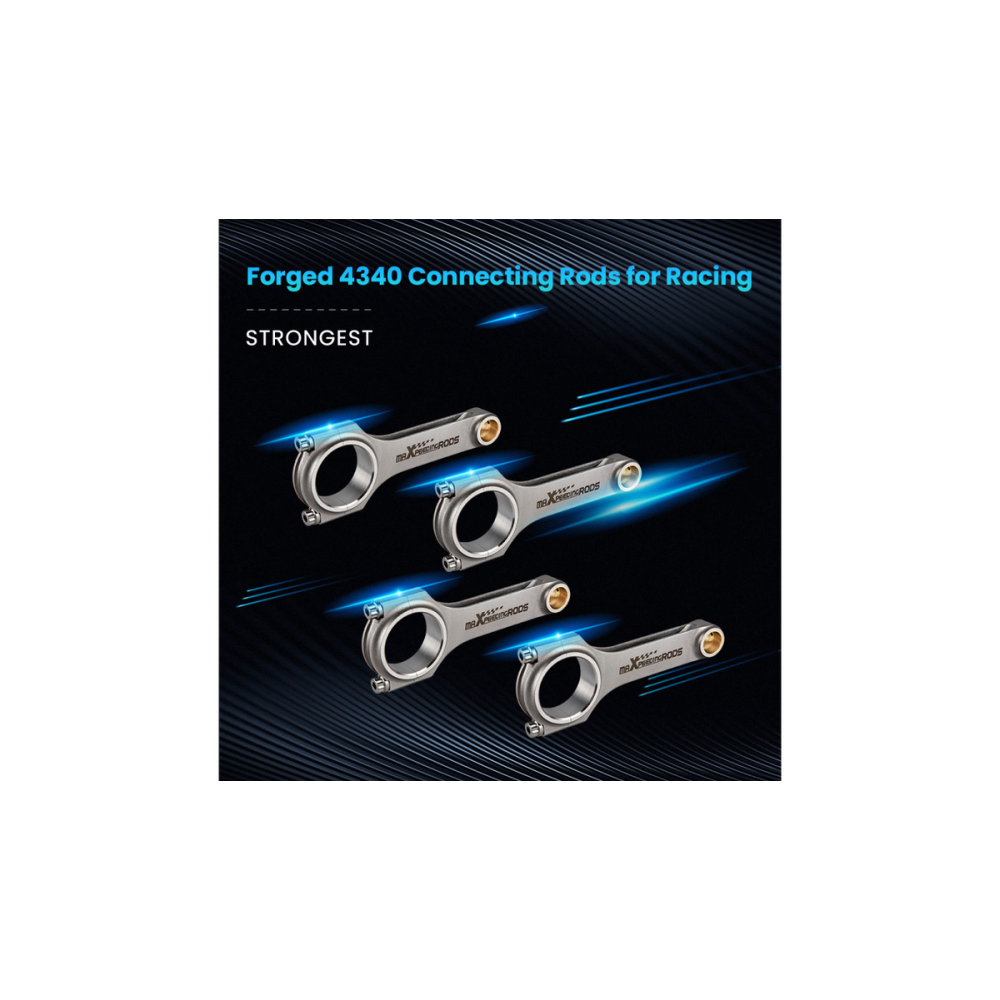

• Material: Forged 4340 chrome moly steel, ideal for racing applications

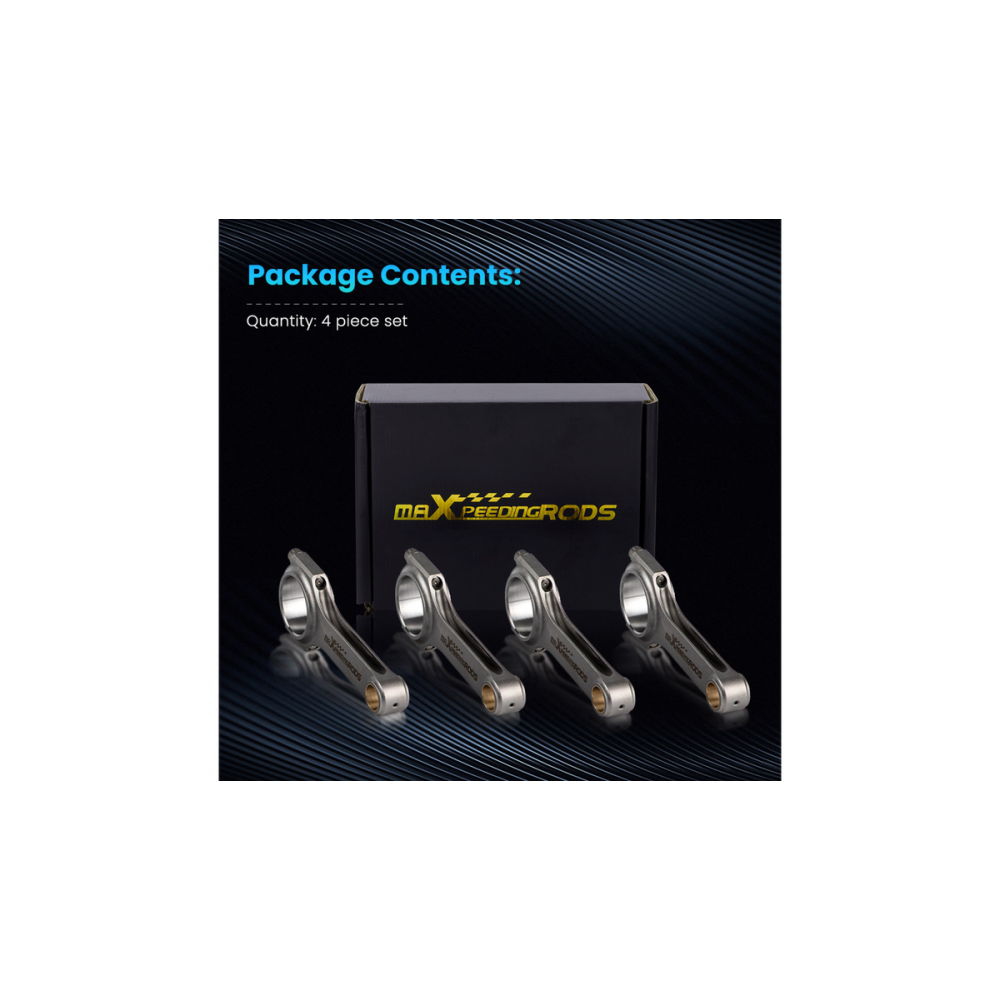

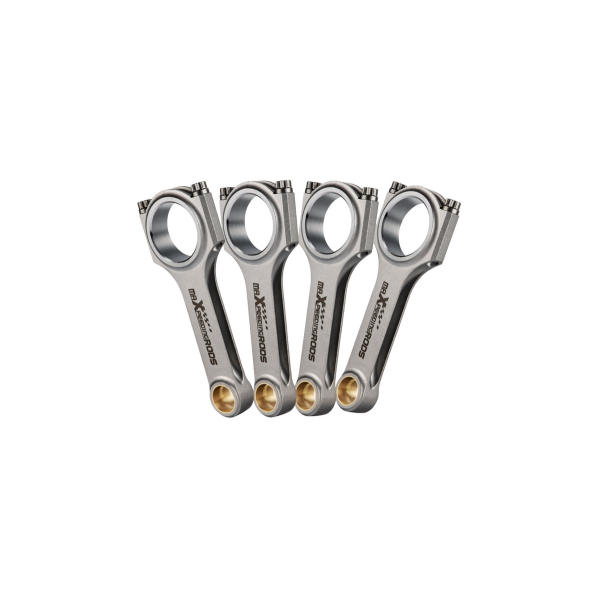

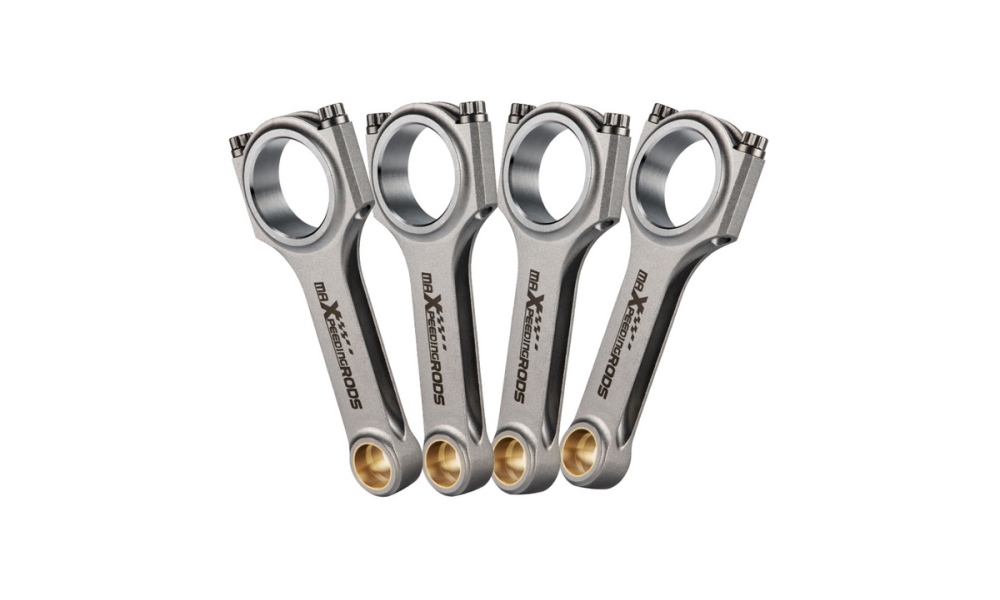

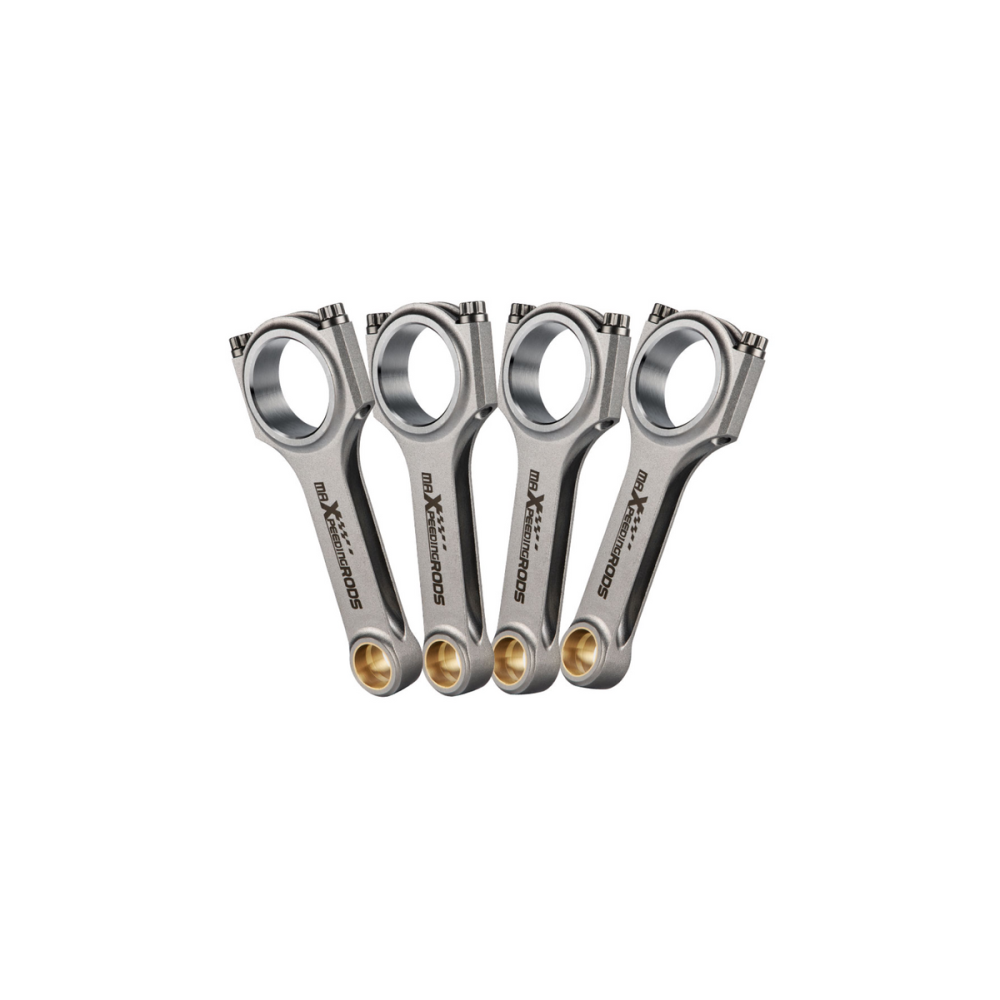

• Con Rods: H-beam design, 4 pieces per set
• Included Bolts: Genuine ARP 2000 bolts (upgrade available to ARP L19 bolts at additional cost)
• Bolts Size: 3/8" ARP 2000

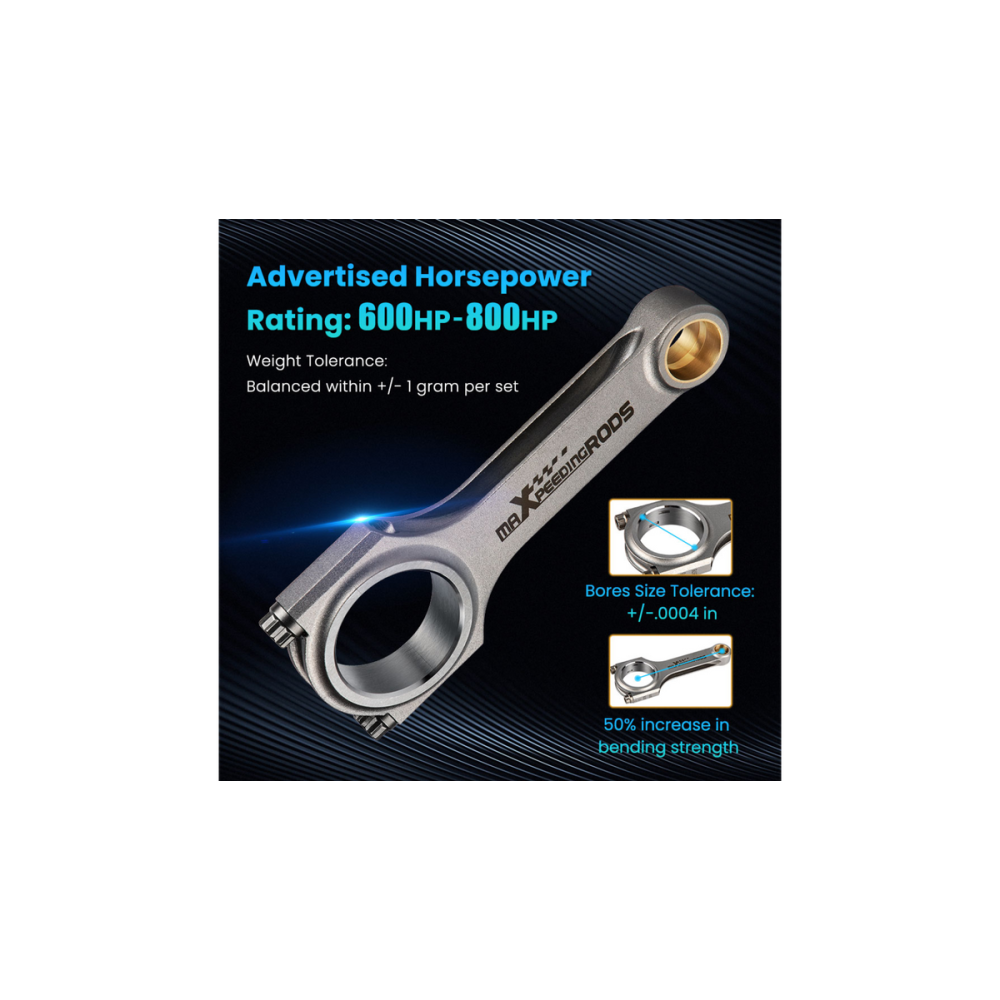

• Weight Tolerance: Balanced to within +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: Supports 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI; Torque: 48ft ≈ 65 NM
• Maximum RPM: Capable of handling up to 9000rpm

Dimensions

• Center-to-Center Length: 139mm
• Big End Diameter: 48.66mm
• Small End Diameter: 18mm
• Big End Width: 23.95mm
• Small End Width: 20mm

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining for optimal fit and finish.

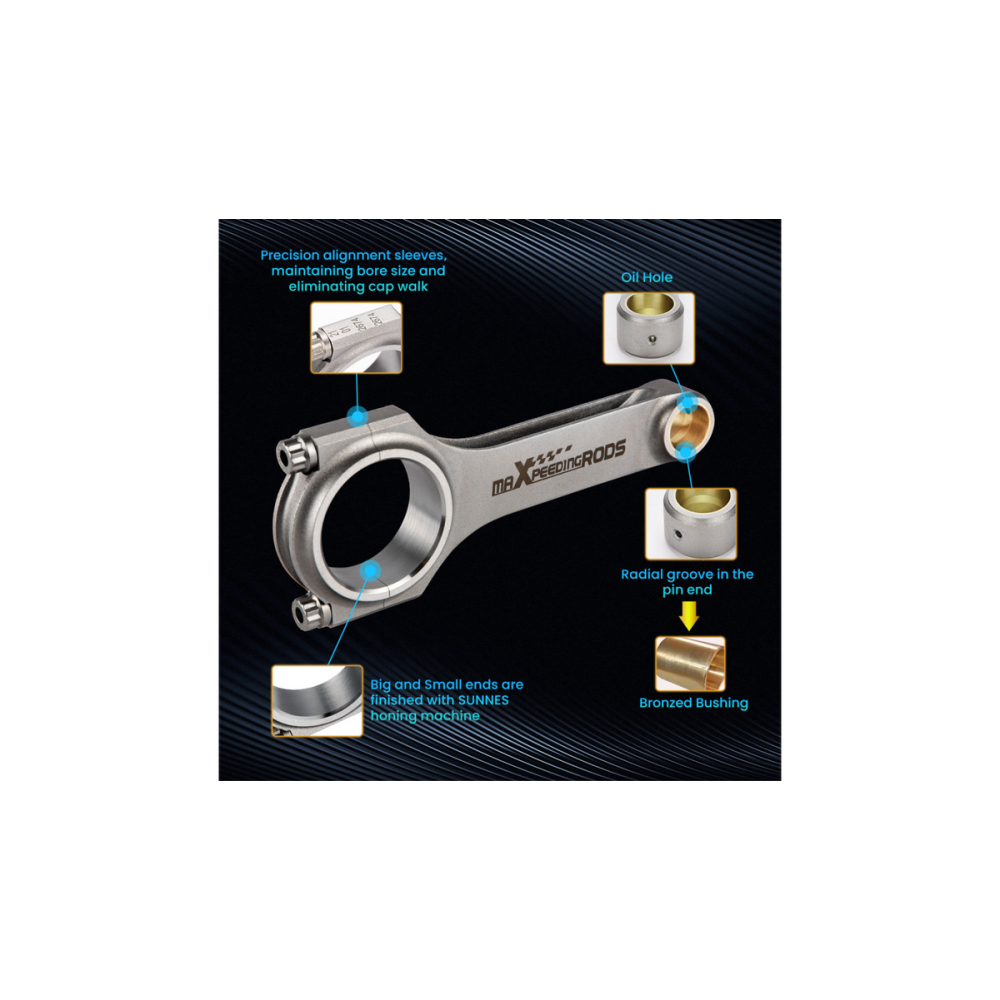

- All ends are meticulously honed with SUNNEN technology for superior surface quality.
- Equipped with precision alignment sleeves to secure the rod cap, preserving big end bore dimensions and preventing cap movement.

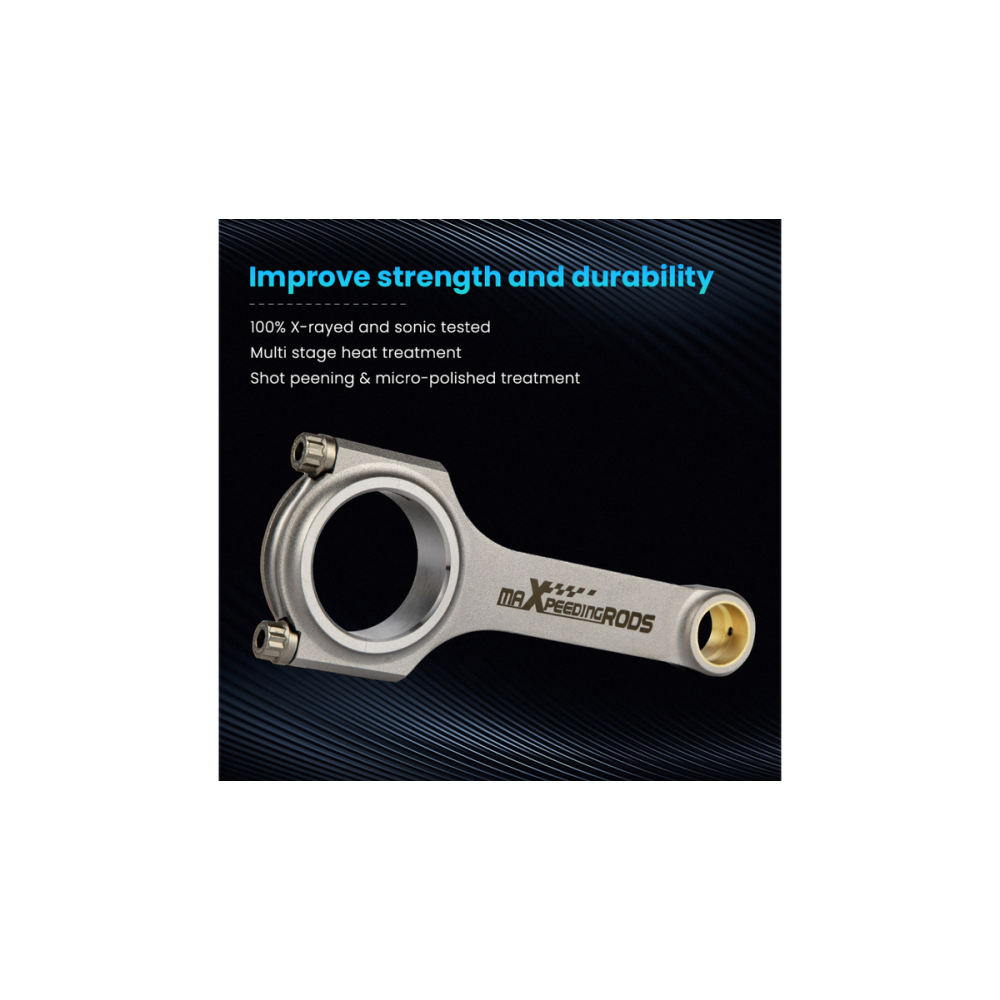

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnaflux inspection.
- Multi-stage heat treatment enhances strength and resilience under extreme conditions.
- Shot peened to relieve internal stresses, promoting longevity.
- Supplied with bronzed bushings, perfectly suited for floating piston pins.

Installation Note

For optimal performance and safety, professional installation is strongly recommended. Please note that installation instructions are not included.
