Technical Specifications

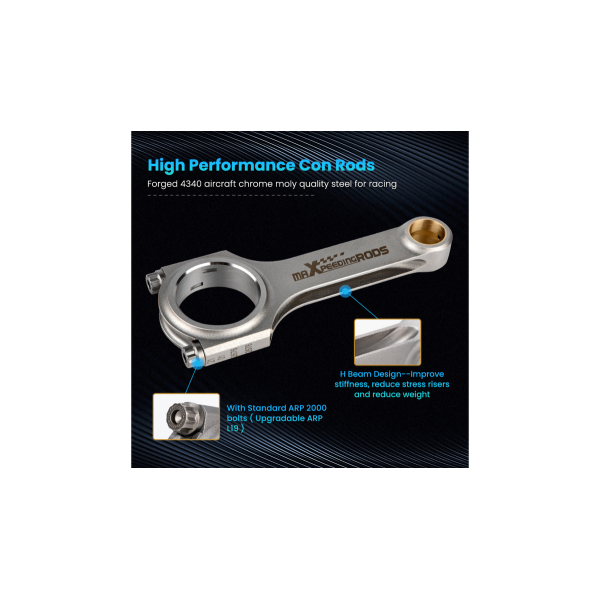

• Type: Forged 4340 Chrome Moly Steel

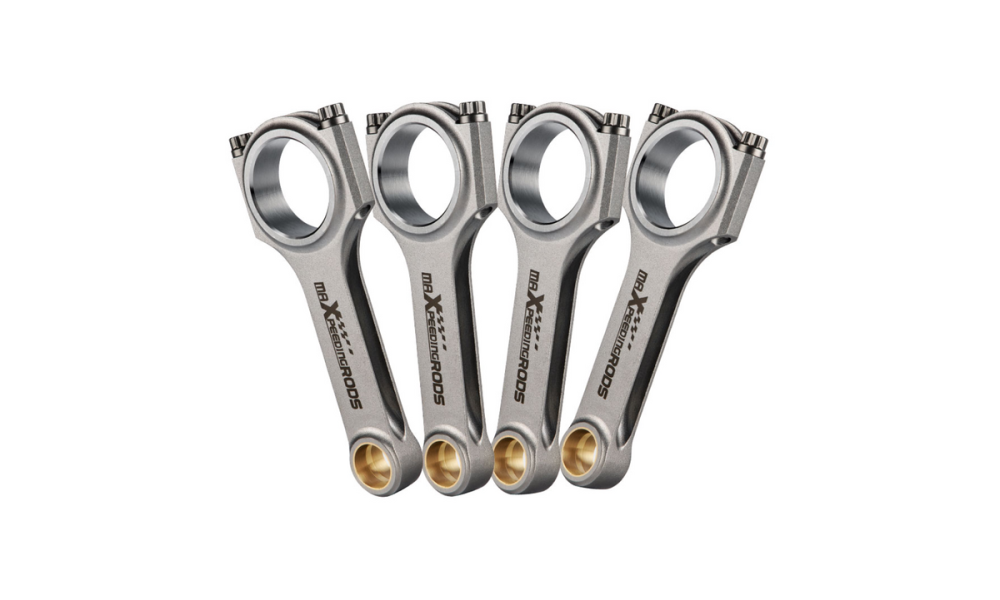

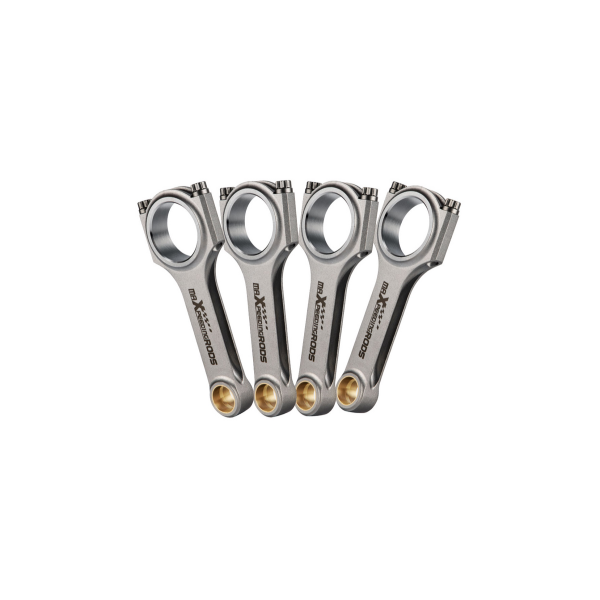

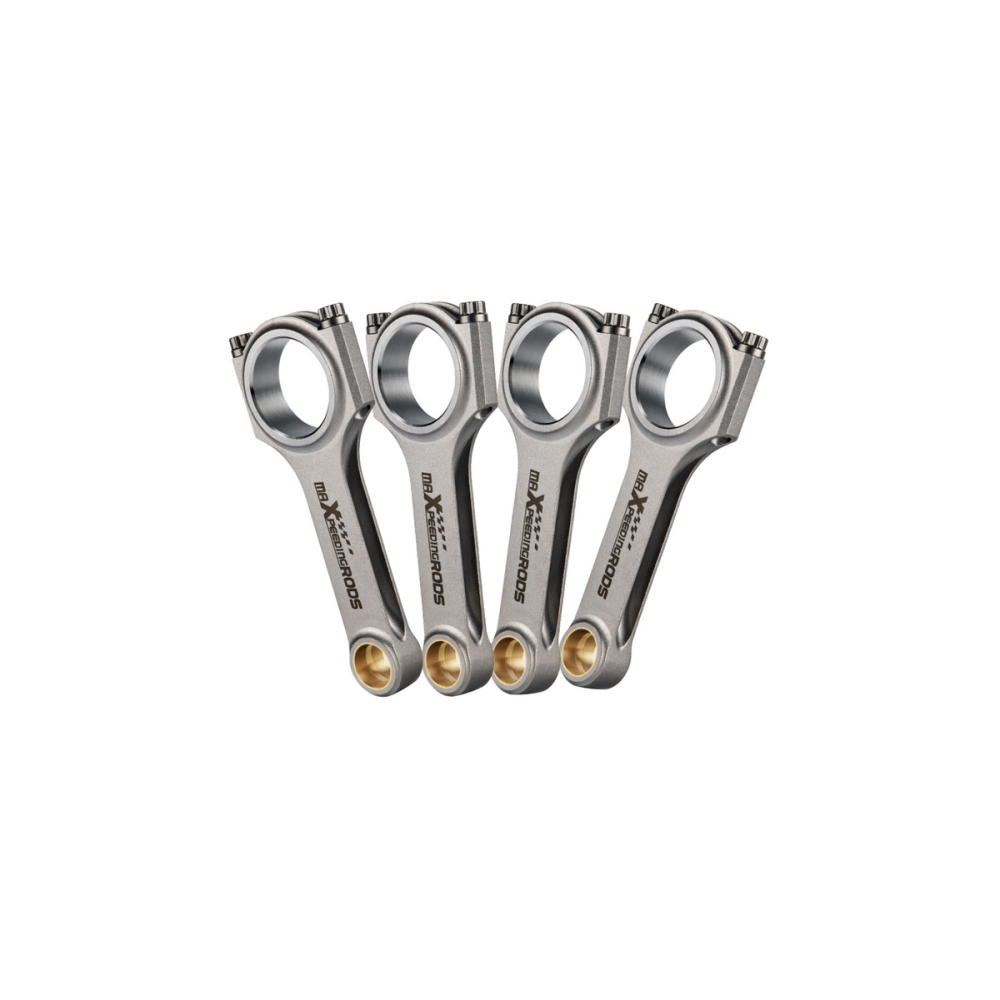

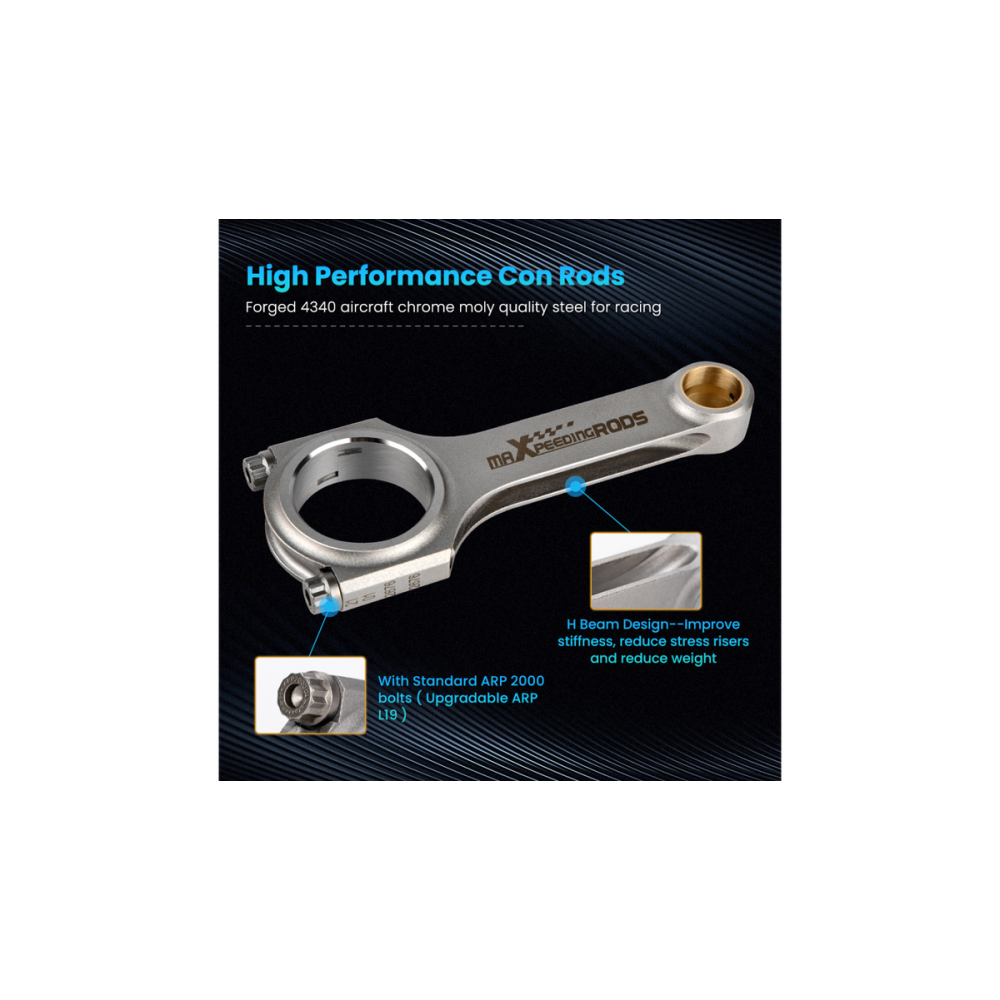

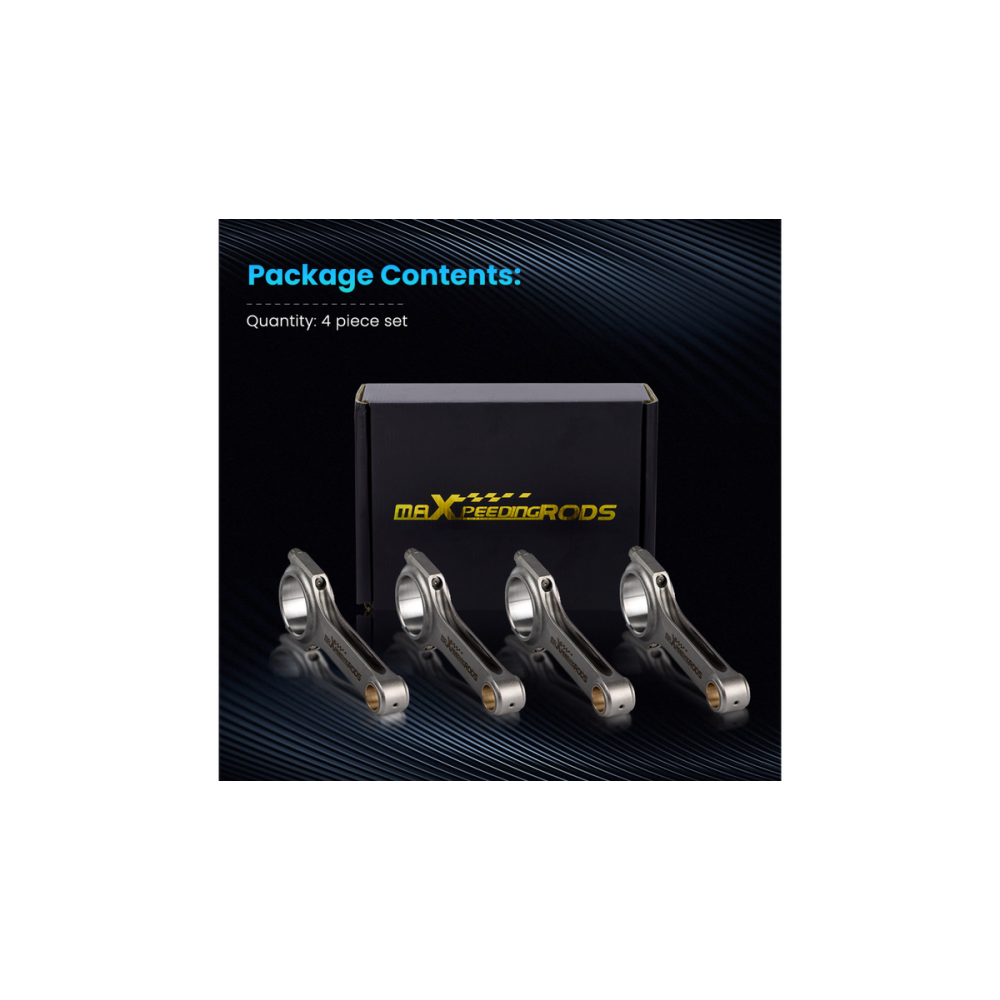

• Con Rods: H-beam design, 4 pieces per set
• Included Bolts: Genuine ARP 2000, 5/16" size
• Optional Upgrade: ARP L19 bolts (additional cost)

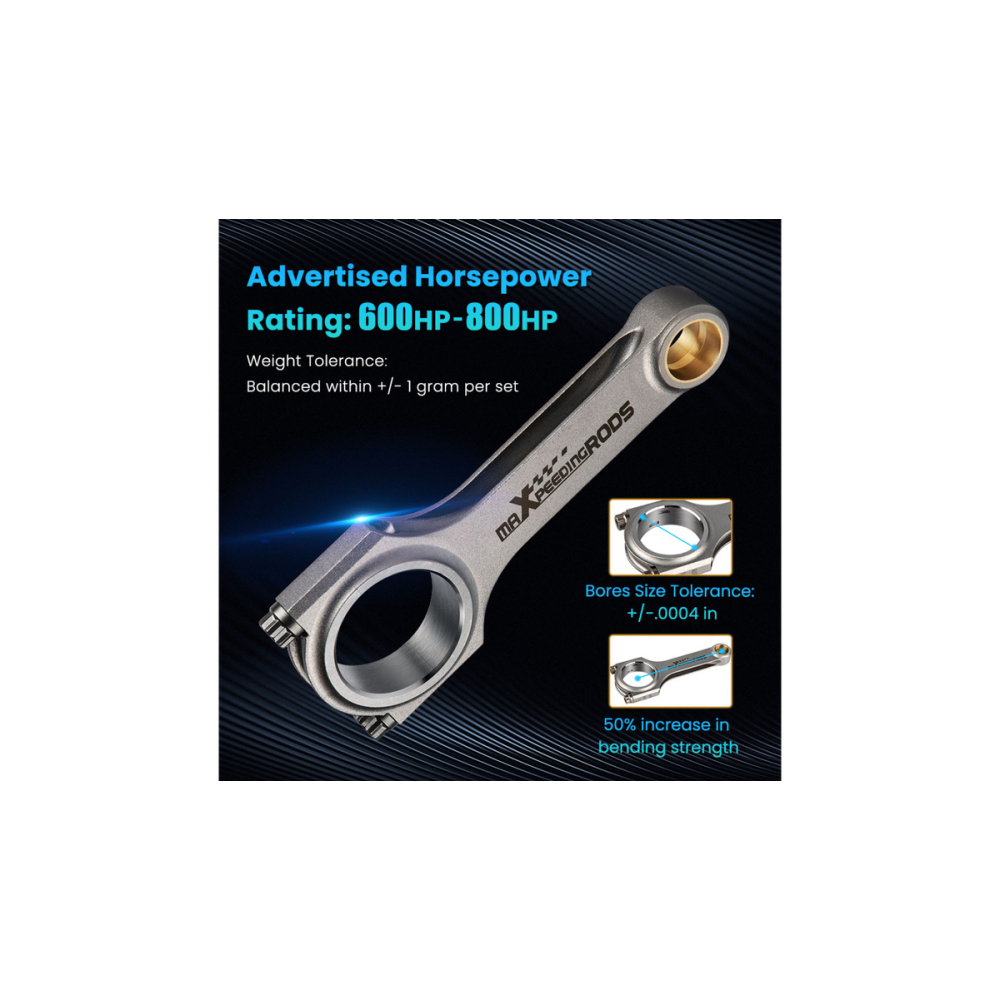

• Weight Tolerance: Balanced to +/- 1 gram
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI
• Torque Rating: 48ft (≈ 65 NM)
• Horsepower Rating: 200HP per rod
• Max RPM: 9000
• Dimensions: Center-to-center length: 133mm, Big end diameter: 48mm, Small end diameter: 20mm, Big end width: 21.84mm, Small end width: 21.84mm

Application Compatibility

• Designed for Mazda B6 1.6 / B6F Engine:
• Fits Mazda 323 BG / 323F BG (1989-1994)
• Compatible with Mazda Miata/MX-5 B6 1.6 DOHC (1989-1993)
• Works with Mazda Xedos 6 / Eunos 500 (1992–1999)
• Applicable for Kia Mentor/Shuma/Spectra 1.6 L (1997–2003)
• For Kia Rio First Generation 1.6 L (1999–2005)
• Compatible with Mazda Familia / 323 1.6 L (1985–1989)
• Fits Ford Tonic GT-X (1985–1989)
• Designed for Mazda BP 1.8 Engine:
• Compatible with Mazda Familia GT (1989-1994)
• Works with Ford Laser TX3 (1989-1994)
• Applicable for Mazda Protege LX (1990-1994)
• Compatible with Ford Escort GT and LX-E (1991-1996)
• Fits Kia Sephia RS, LS, GS (1995-1997)

Features

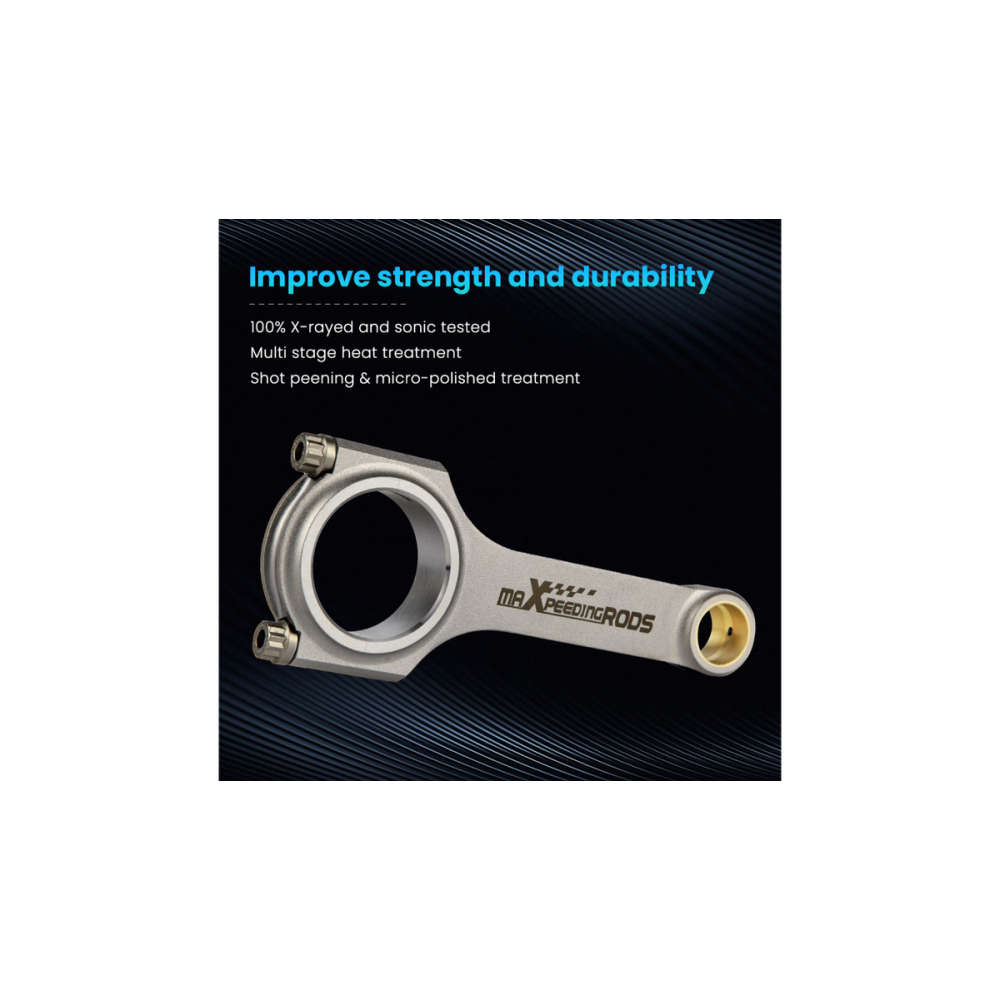

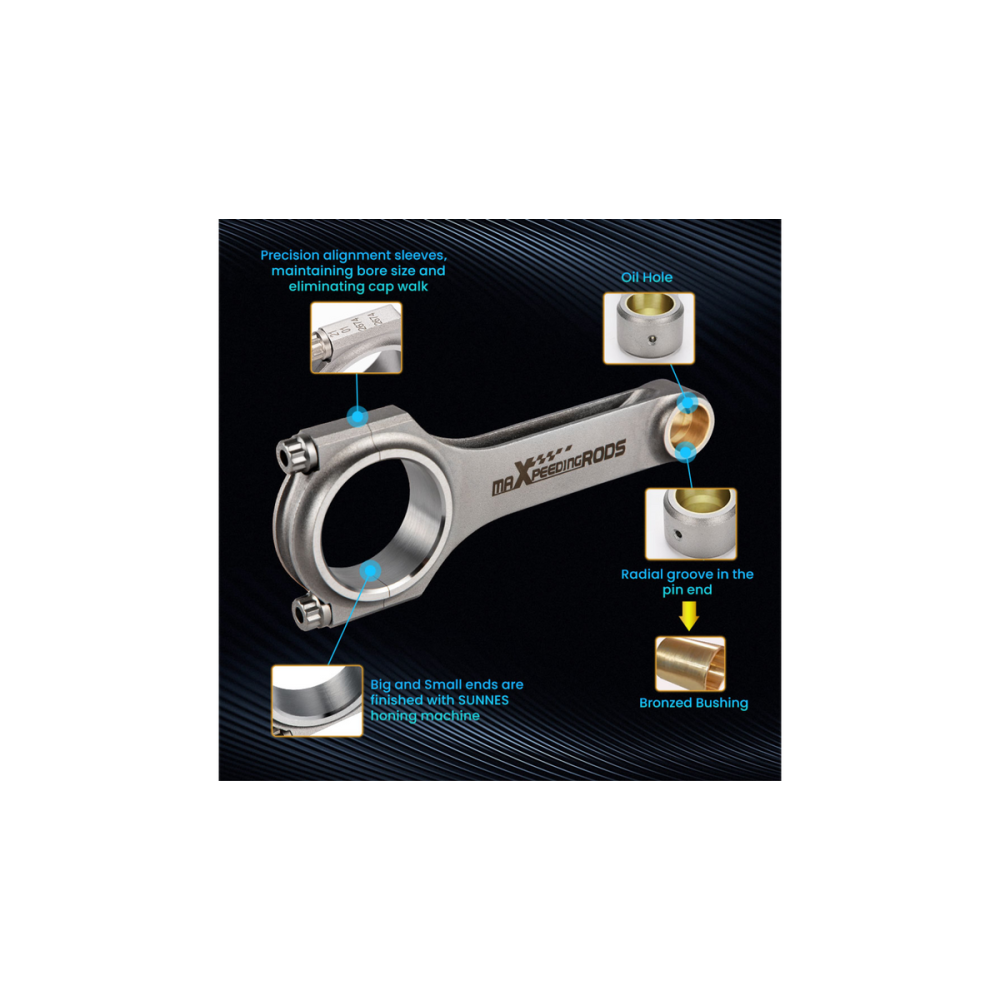

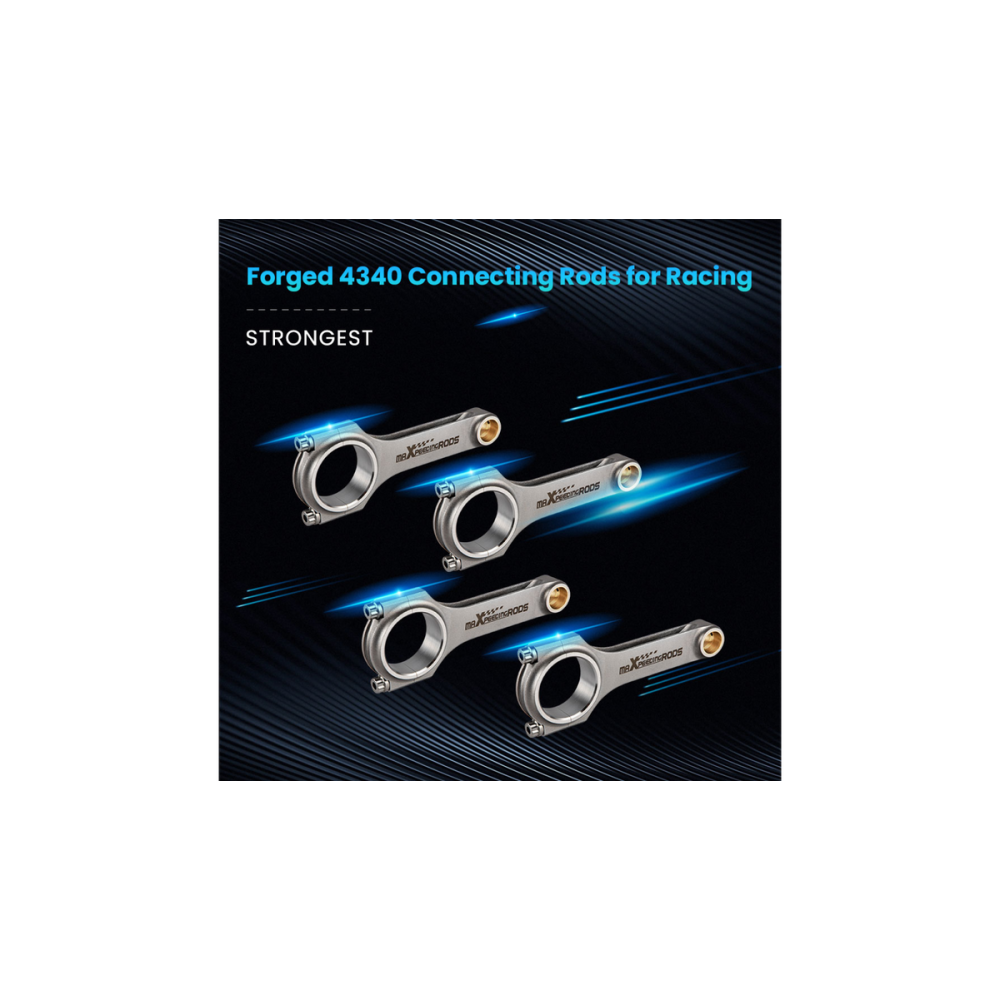

Crafted from high-strength Forged SAE 4340 Chrome Moly Steel, these con rods are engineered for racing enthusiasts seeking peak performance. Each rod undergoes CNC machining for precision, with all ends finished using SUNNEN honing technology. The design includes precision alignment sleeves to ensure optimal fit and eliminate cap walk, enhancing reliability under extreme conditions. Each rod is rigorously tested—117% X-rayed, sonic tested, and magnafluxed—ensuring superior quality. Multi-stage heat treatment and shot peening processes relieve stress, while the included bronzed bushings are tailored for floating piston pins, making these rods a top choice for serious tuners.

Installation Note

For optimal performance and safety, professional installation is strongly recommended. (Installation instructions are not included.)
