Technical Specifications

• Application: Compatible with Toyota Supra JZA70, Mark II, Crown 1JZ-GTE, 1JZ-GE, 1JZ
• Material: Forged 4340 aircraft-grade chrome moly steel

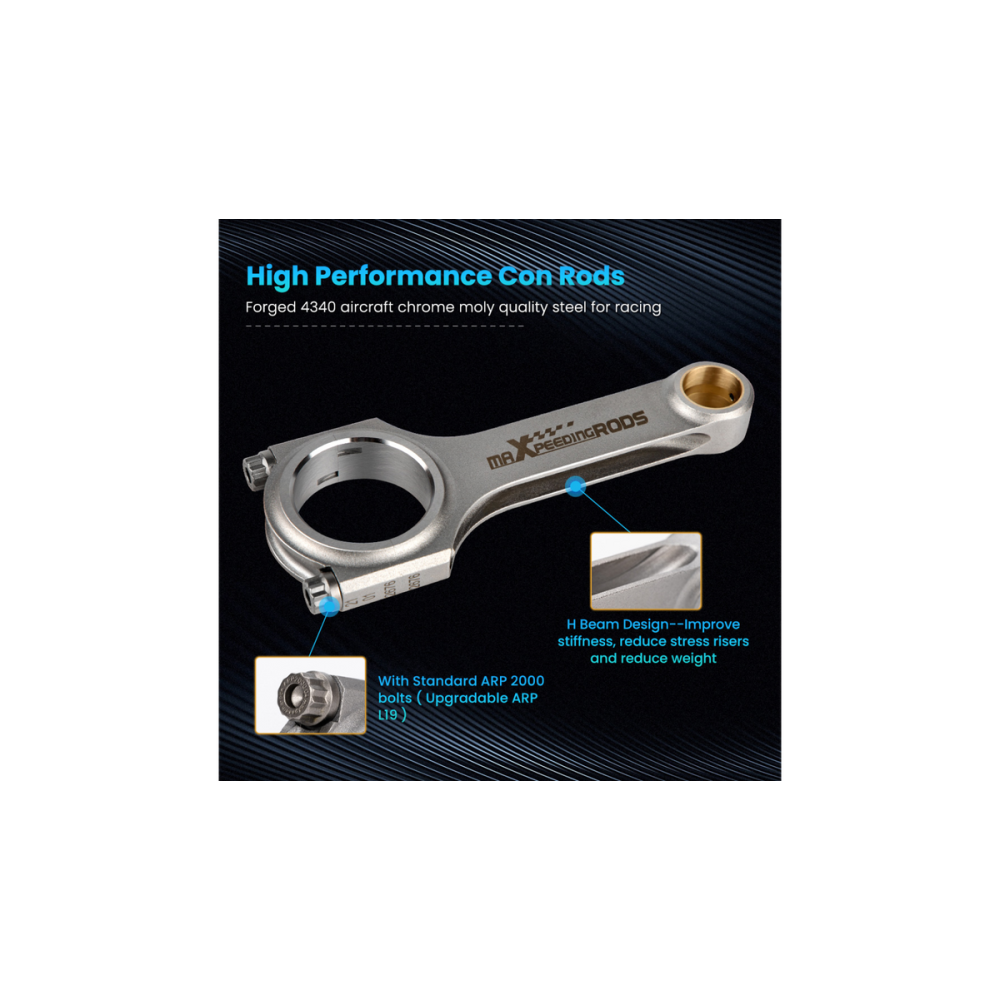

• Con Rods: H-beam design, set of 4 pieces
• Included Bolts: ARP 2000 bolts (upgrade option available for ARP L19 bolts at additional cost)
• Bolts Size: 3/8" ARP 2000

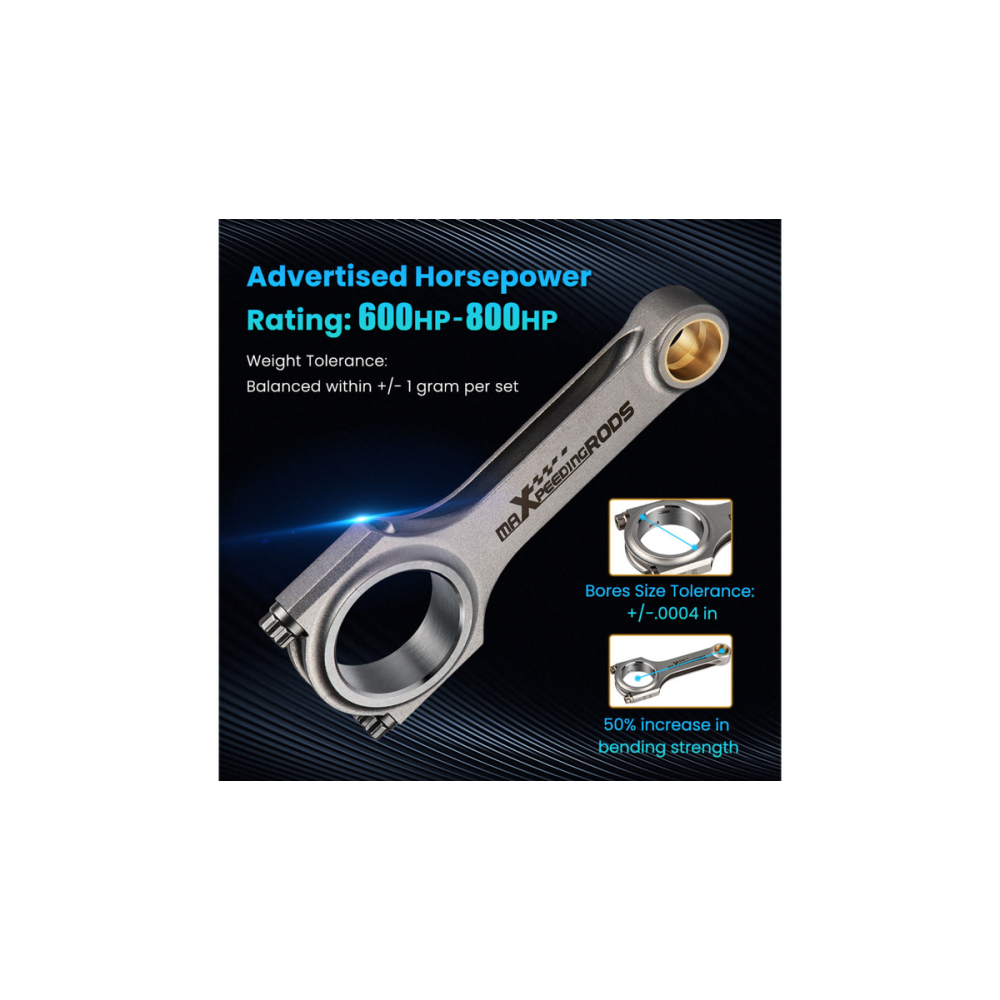

• Weight Tolerance: Balanced to within +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±4/1000mm
• Power Capacity: Supports 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI, Torque: 48ft ≈ 65 NM
• Max RPM: Capable of handling 7000 to 9000rpm
• Dimensions: Center-to-center length: 125.25mm, Big end diameter: 55mm, Small end diameter: 22mm, Big end width: 25.9mm, Small end width: 25.9mm

Product Features

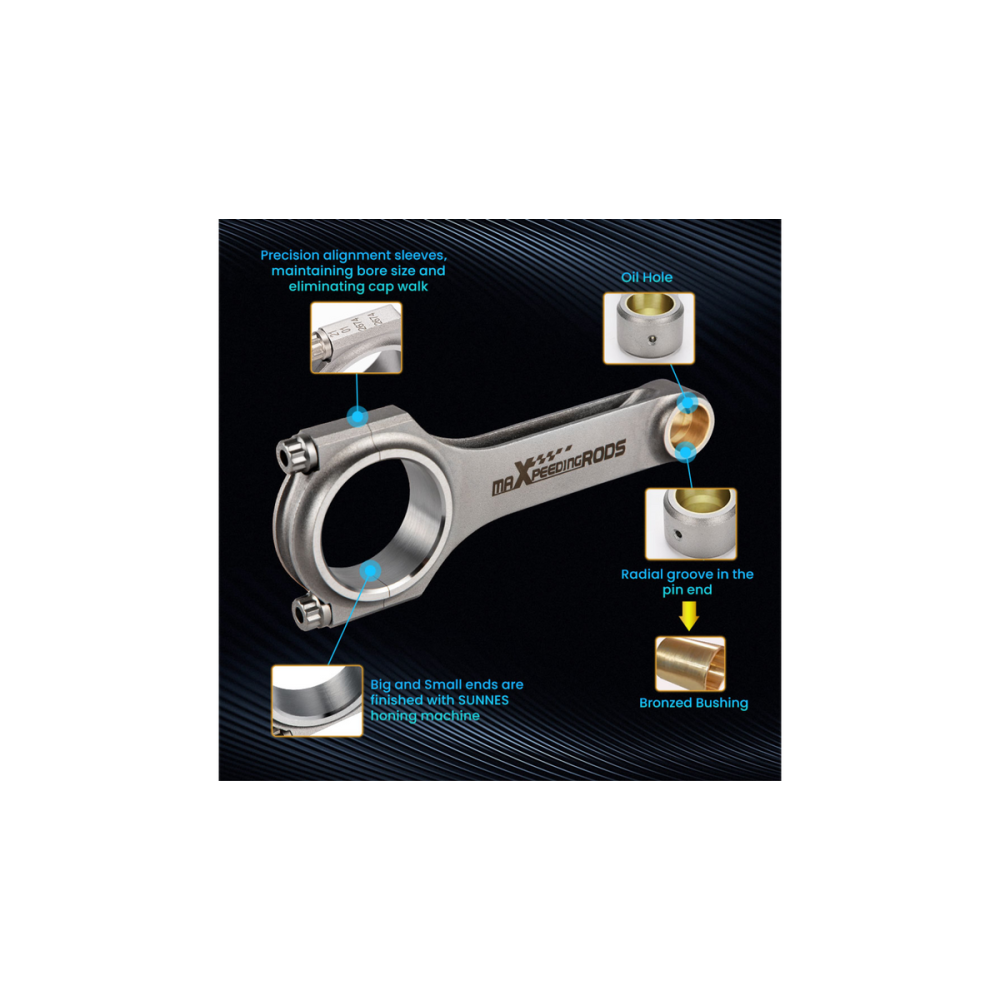

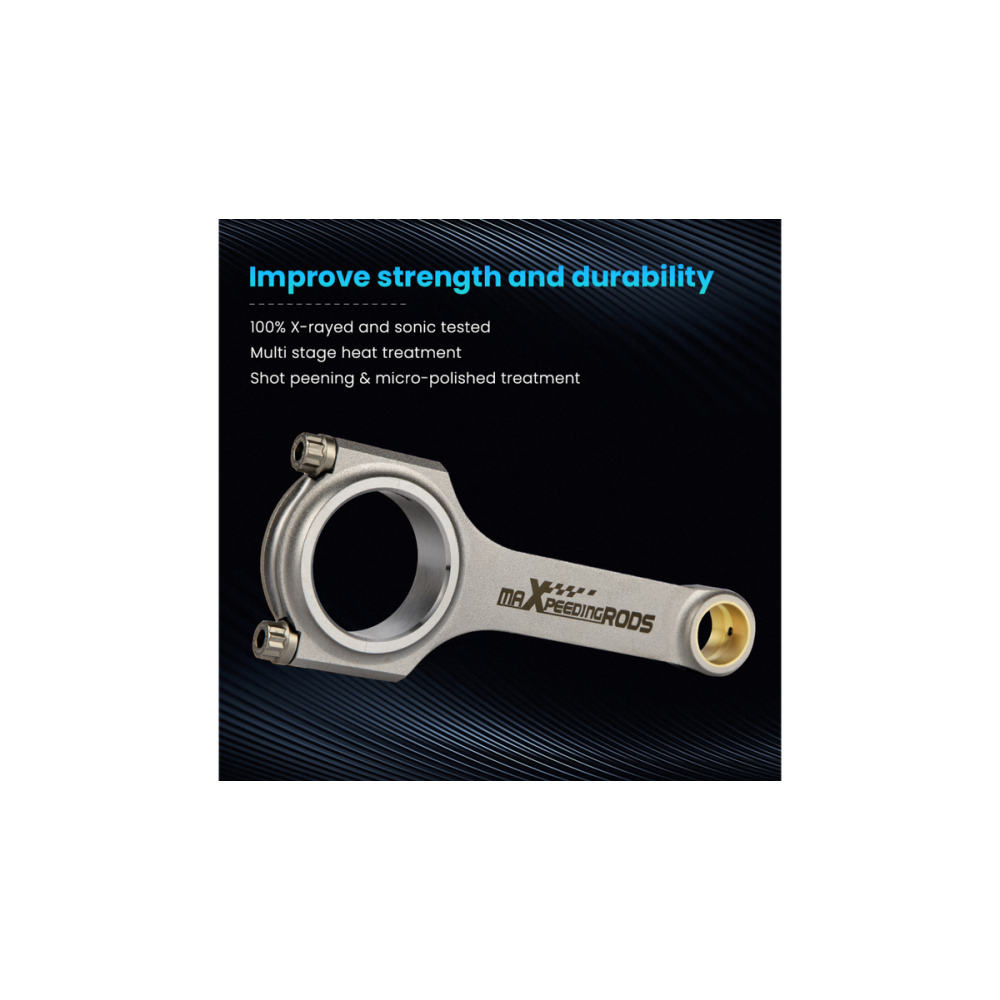

Engineered for high-performance racing, our forged SAE 4340 Chrome Moly Steel con rods deliver unmatched strength and durability. Each rod is meticulously crafted using advanced CNC machining techniques, ensuring precision and reliability. The big and small ends are honed with a SUNNEN machine for optimal finish and fit. Our design incorporates precision alignment sleeves that secure the rod cap, maintaining the integrity of the big end bore and preventing cap walk. Each rod undergoes rigorous quality checks, including 100% X-ray inspection, sonic testing, and magnafluxing to guarantee structural integrity. Multi-stage heat treatment and shot peening processes enhance fatigue resistance, while the included bronzed bushings are designed for compatibility with floating piston pins.

Installation Note

For optimal performance and safety, professional installation is strongly recommended. Please note that installation instructions are not included.
