Technical Specifications

• Type: Forged 4340 Chrome Moly Steel

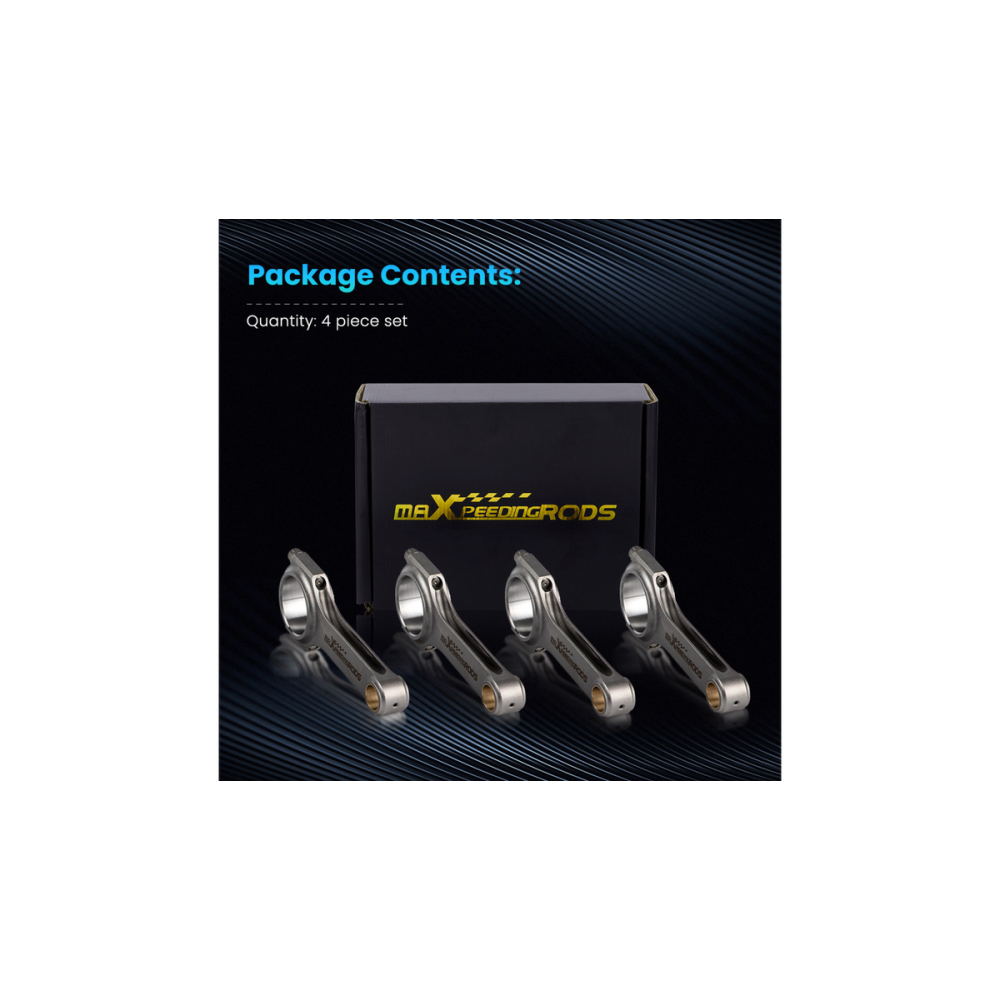

• Con Rods Quantity: 4 Pieces

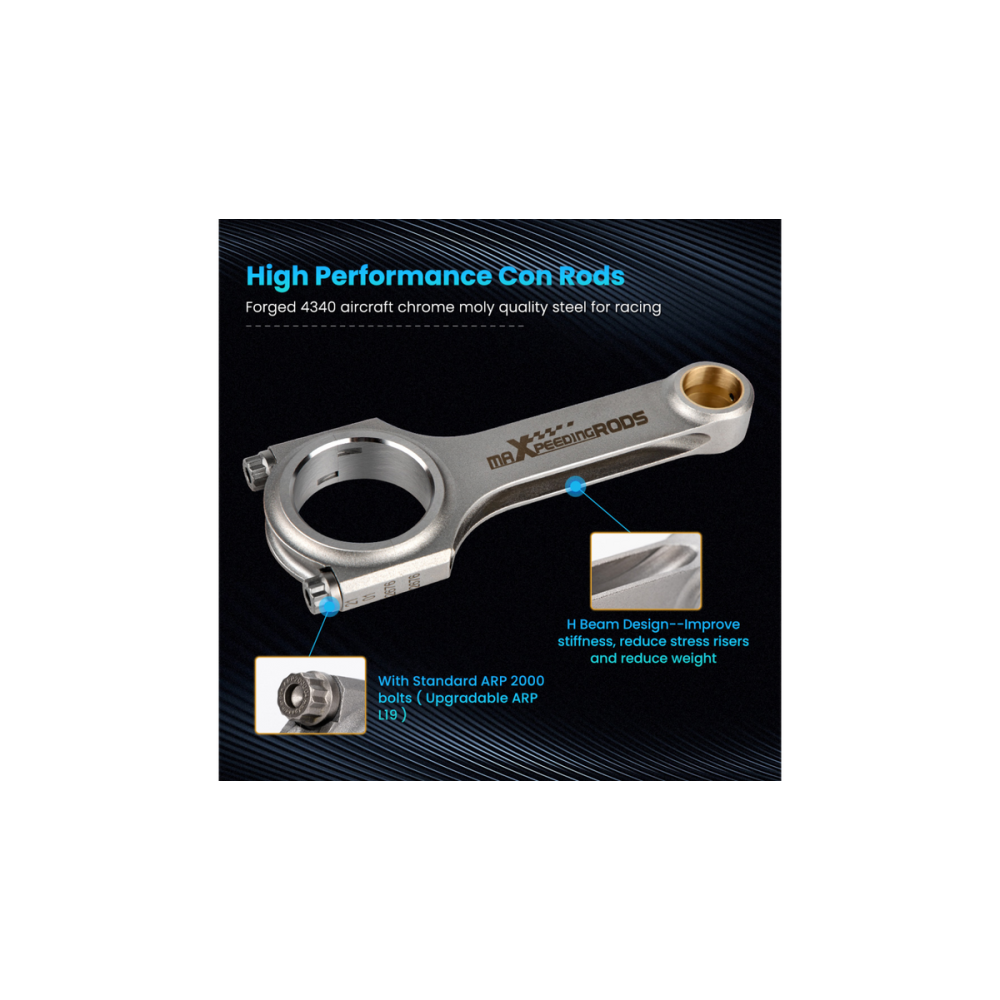

• Included Bolts: ARP 2000 5/16" bolts
• Optional Upgrade: ARP L19 bolts (additional cost)
• Weight Tolerance: Balanced to +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Rating: 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI
• Torque: 48ft ≈ 65 NM
• Maximum RPM: 7000rpm
• Center to Center Length: 134.5mm
• Big End Diameter: 45mm
• Small End Diameter: 19mm
• Big End Width: 22.8mm
• Small End Width: 18mm

Compatibility

• 1988 - 1991 Honda Civic GL DX LX D15B2 SOHC
• 1988 - 1991 Honda Civic Wagon Wagovan/DX D15B2 SOHC
• 1988 - 1991 Honda CRX D15B2 SOHC
• 1990 - 1995 Honda Concerto D15B2 SOHC (European Market)
• 1992 - 1995 Honda Civic LSi Hatch/Saloon (European Market)
• 1992 - 1995 Honda Civic DXi Hatch/Saloon (European Market)

Key Features

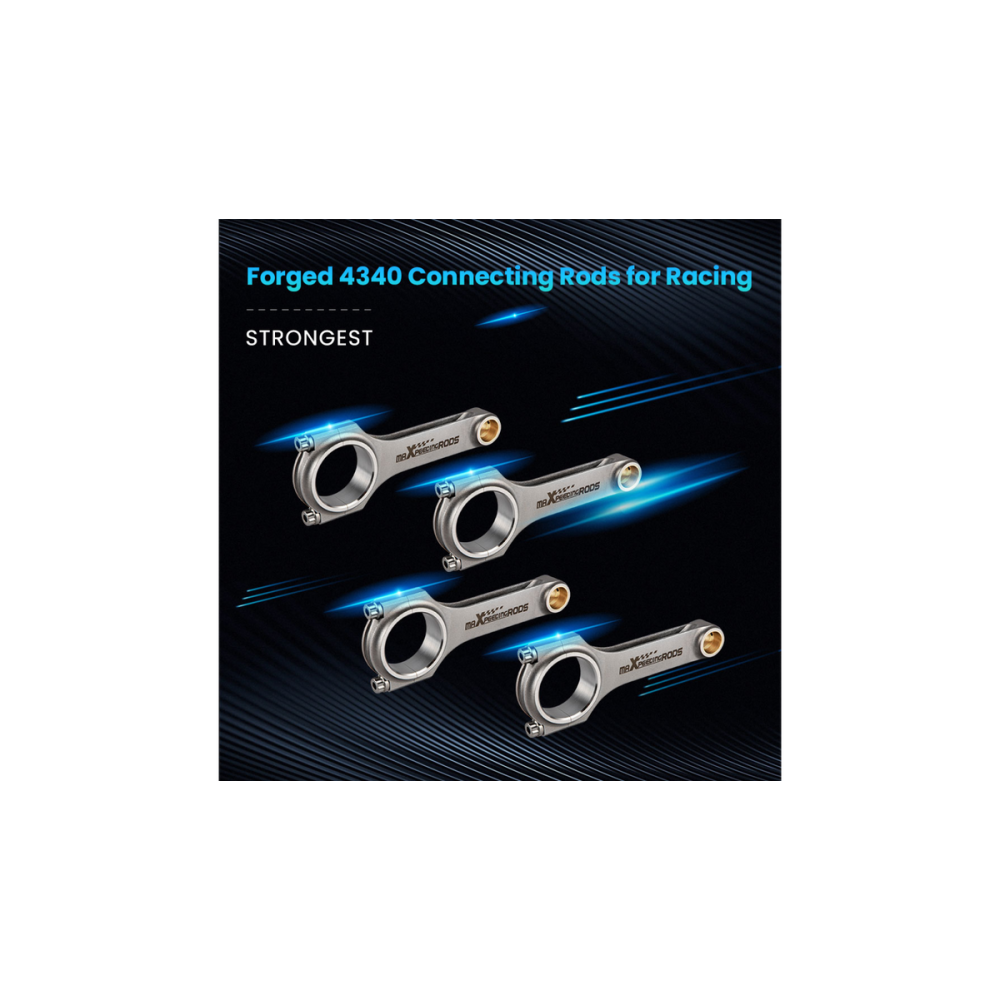

• Constructed from high-strength forged SAE 4340 Chrome Moly Steel, ideal for racing applications.
• CNC machined for precision and consistency.
• All ends are meticulously finished using a SUNNEN honing machine for optimal performance.
• Precision alignment sleeves ensure accurate rod cap positioning, preserving big end bore size and preventing cap walk.

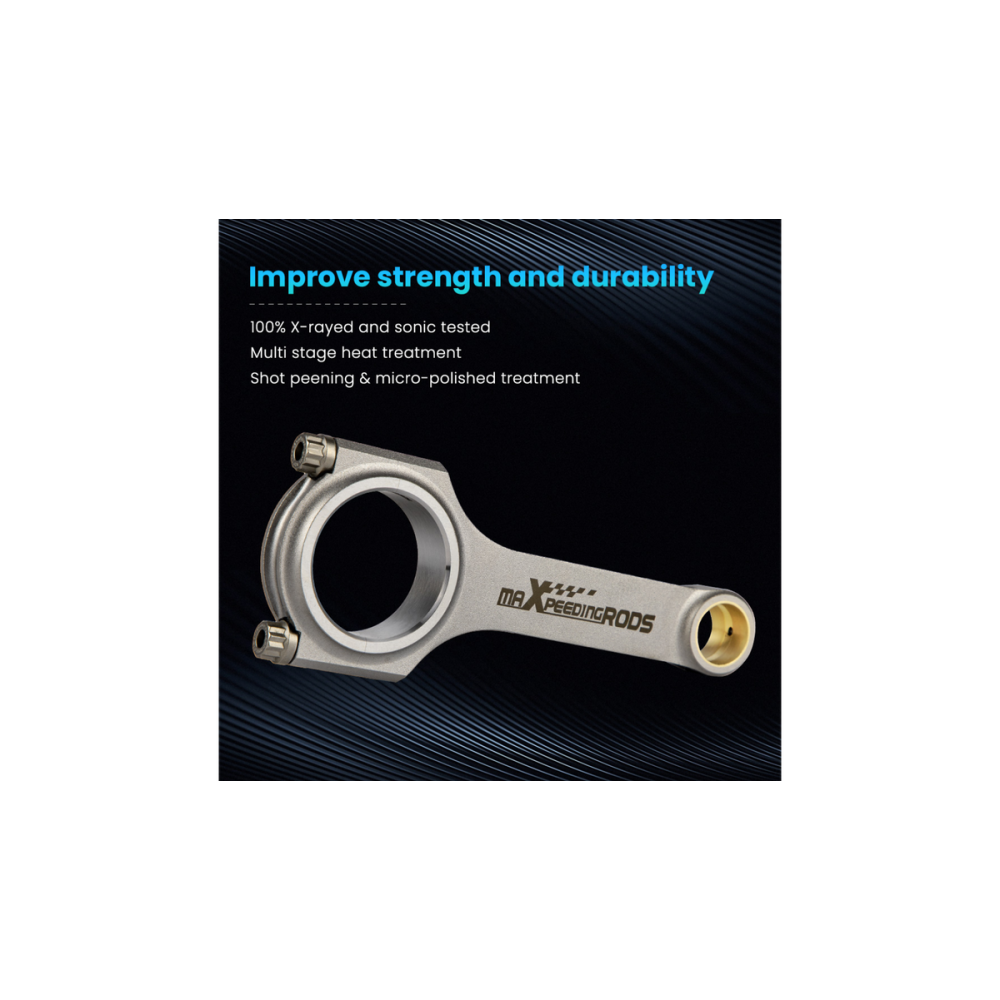

• Each rod undergoes rigorous testing: 100% X-rayed, sonic tested, and magnafluxed for quality assurance.
• Multi-stage heat treatment enhances durability and performance under extreme conditions.
• Shot peened to relieve internal stresses, increasing longevity.
• Includes bronzed bushings designed for floating piston pins.

Installation Notes

Professional installation is strongly recommended as no instructions are provided. Ensure your setup is optimized for maximum performance.
