Technical Specifications

• Application: Compatible with Honda Accord F22 SOHC 2.2 (1990-1997)

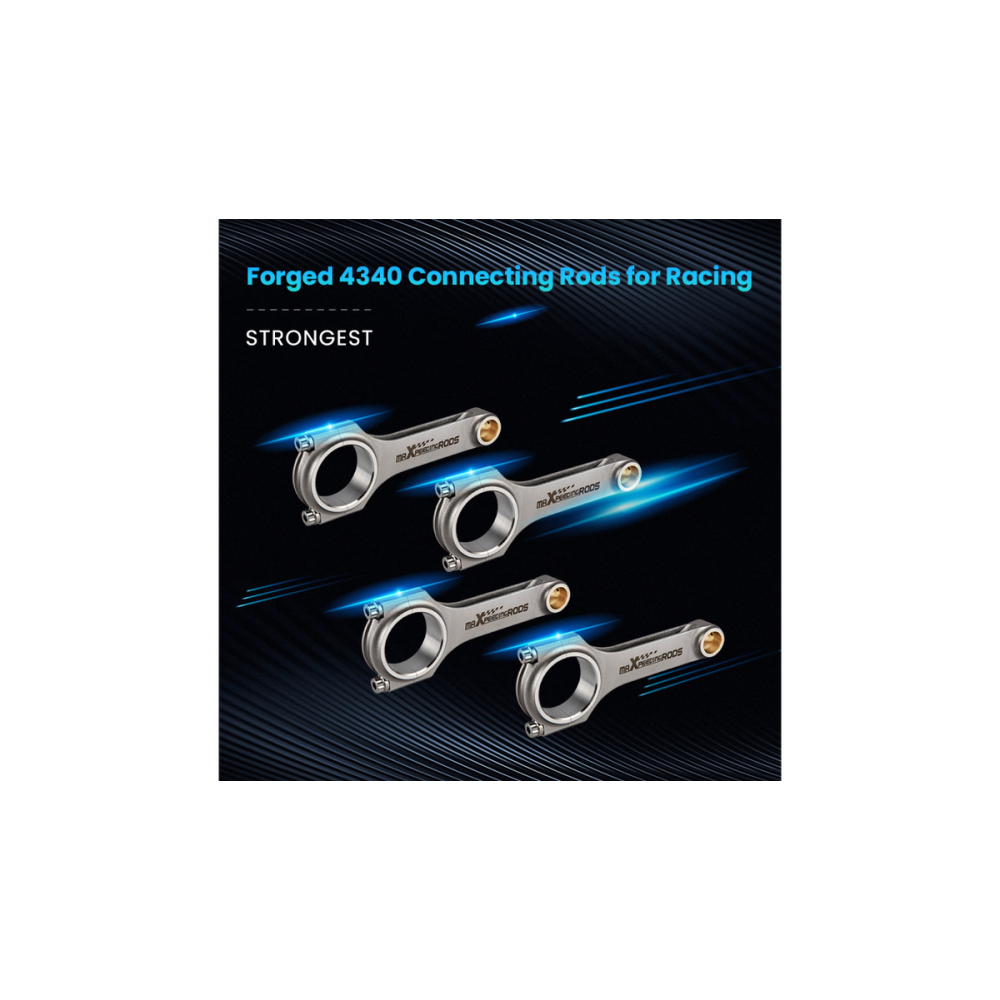

• Material: Forged 4340 Chrome Moly Steel, ideal for racing applications

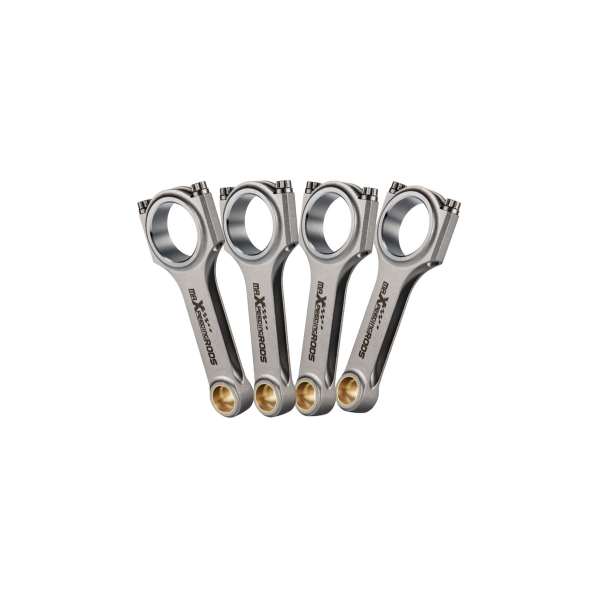

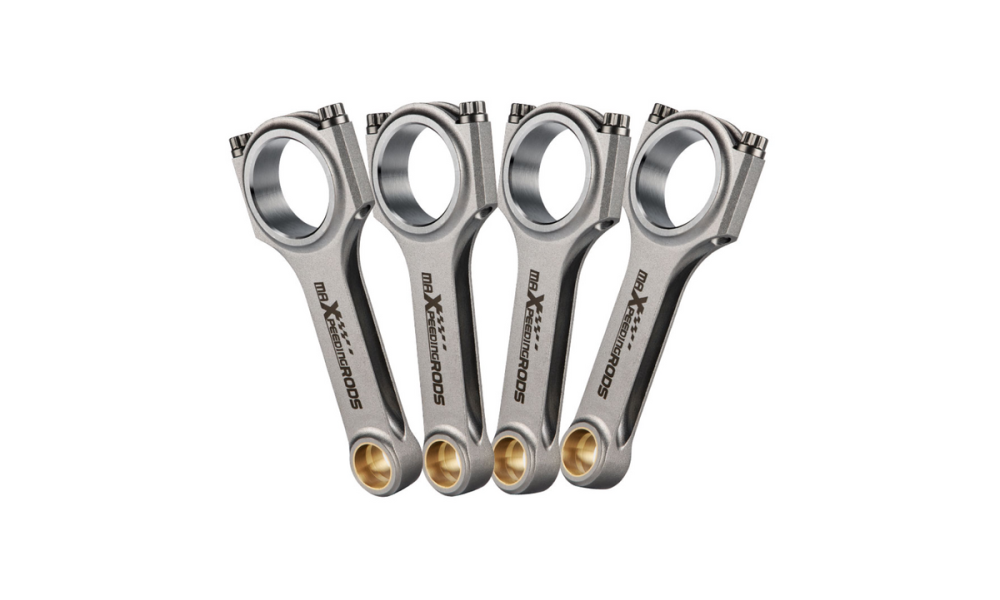

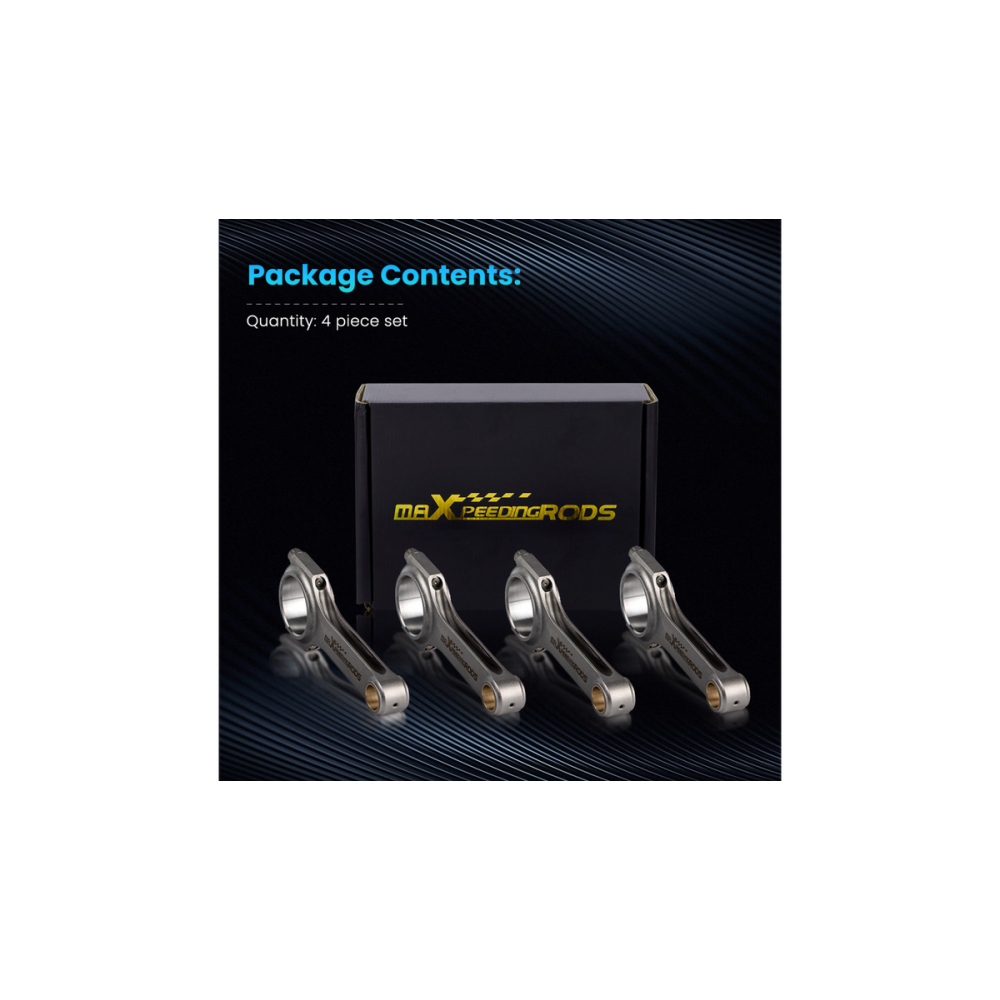

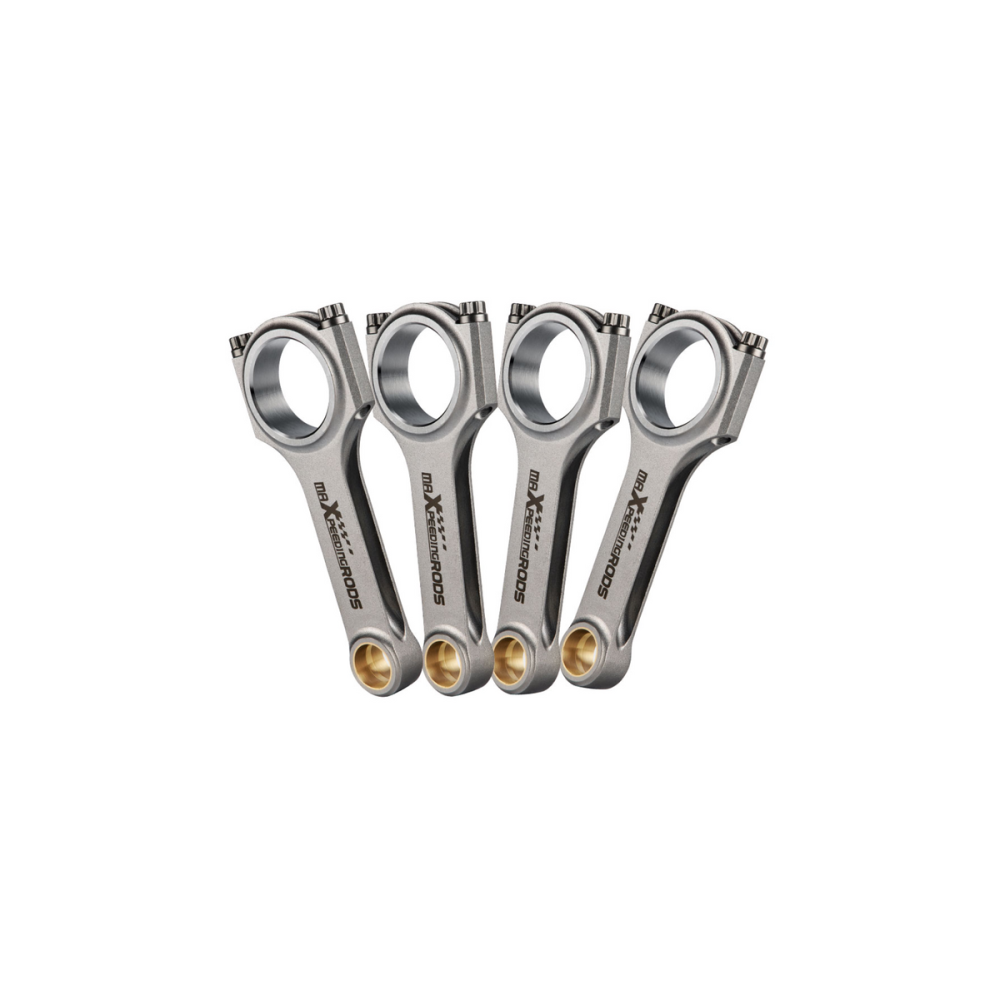

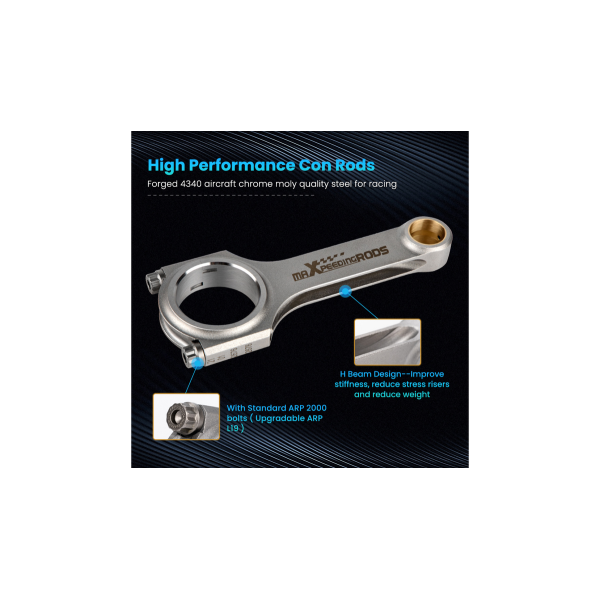

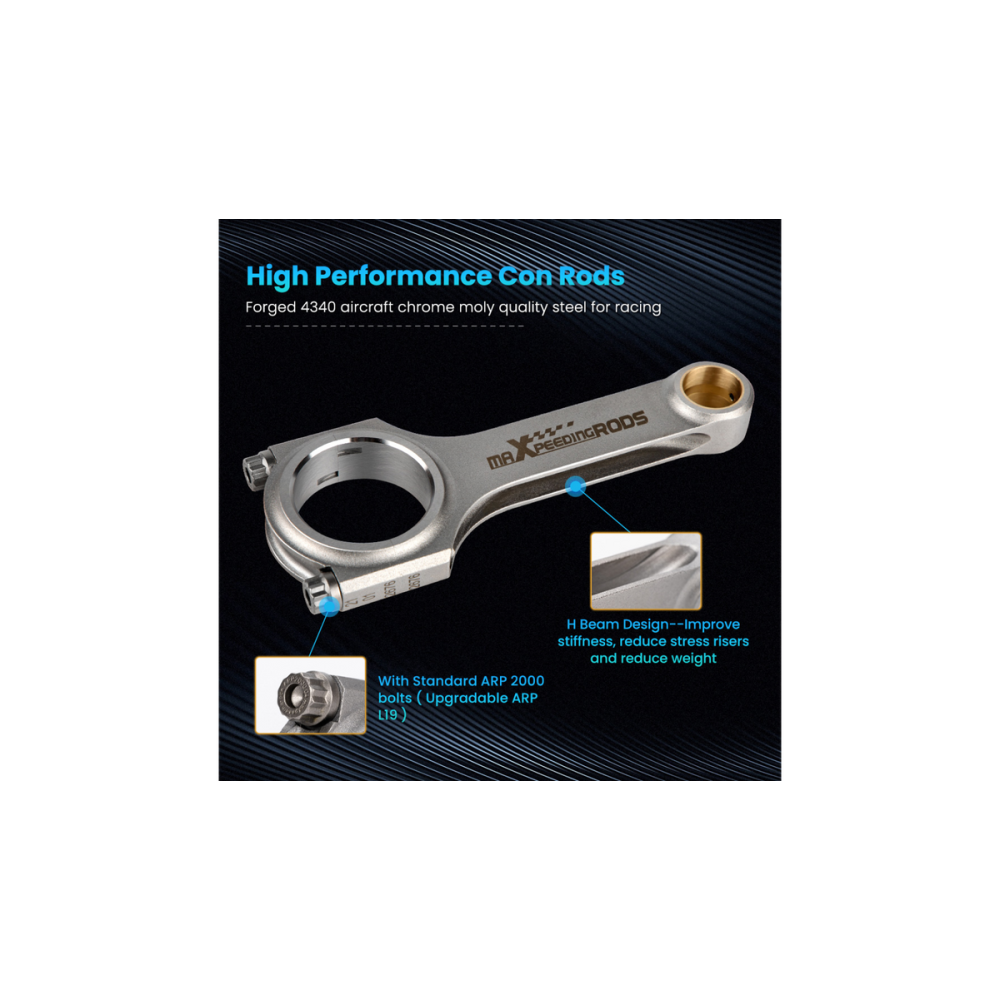

• Con Rods: H-beam design, 4 pieces per set
• Included Bolts: Genuine 3/8" ARP 2000 bolts (upgrade option available for ARP L19 bolts at additional cost)
• Torque Specifications: 200,000/230,000 PSI, Torque: 48ft ≈ 65 NM

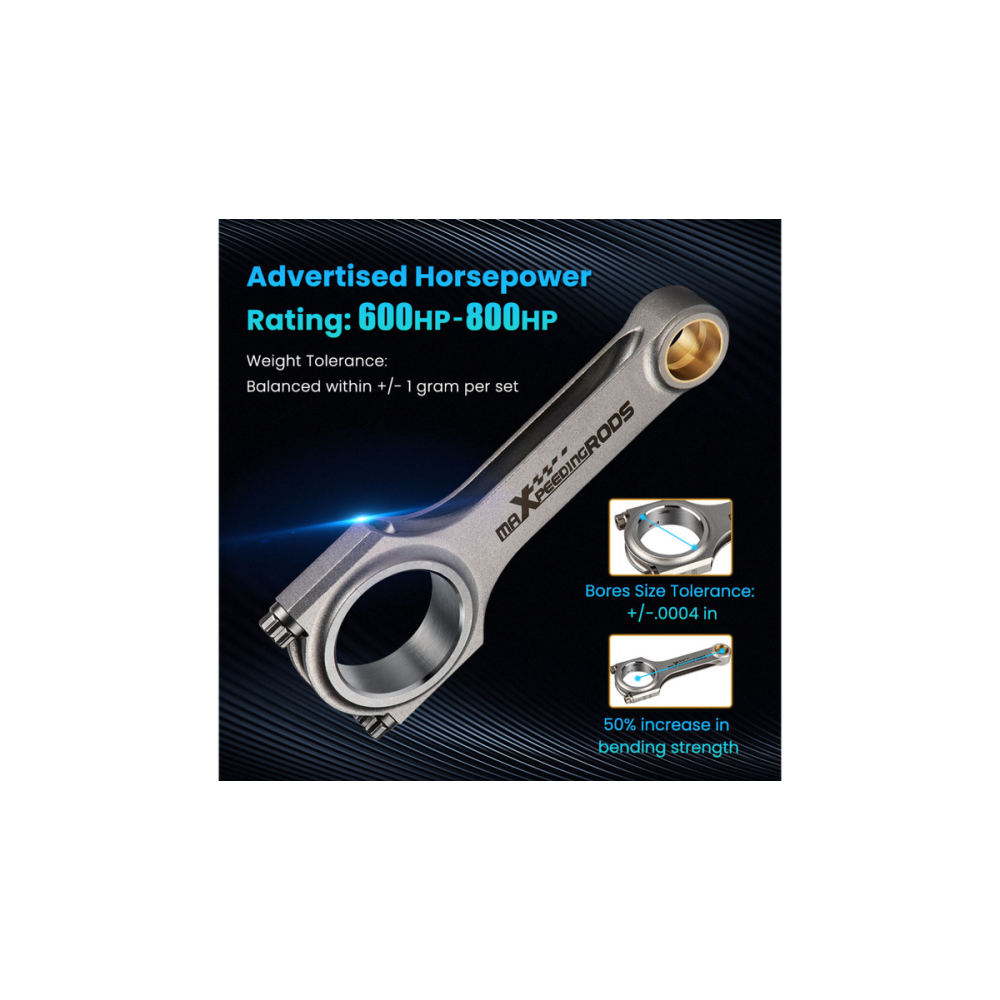

• Power Rating: Capable of supporting 600 to 800 PS per set
• Top RPM: Designed for peak performance up to 9000 RPM
• Tolerance: Balanced to within +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±4/1000mm

Dimensions

• Center-to-Center Length: 142mm
• Big End Diameter: 51mm
• Small End Diameter: 22mm
• Big End Width: 23.75mm
• Small End Width: 23.75mm

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining techniques for optimal fit and finish.

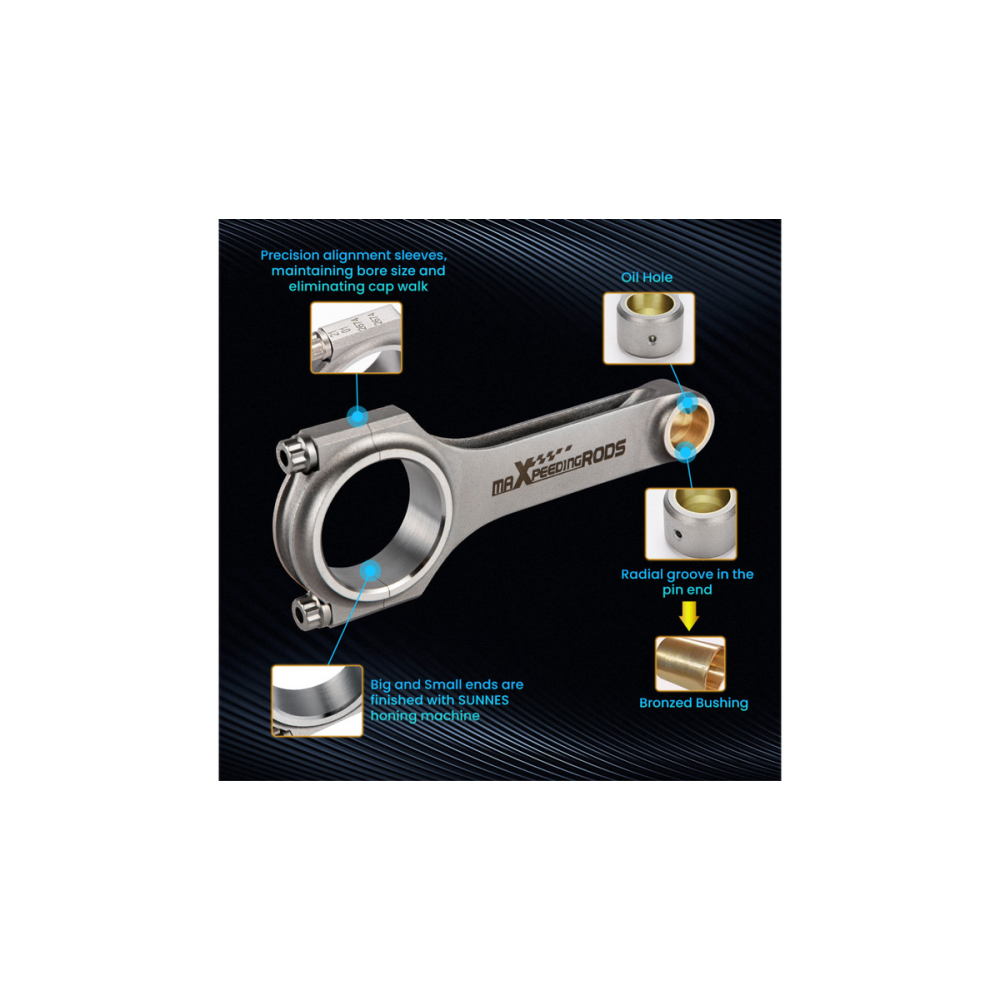

- All ends are meticulously honed with SUNNEN technology to guarantee superior surface quality.
- Equipped with precision alignment sleeves to secure the rod cap, maintaining bore size and preventing cap movement.

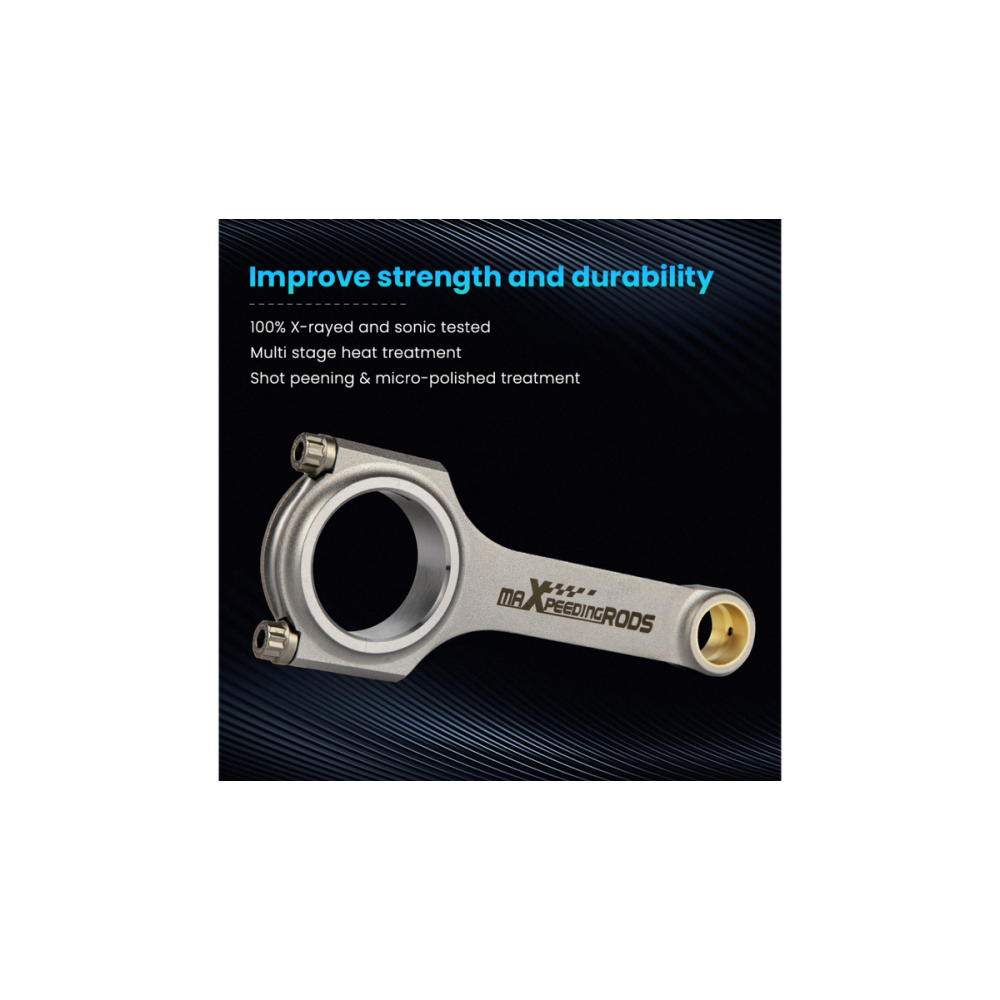

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing to ensure integrity.
- Multi-stage heat treatment enhances strength and resilience under extreme conditions.
- Shot peened to relieve internal stresses, promoting longevity and reliability.
- Supplied with bronzed bushings, perfectly suited for floating piston pins.

Installation Note

- For optimal performance and safety, professional installation is strongly recommended. Please note that installation instructions are not included.
