Technical Specifications

• Application: Fiat Punto GT 1.4 1.6L Turbo

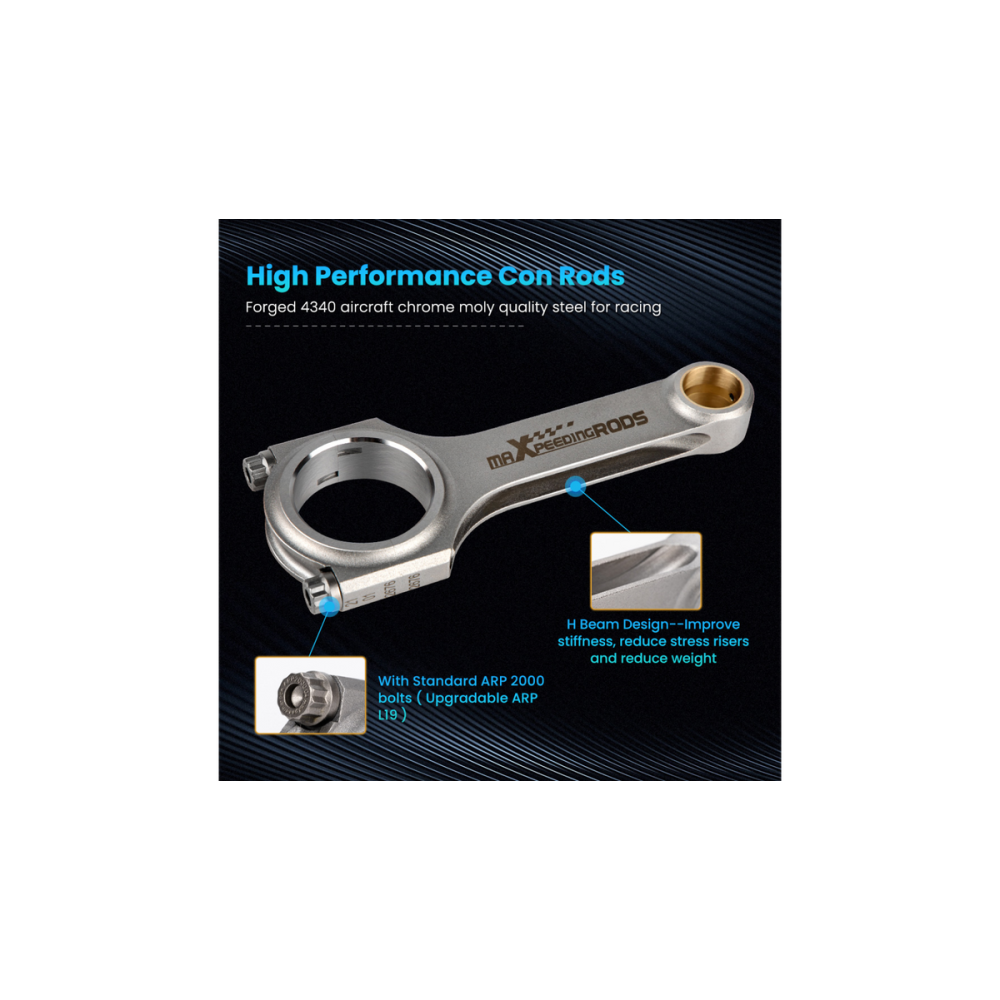

• Material: Forged 4340 Aircraft Chrome Moly Steel

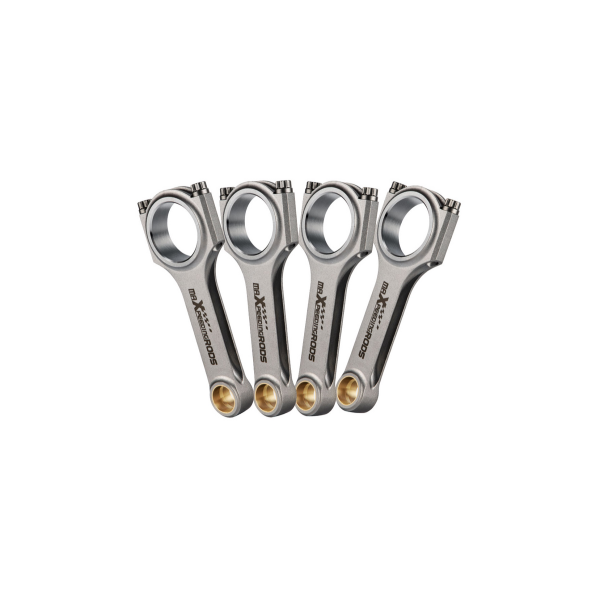

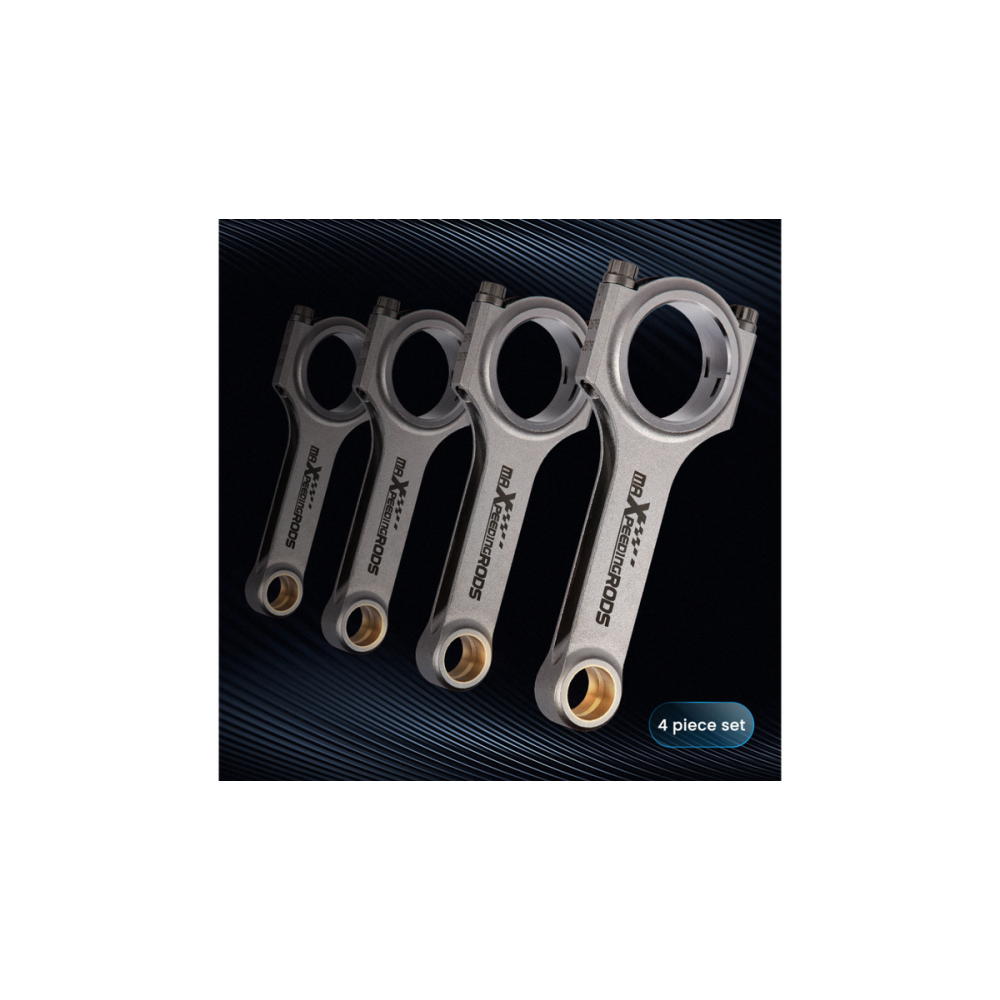

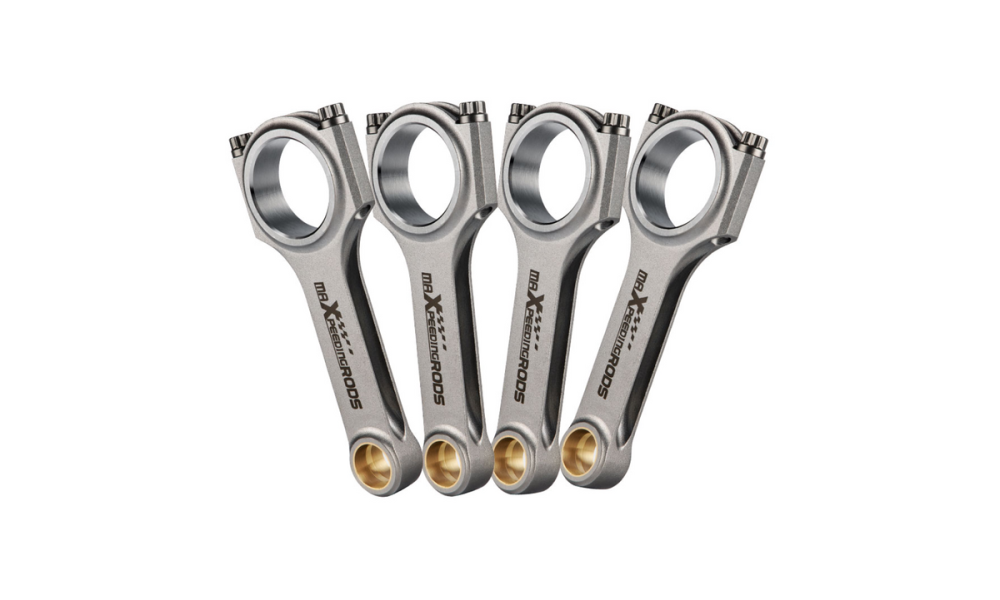

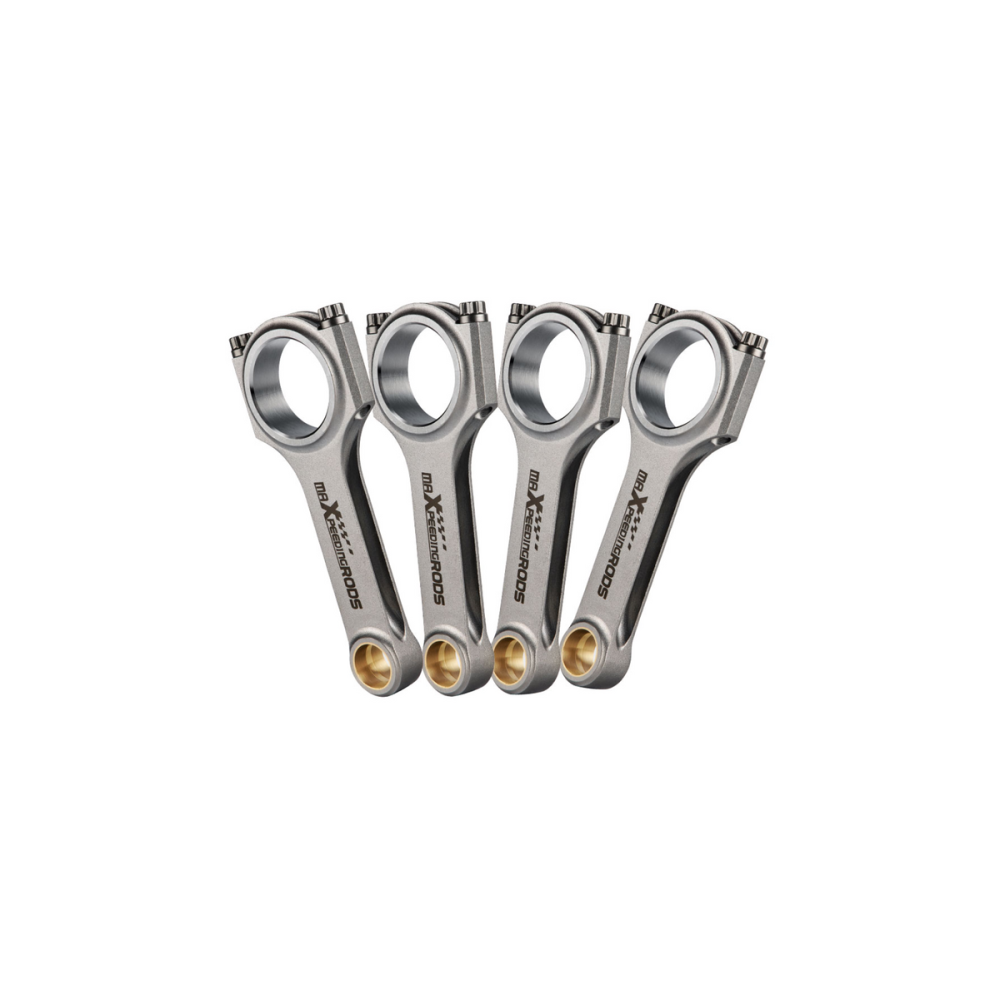

• Con Rods: H-beam design, set of 4
• Included Bolts: ARP 2000, 3/8" size
• Optional Upgrade: ARP L19 bolts (additional cost)
• Weight Tolerance: Balanced to +/- 1 gram
• Piston Bolt Hole Tolerance: ±4/1000mm
• Power Rating: 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI
• Torque: 48ft ≈ 65 NM
• Max RPM: 9000
• Warranty: 1-year against manufacturing defects

Dimensions

• Center to Center Length: 128.52mm
• Big End Diameter: 48.63mm
• Small End Diameter: 22mm
• Big End Width: 25.40mm
• Small End Width: 25.40mm

Product Features

Engineered for performance, our forged SAE 4340 Chrome Moly Steel con rods deliver unmatched strength and durability, making them ideal for racing applications. Each rod is meticulously crafted using CNC machining, ensuring precision and consistency. The big and small ends are finished with a SUNNEN honing machine for optimal fit and performance.

Our design incorporates precision alignment sleeves that secure the rod cap, maintaining the big end bore size and preventing cap walk. Each rod undergoes rigorous quality checks, including 100% X-ray inspection, sonic testing, and magnafluxing to ensure integrity. Multi-stage heat treatment and shot peening processes enhance durability and stress relief, while the included bronzed bushing is designed for a perfect fit with floating piston pins.

Installation Note

For optimal performance and safety, professional installation is highly recommended. Please note that installation instructions are not included.
