Technical Specifications

• Material: Forged SAE 4340 Chrome Moly Steel
• Con Rod Type: H-beam

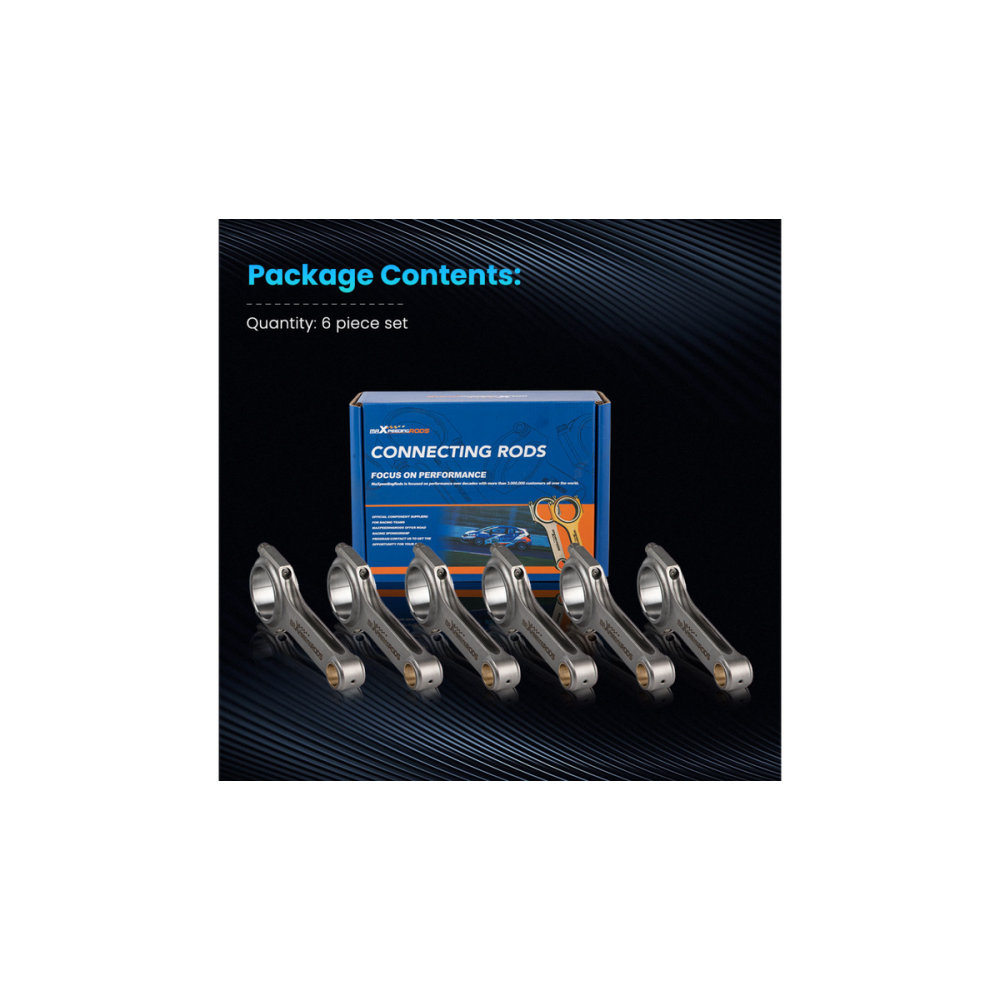

• Quantity: 6 pieces
• Center to Center Length: 119.5mm
• Big End Diameter: 51mm
• Small End Diameter: 21mm
• Big End Width: 21.8mm
• Small End Width: 21.8mm
• Power Rating: 600hp to 800hp per set
• Torque Strength: 200,000 to 230,000 PSI
• Top RPM: 7000-9000rpm
• Weight Tolerance: Balanced to +/- 1 gram
• Piston Bolt Hole Tolerance: +-4/1000mm
• Included Bolts: ARP 2000 (3/8") with optional upgrade to ARP L19

Application

• Designed for Nissan RB26, RB28, and Skyline R32, R33, R34 Stroker kits
• Compatible with R32/R33/R34 2.5 GTS, 2.6 GTR, RB25DET, RB26DET, and RB28DET models

Features

- Crafted from high-strength forged SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing applications.
- Precision-engineered using advanced CNC machining for optimal fit and finish.
- All ends are meticulously honed with SUNNEN technology for superior surface quality.
- Equipped with precision alignment sleeves to secure the rod cap, preserving big end bore size and preventing cap movement.
- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnaflux inspection.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, promoting longevity.
- Supplied with bronzed bushings designed for floating piston pins.

Installation Note

- Professional installation is strongly recommended as no instructions are included with the product.
