Technical Specifications

• Type: Forged 4340 Chrome Moly Steel

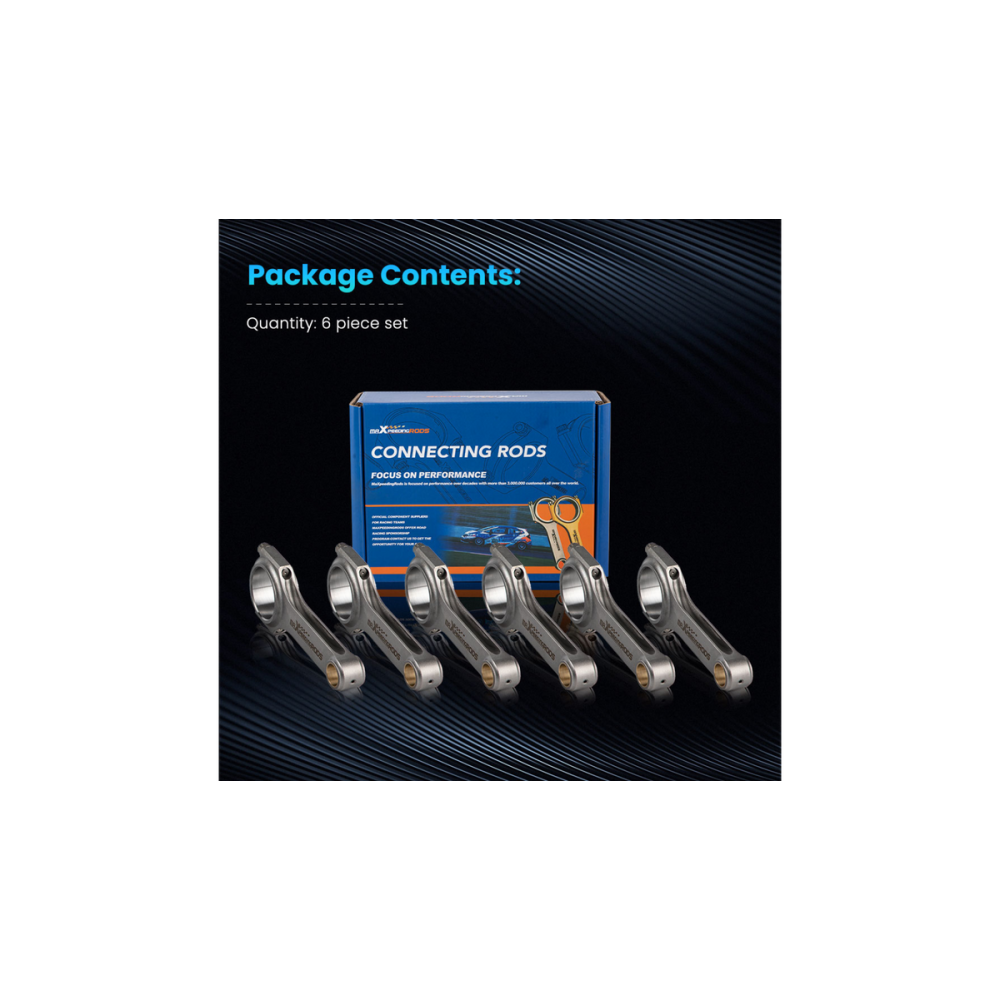

• Con Rods Quantity: 6 Pieces
• Included Bolts: Genuine ARP 2000 3/8" (Upgrade to ARP L19 available at extra cost)
• Weight Tolerance: Balanced to +/- 1 gram
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: 600hp to 800PS per set
• Fastening Strength: 220,000/230,000 PSI
• Torque Rating: 48ft ≈ 65 NM
• Max RPM: 9000rpm
• Dimensions: Center to center length: 135mm, Big end diameter: 48mm, Small end diameter: 22mm, Big end width: 21.9mm, Small end width: 21.9mm

Application Compatibility

• BMW 328i, 528i E36, E46 M52B28
• BMW 3 Series E36 (1990-2000) 325i, 328i
• BMW 3 Series E46 (1998-2007) 325i, 328i, 330i, 325 Ci, 328 Ci, 330 Ci, 325 xi, 328 xi, 330 xi
• BMW 5 Series E12 (1972-1981) Saloon 528i
• BMW 7 Series E38 (1994-2001) Saloon 728i, 728i iL
• BMW Z3 E36 (1997-2003) Coupe 2.8i
• BMW Z3 Roadster E36 (1995-2003) Convertible 2.8i

Key Features

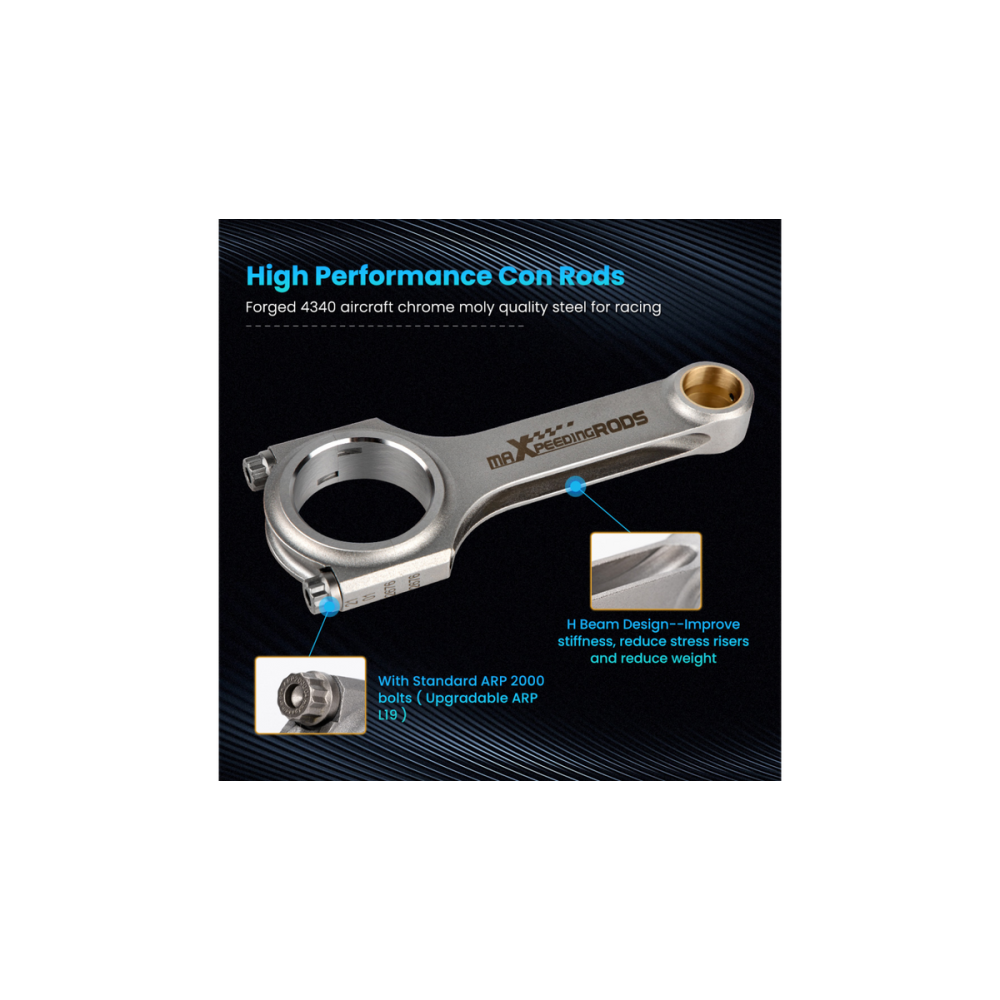

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing applications.
- Precision-engineered using advanced CNC machining techniques.
- All ends are meticulously finished with SUNNEN honing for optimal performance.
- Features precision alignment sleeves to secure the rod cap, preserving big end bore size and preventing cap walk.

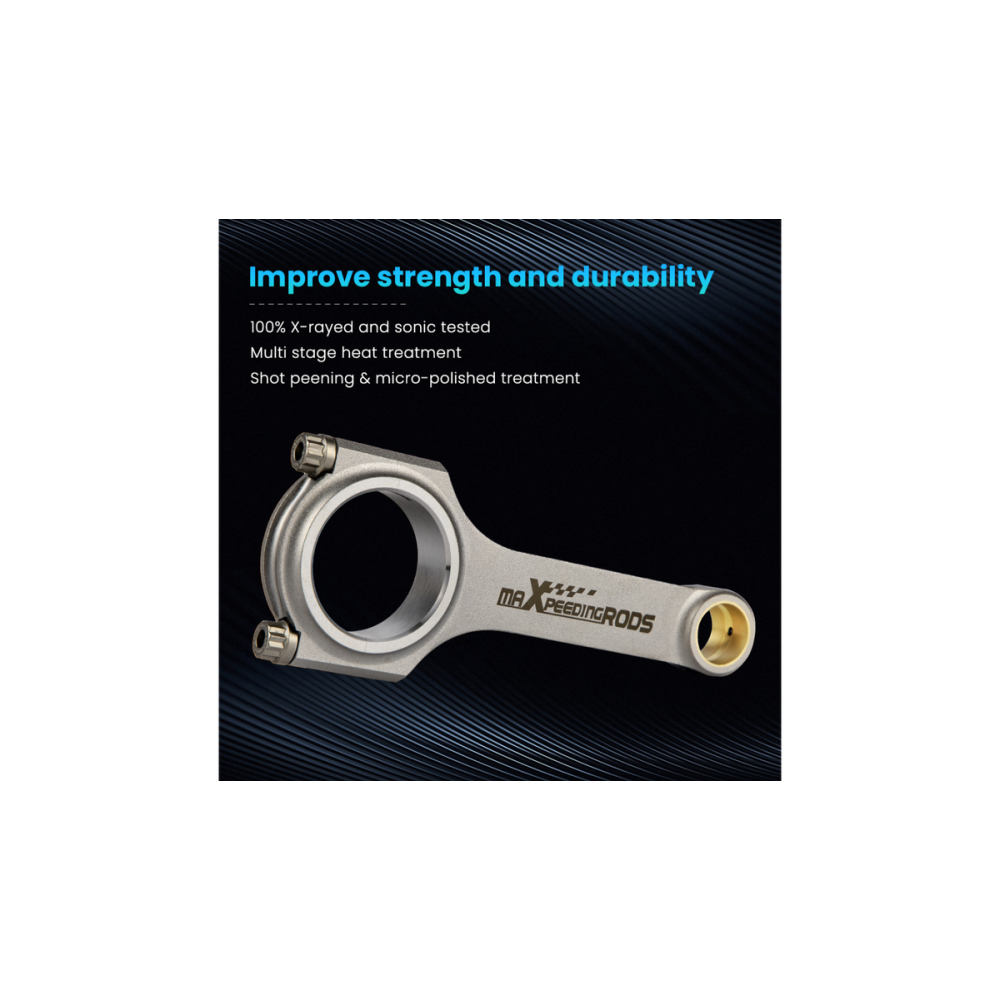

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, ensuring longevity.
- Supplied with bronzed bushings compatible with floating piston pins.

Installation Note

For optimal performance and safety, professional installation is strongly recommended. (Installation instructions are not included.)
