Technical Specifications

• Application: Compatible with Mazda 626 (GF/GW) 1997-2002, Mazda MX-6 (1997, select versions), Mazda Capella (GF) 1997-2002 (JDM), Mazda Premacy (CP) 1999-2005, and Mazda MPV (LW) 1999-2002 (FWD).
• Material: Forged 4340 aircraft-grade chrome moly steel, engineered for racing applications.

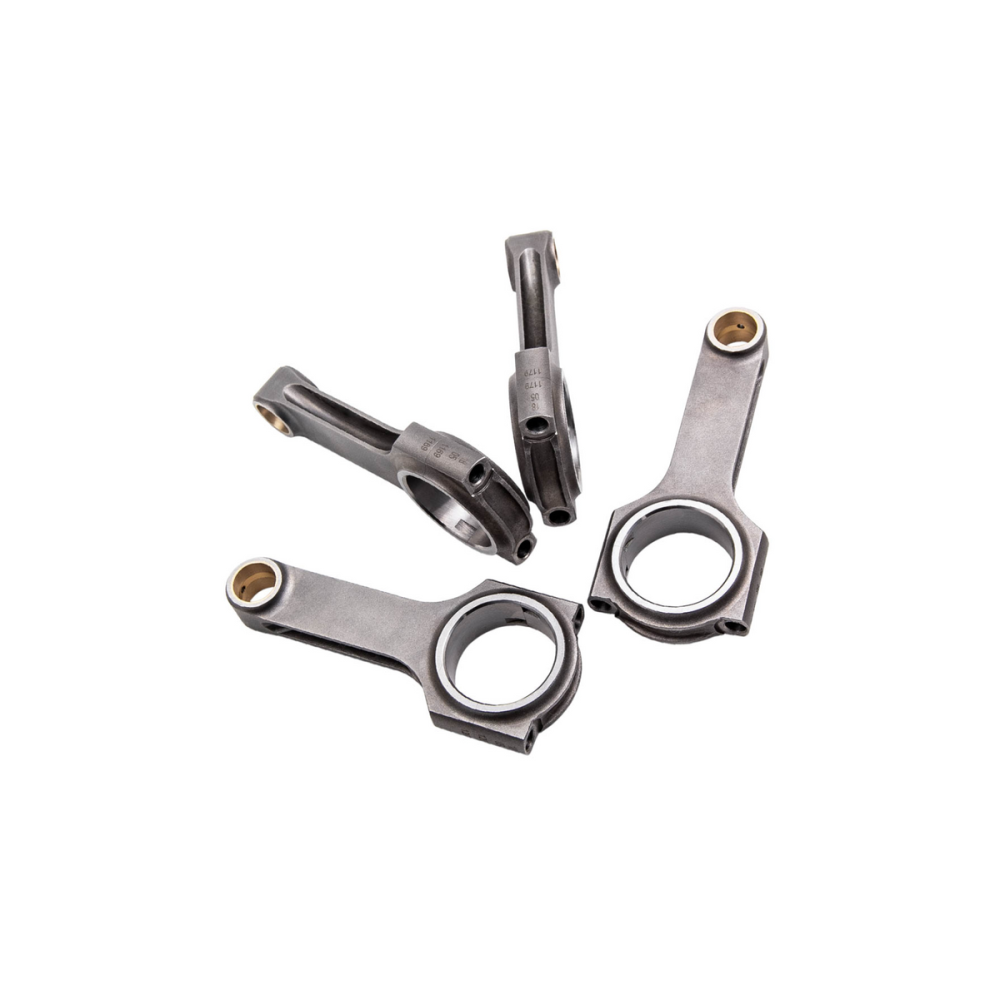

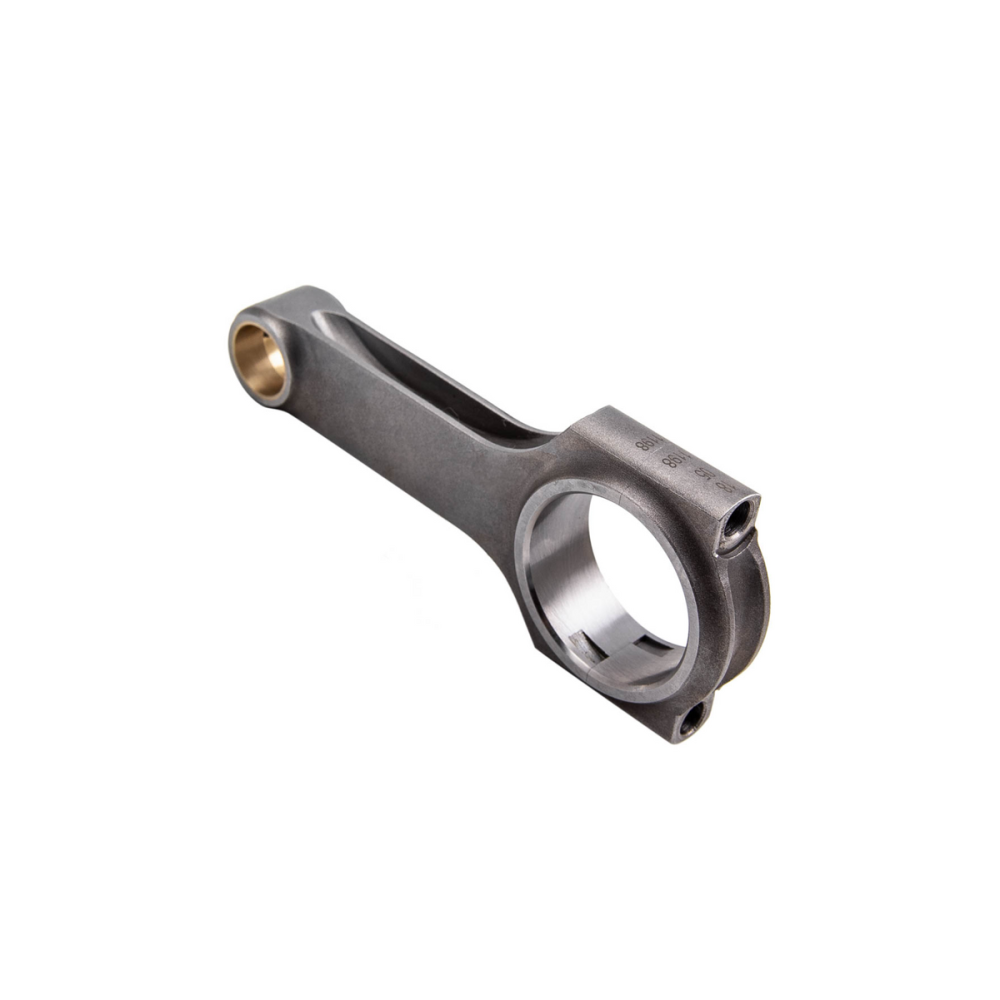

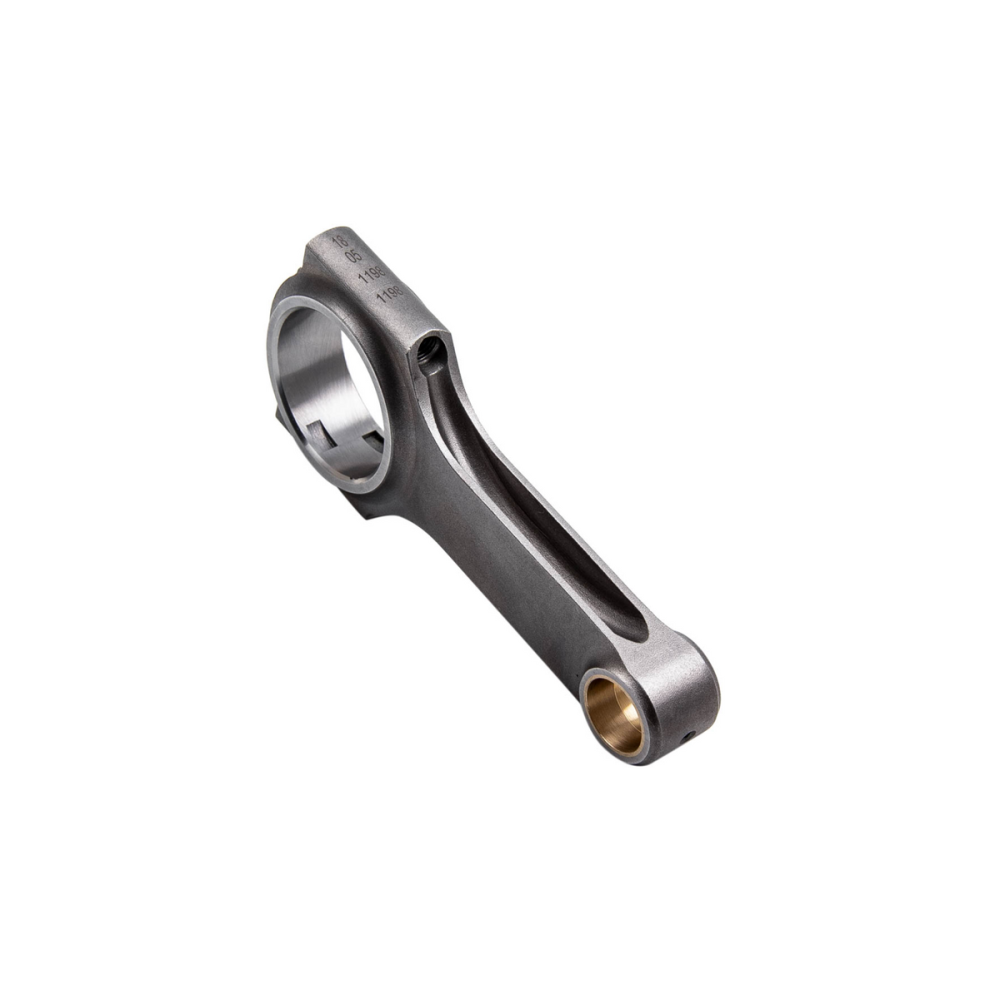

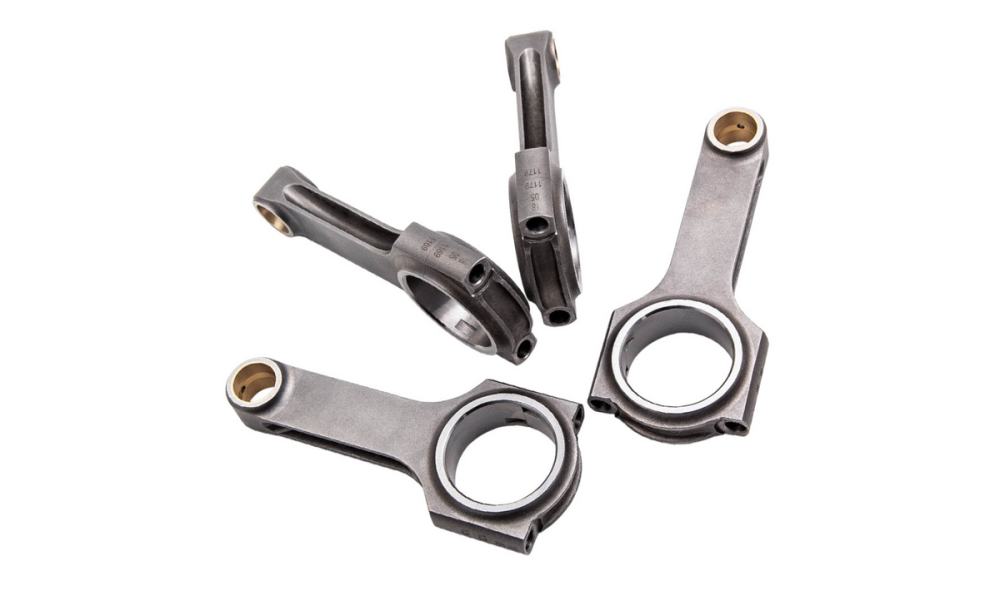

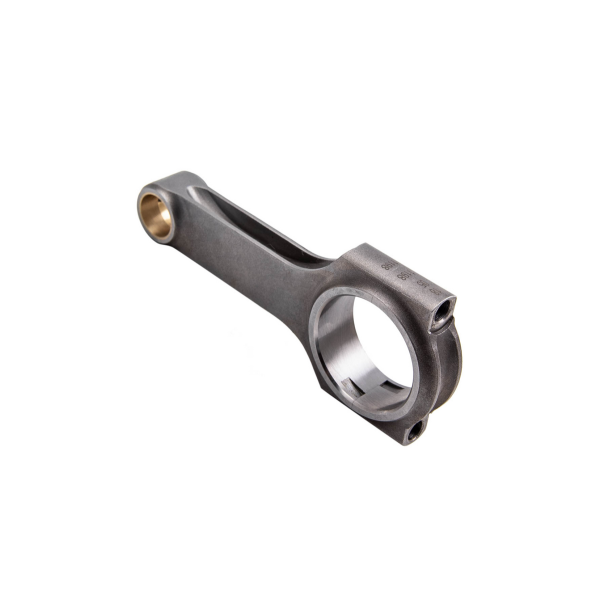

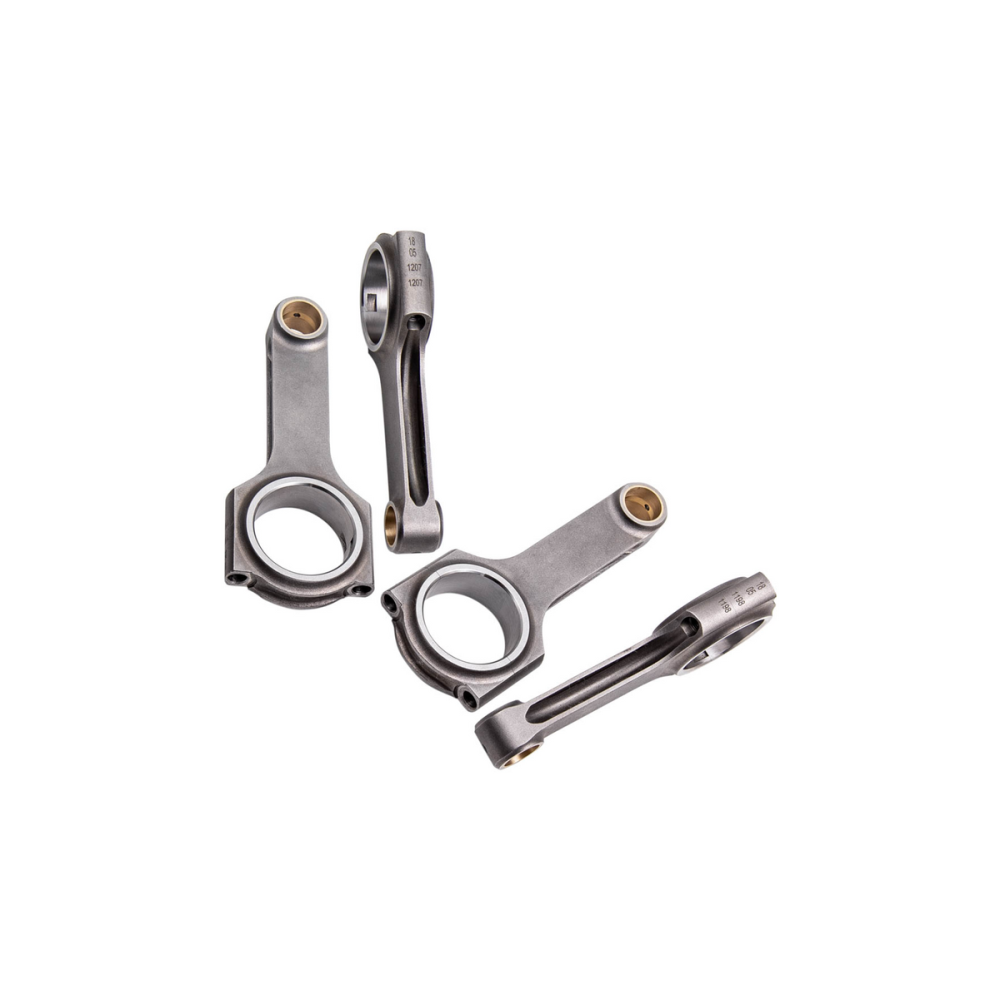

• Con Rods: H-beam design, 4 pieces per set.
• Fasteners: Includes genuine ARP 2000 bolts; optional upgrade to ARP L19 bolts available at an additional cost.
• Torque Specs: 48 ft-lbs (approximately 65 Nm).
• Power Rating: Capable of handling 600hp to 800PS per set.
• Strength: Fastening strength rated at 220,000 to 230,000 PSI.
• RPM Range: Optimal performance between 7000-9000 RPM.
• Tolerance: Balanced to within +/- 1 gram per set; piston bolt hole tolerance of ±4/1000mm.

Dimensions

• Center-to-Center Length: 135mm
• Big End Diameter: 51mm
• Small End Diameter: 19mm
• Big End Width: 21.79mm
• Small End Width: 21.79mm

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining technology.
- All ends are meticulously finished with SUNNEN honing for superior accuracy.

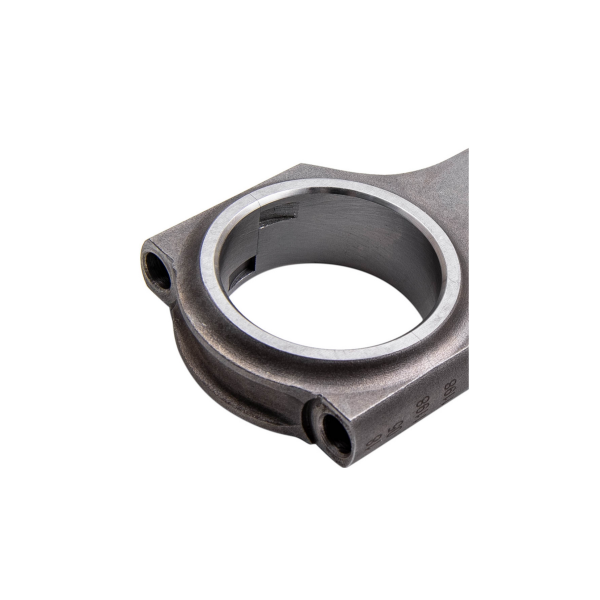

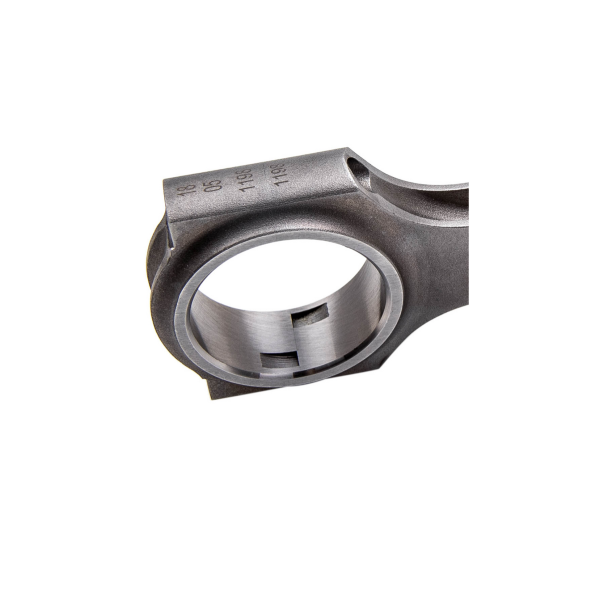

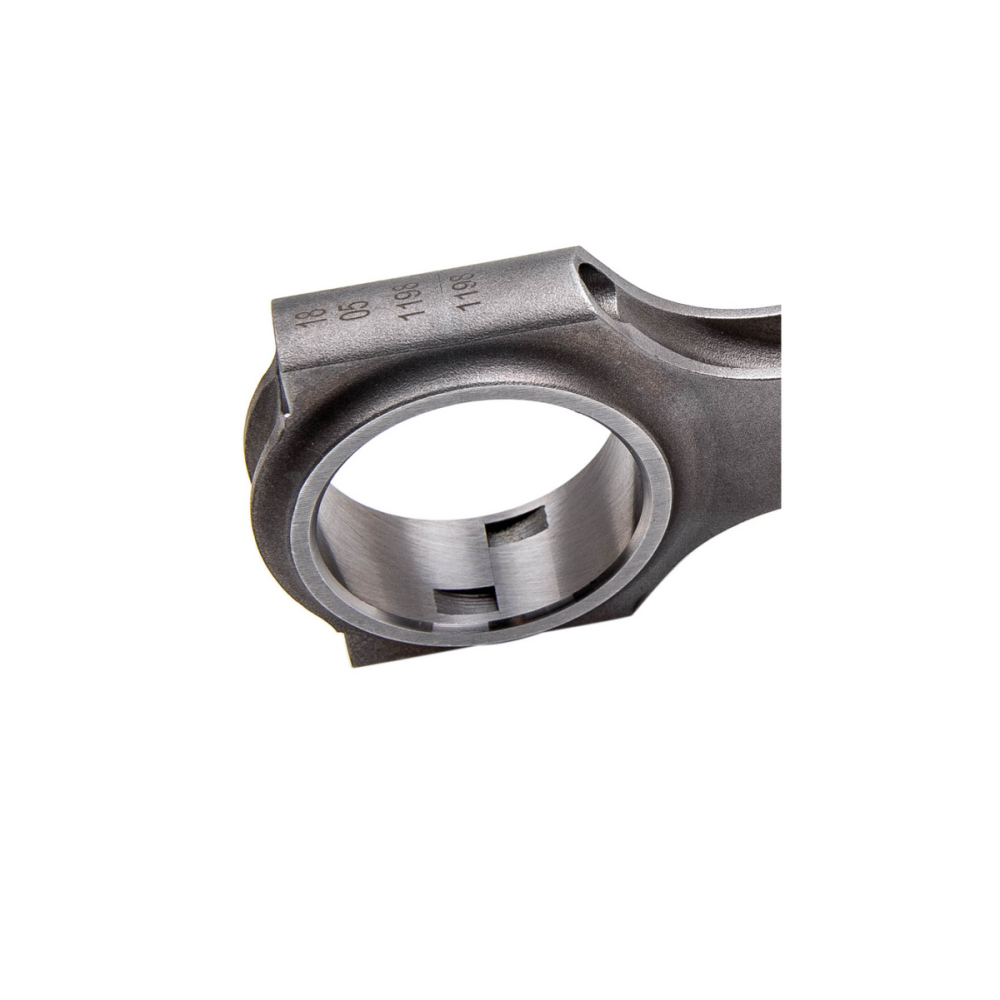

- Features precision alignment sleeves that secure the rod cap, preserving big end bore size and preventing cap walk.
- Each rod undergoes rigorous quality checks, including 100% X-ray inspection, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, ensuring longevity under extreme conditions.

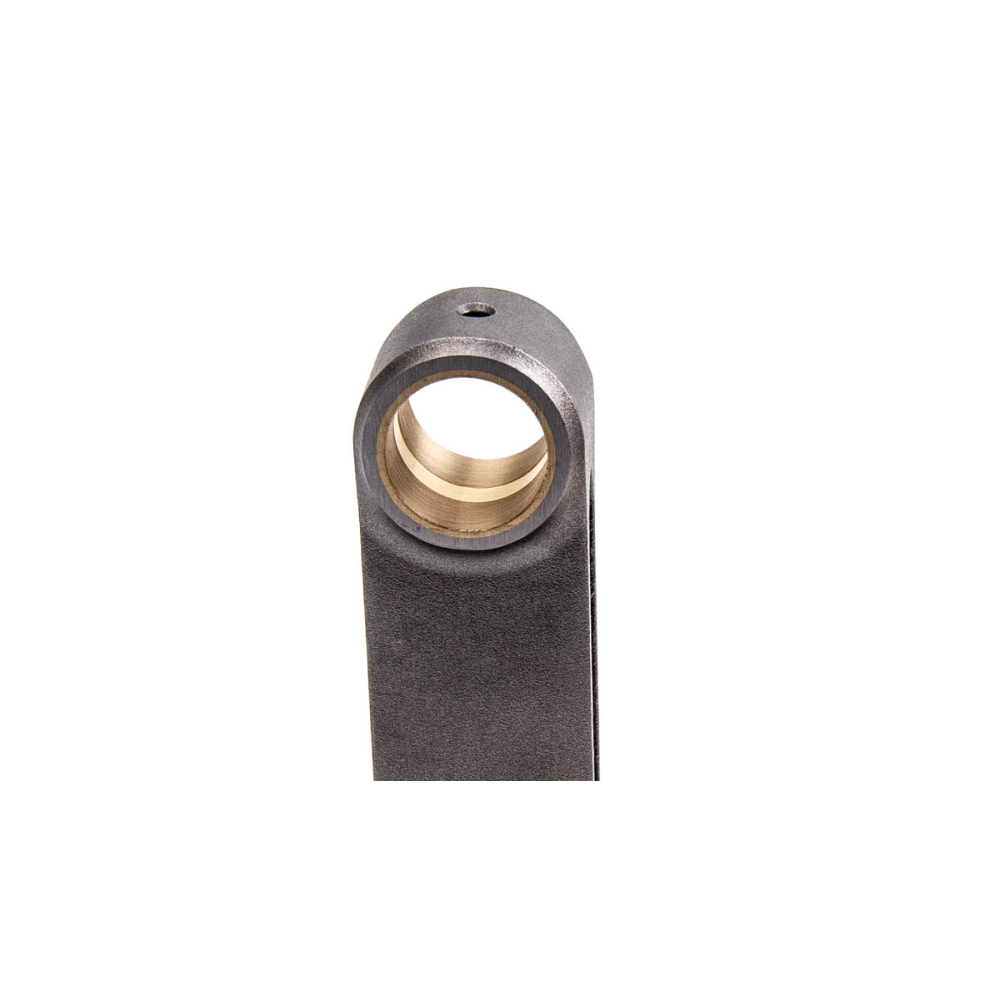

- Supplied with bronzed bushings designed for floating piston pins, optimizing performance.

Installation Note

- Professional installation is strongly recommended as no instructions are included with the product.
