Technical Specifications

• Application: Designed for Peugeot 106 and Citroen Saxo Kit Car with TU5J4 1.6L engine

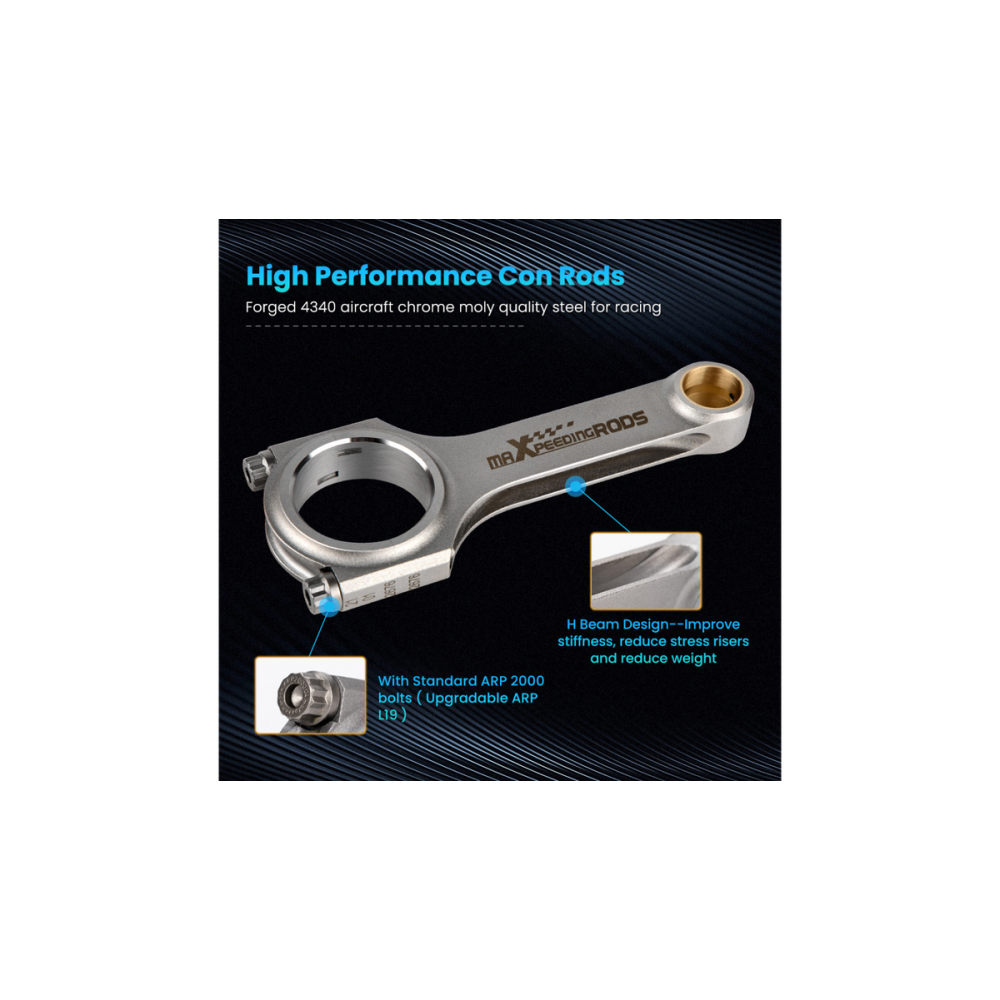

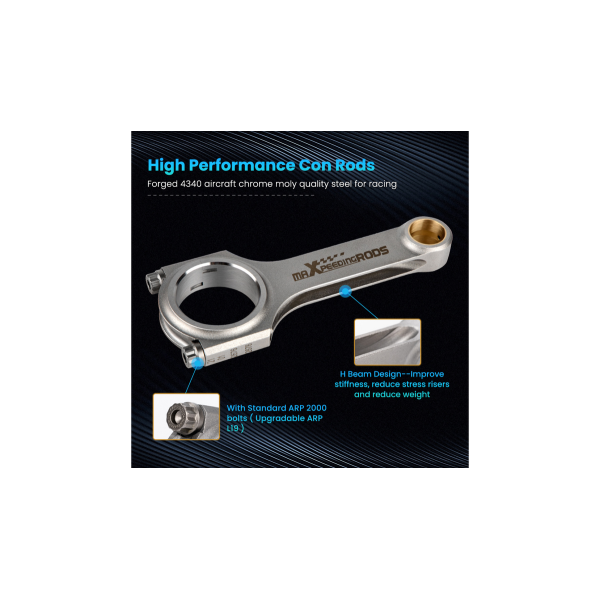

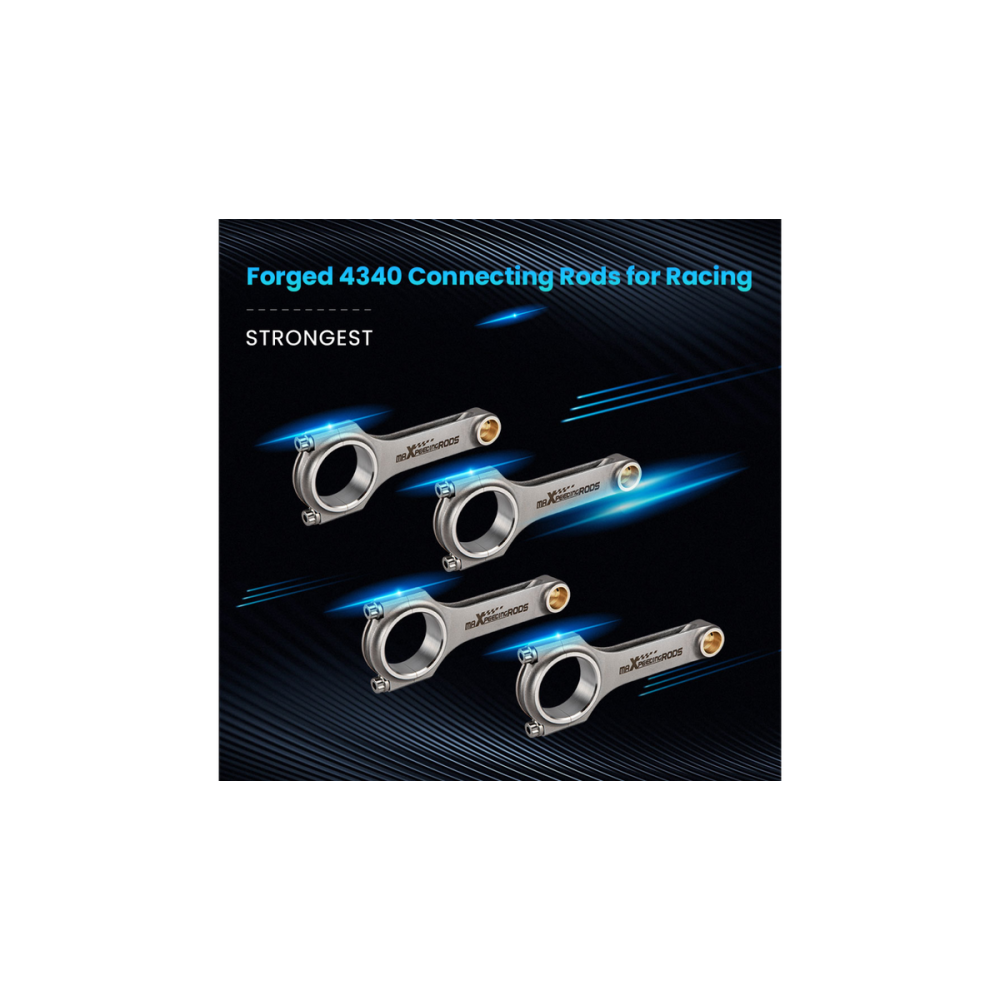

• Material: Forged 4340 chrome moly steel, engineered for racing applications

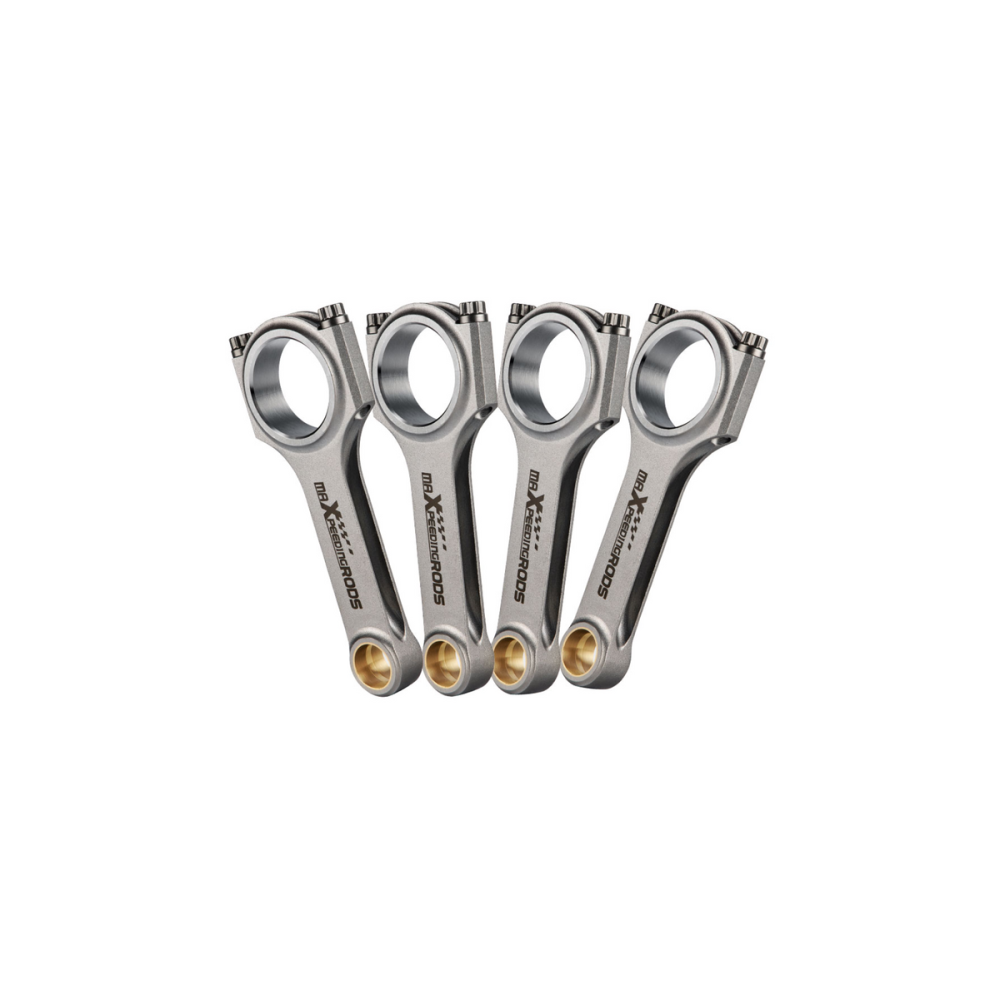

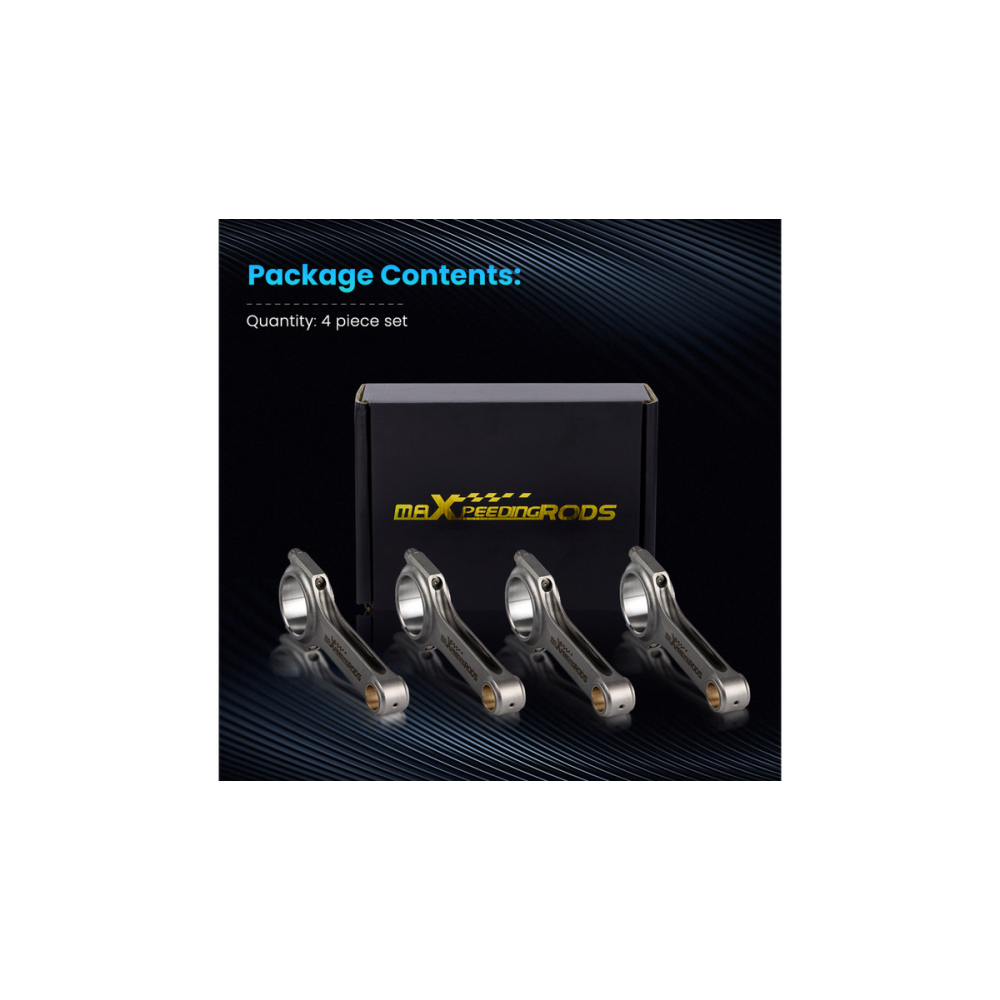

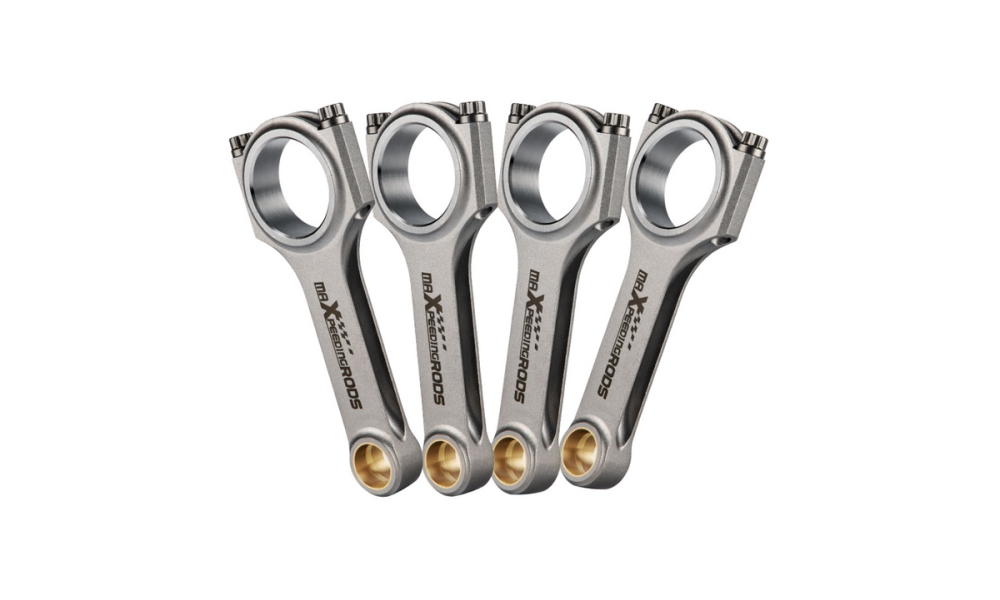

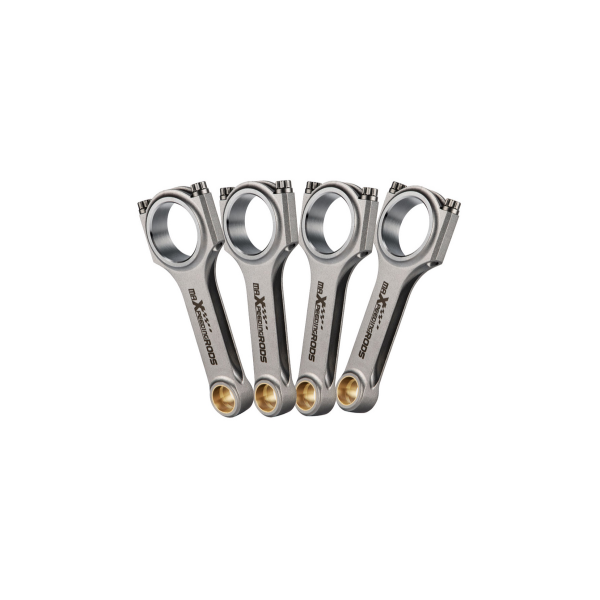

• Con Rods: H-beam design, 4 pieces per set
• Included Fasteners: Genuine ARP 2000 bolts (upgrade option available for ARP L19 bolts at additional cost)
• Fastener Size: 3/8" ARP 2000 bolts

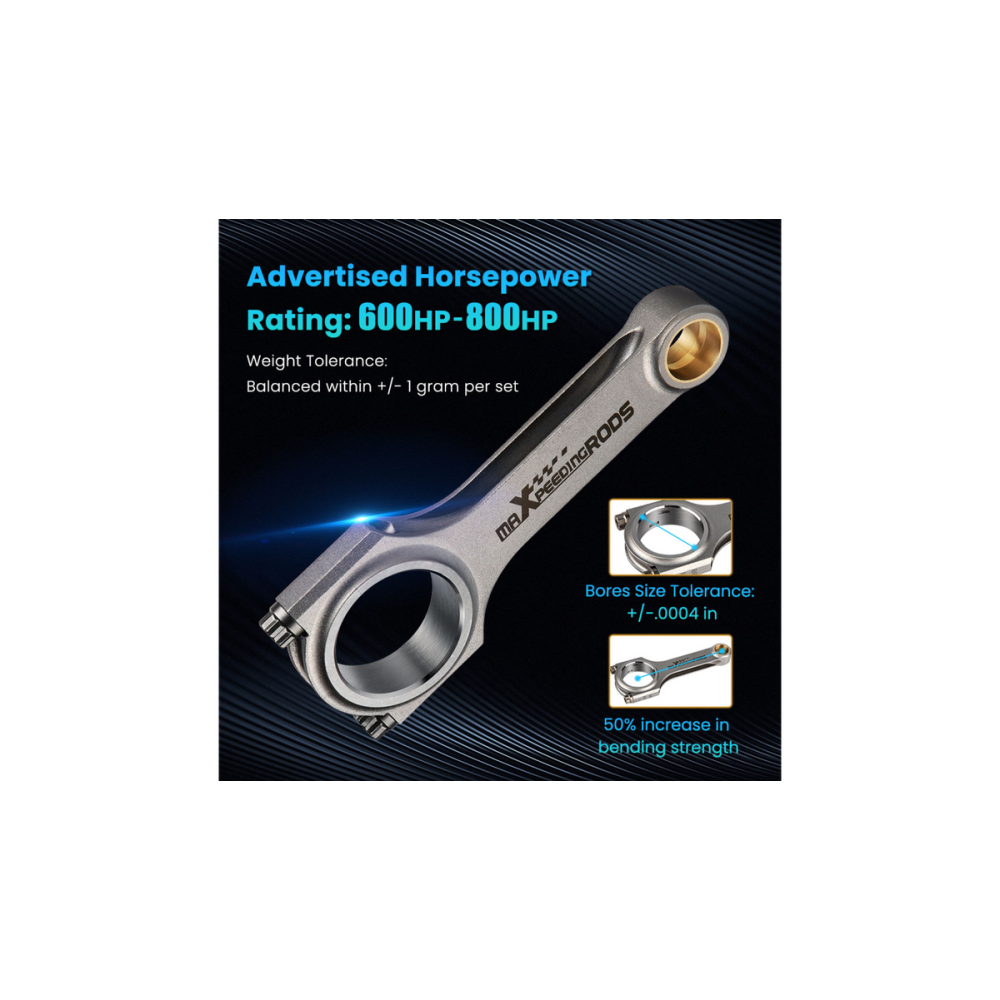

• Weight Tolerance: Balanced to within +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: Supports 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI
• Torque Rating: 48ft-lbs (approximately 65 NM)
• Optimal RPM Range: 7000 to 9000 RPM

Dimensions

• Center-to-Center Length: 137.75mm
• Big End Diameter: 48.66mm
• Small End Diameter: 18mm
• Big End Width: 24mm
• Small End Width: 20mm

Product Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining techniques.
- All ends are meticulously finished with SUNNEN honing for optimal performance.

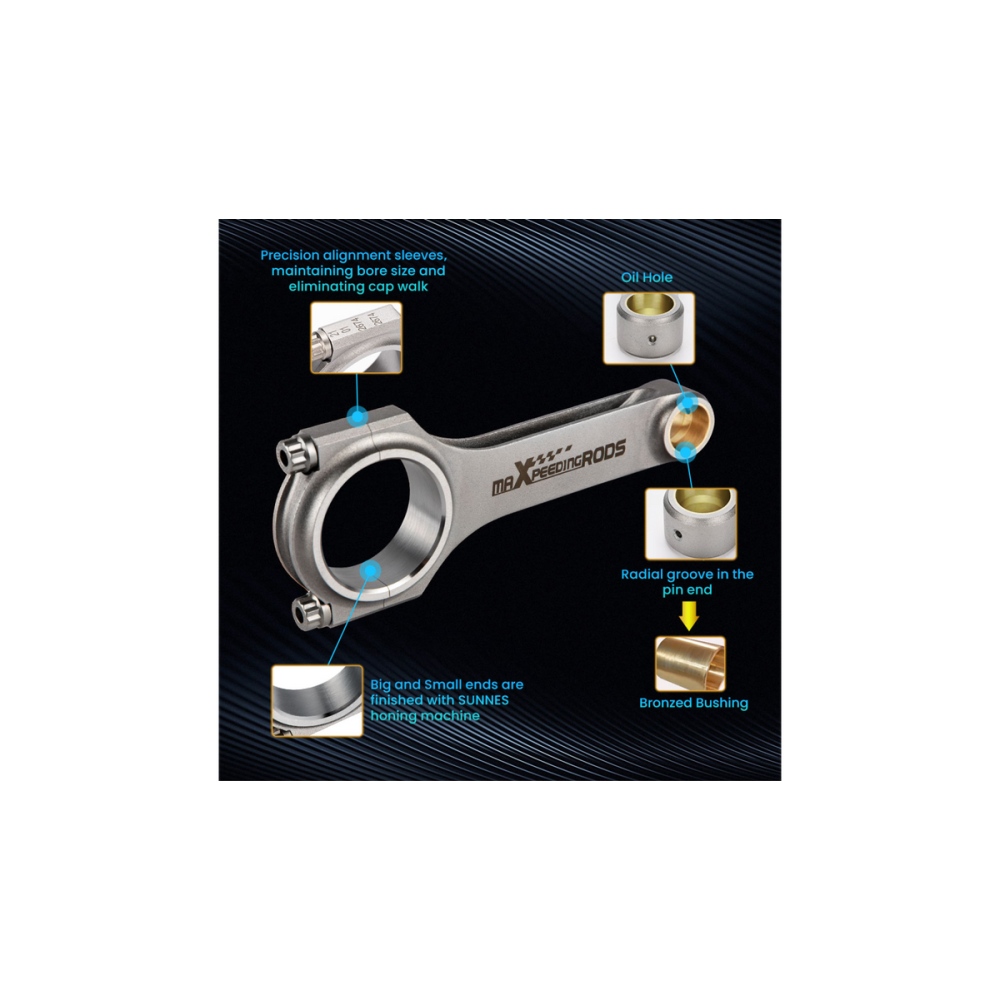

- Features precision alignment sleeves that secure the rod cap, preserving big end bore size and preventing cap movement.

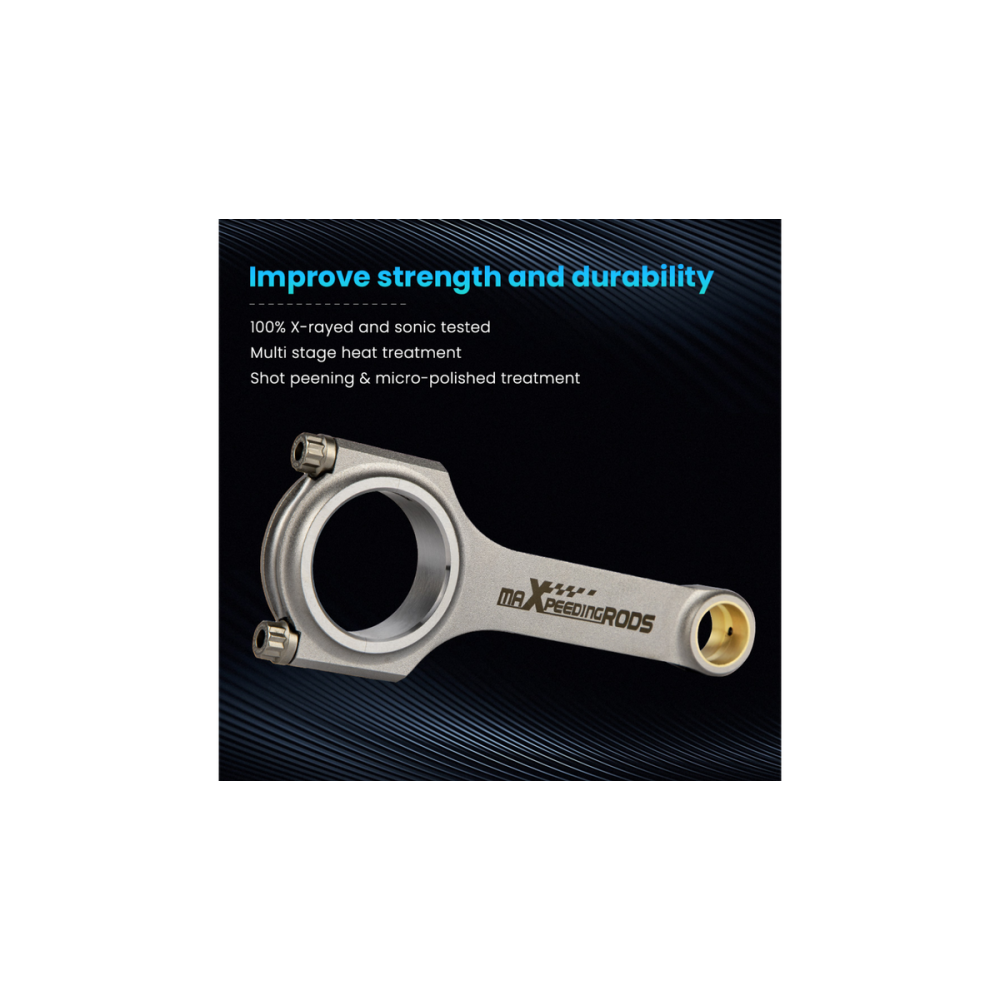

- Each rod undergoes rigorous quality checks, including X-ray inspection, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peening process relieves internal stresses for improved longevity.
- Supplied with bronzed bushings, perfectly suited for floating piston pins.

Installation Note

- We highly recommend professional installation for optimal performance and reliability (installation instructions are not included).
