Technical Specifications

• Material: Forged SAE 4340 Chrome Moly Steel, engineered for maximum strength and durability

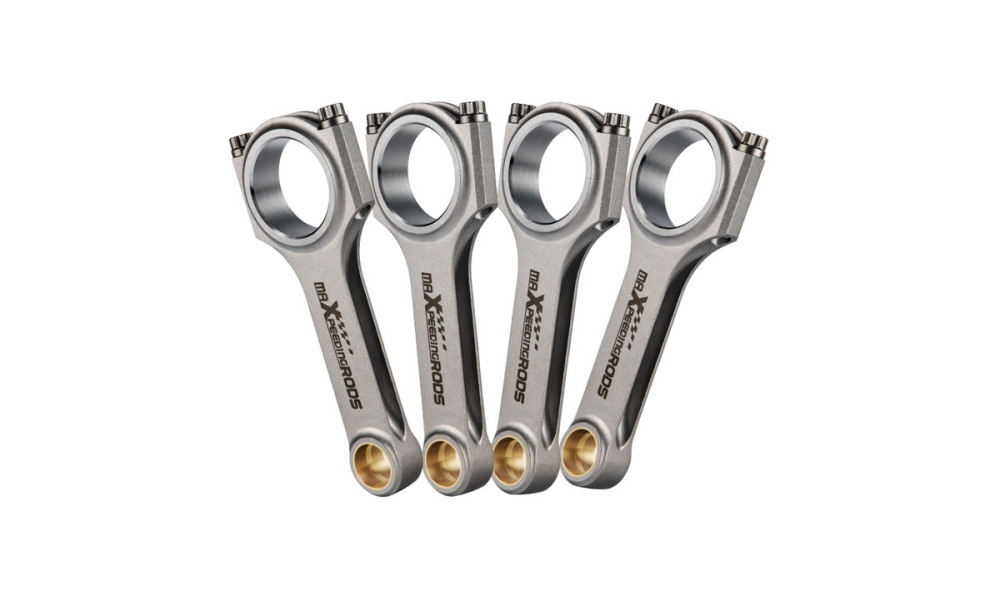

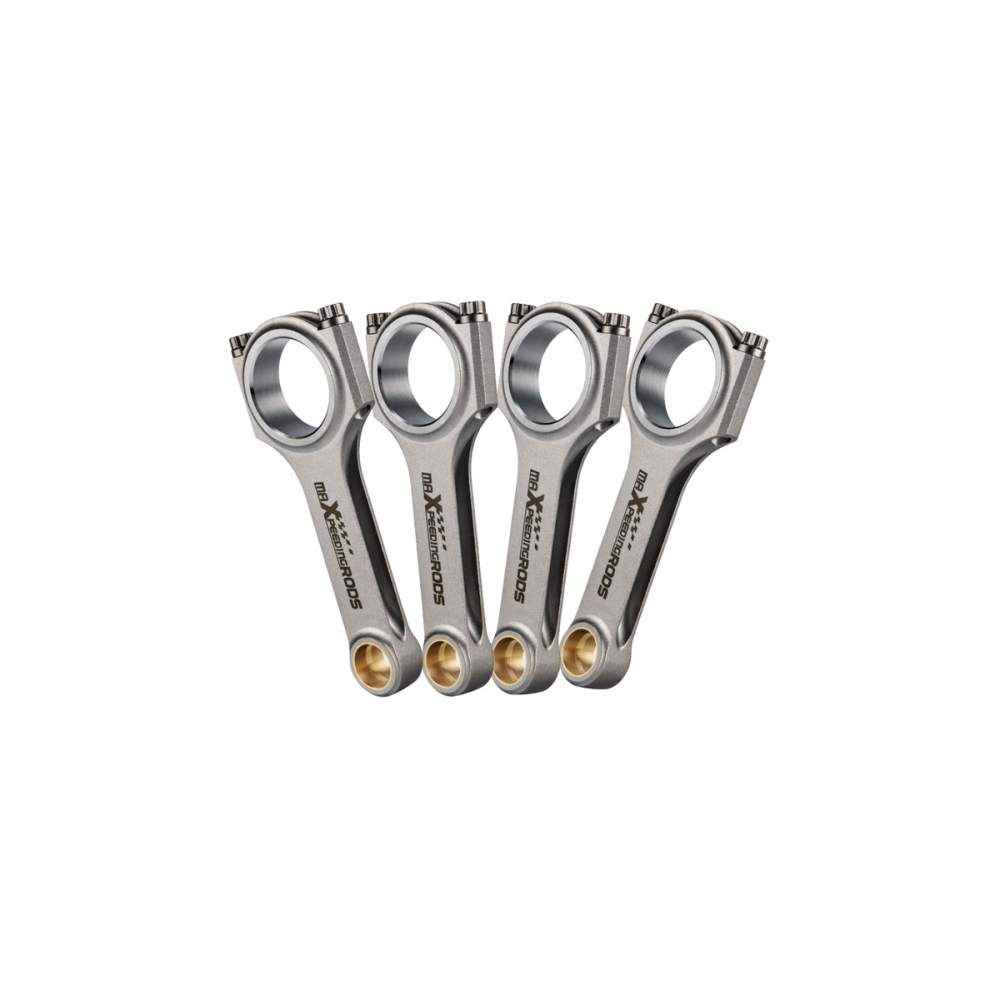

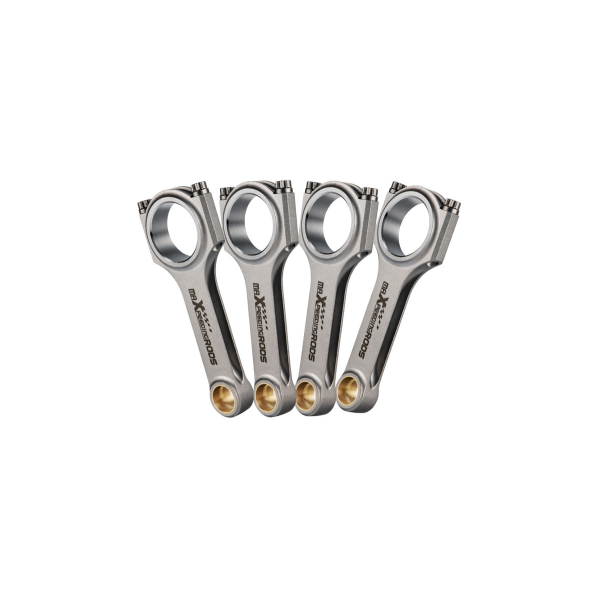

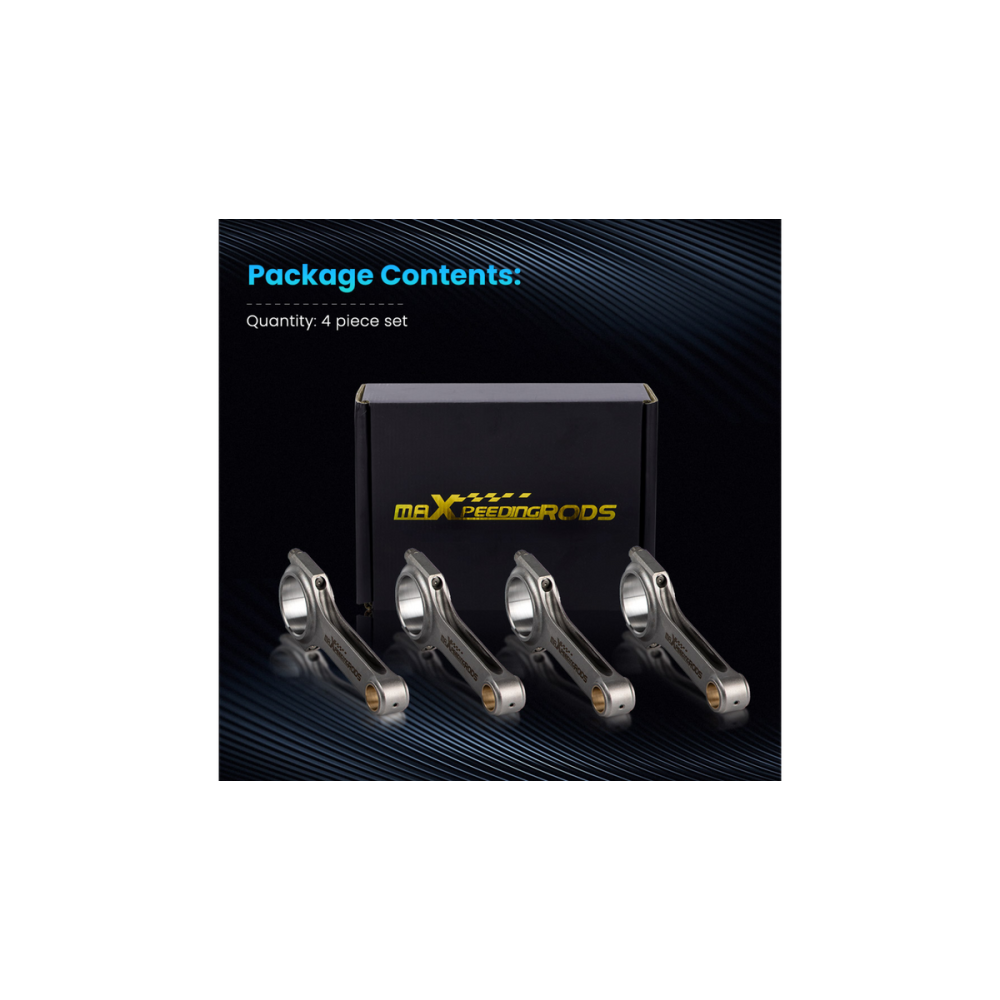

• H-Beam Conrods: 4 pieces per set
• Included Fasteners: Genuine ARP 2000 bolts (upgrade option available for ARP L19 bolts)
• Fastener Size: ARP 2000 3/8" bolts

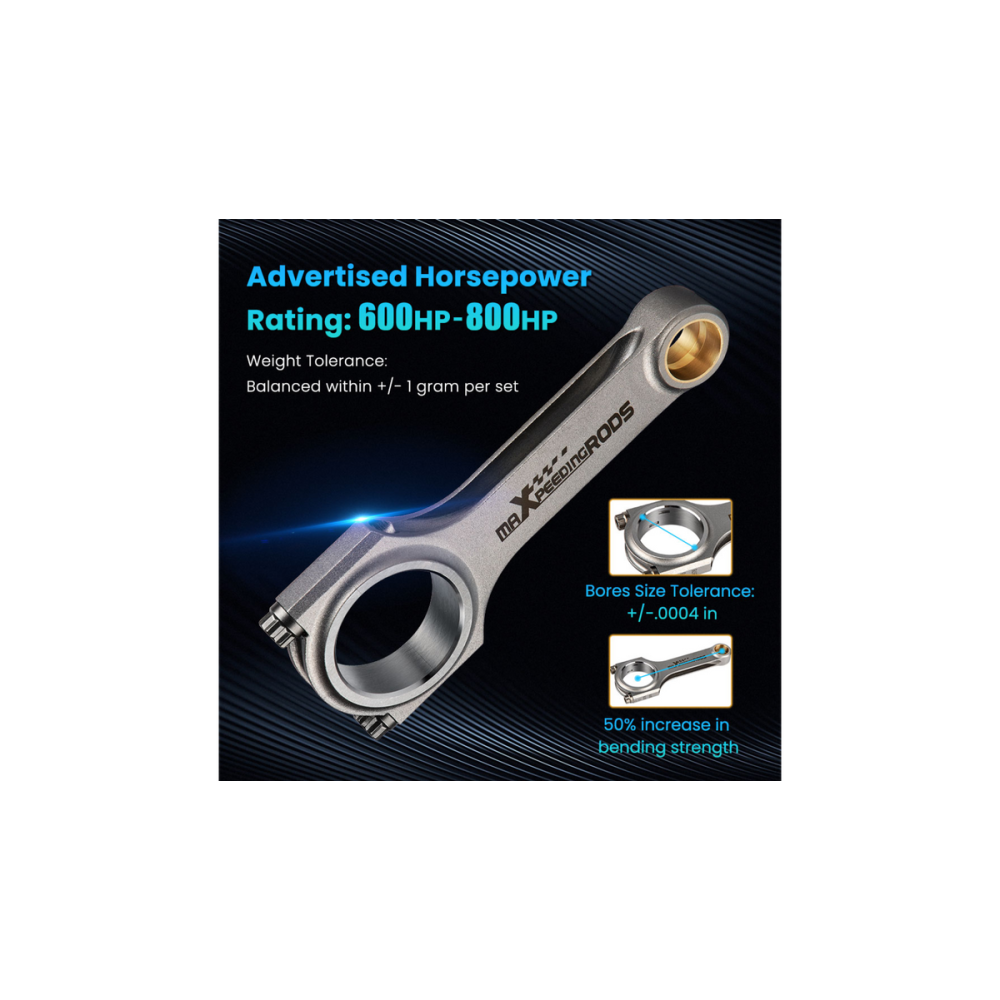

• Weight Tolerance: Balanced to within +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±4/1000mm
• Horsepower Rating: 200HP per rod
• Fastening Strength: 220,000 PSI; Torque: 48ft ≈ 65 NM
• Big End Bores: Honed to a tolerance of ±.01mm
• Maximum RPM: 9000rpm

Application Compatibility

Ensure to verify dimensions prior to purchase. Note: No tapered small end.

• Compatible with Audi and VW models including Golf GTI 1.8T, 2.0L 16V, and 20V 4 Cyl.
• Fits Audi S3, A3, A4, A6, TT, and VW 1.8T engines.
• Specific models: Audi A3 1.8 20vT (AGU/ARZ/ARX/AUM/AQA, 1996–2003), Audi S3 1.8 20vT (APY/AMK, 1999–2001), and Audi S3 1.8 20vT (BAM/AEB, 2001–2003).
• Also compatible with Seat Ibiza 1.8T (AYP/AQX), Audi A4/A6 1.8 20vT (AEB/ANB/APU/ARK), Audi TT Quattro 1.8T (BAM/AEB), VW Golf 1.8T (GTi AGU/ARZ), VW Jetta, VW New Beetle (2001–present), VW Passat 1.8T (AEB/ANB/ATW), VW Beetle 1.8T (AVC), and VW Bora 1.8T (AGU).

Dimensions

• Center-to-Center Length: 144mm (≈5.66929 in.)
• Big End Diameter: 50.6mm (≈1.99212 in.)
• Small End Diameter: 20mm (≈0.7874 in.)
• Big End Width: 24.9mm (≈0.98032 in.)
• Small End Width: 24.9mm (≈0.98032 in.)

Key Features

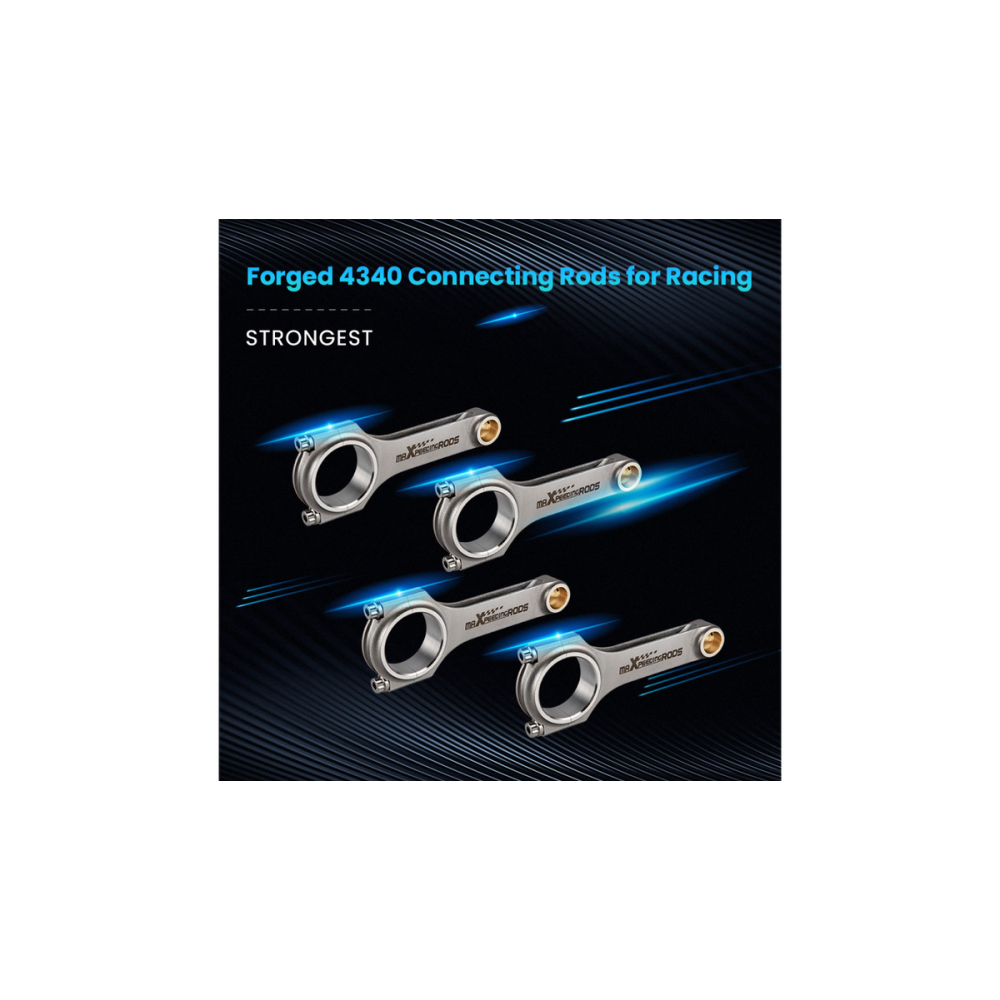

- High-performance connecting rods designed for racing applications.
- Constructed from premium forged SAE 4340 Chrome Moly Steel for unparalleled strength.
- Equipped with genuine ARP 2000 bolts, with an optional upgrade to ARP L19 fasteners for enhanced performance.

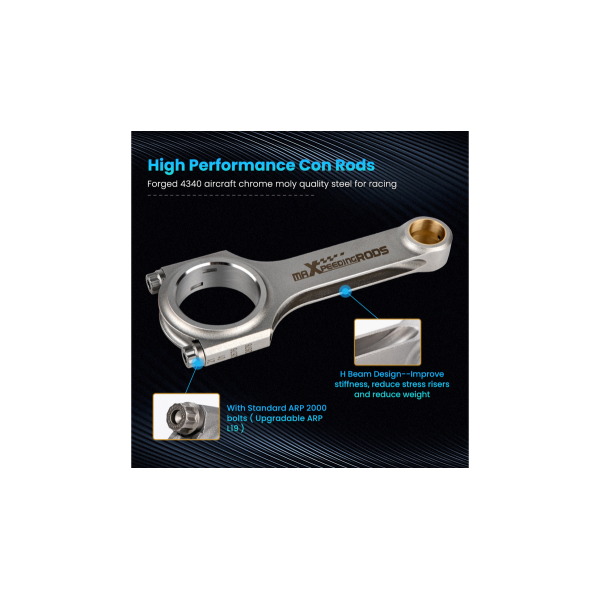

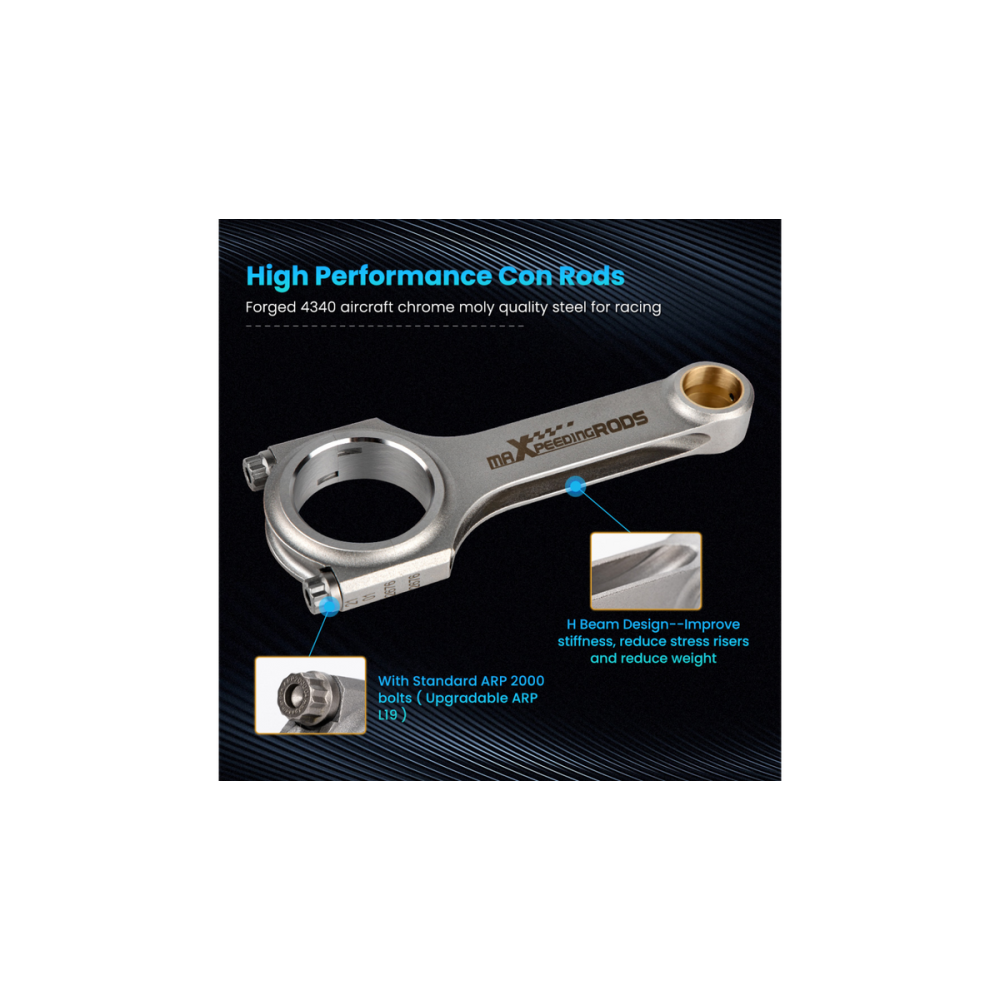

- H-Beam design optimizes weight while maintaining structural integrity.

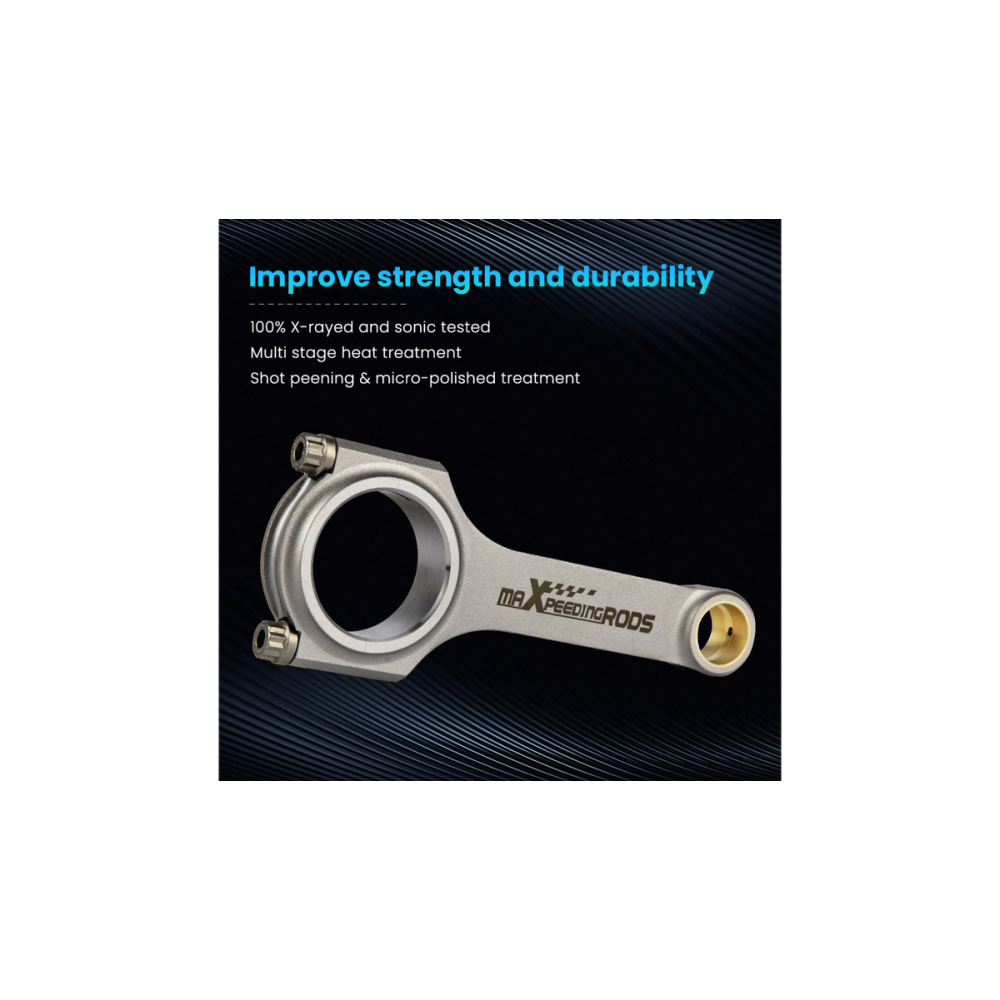

- Heat-treated and shot-peened to eliminate stress risers and enhance durability.

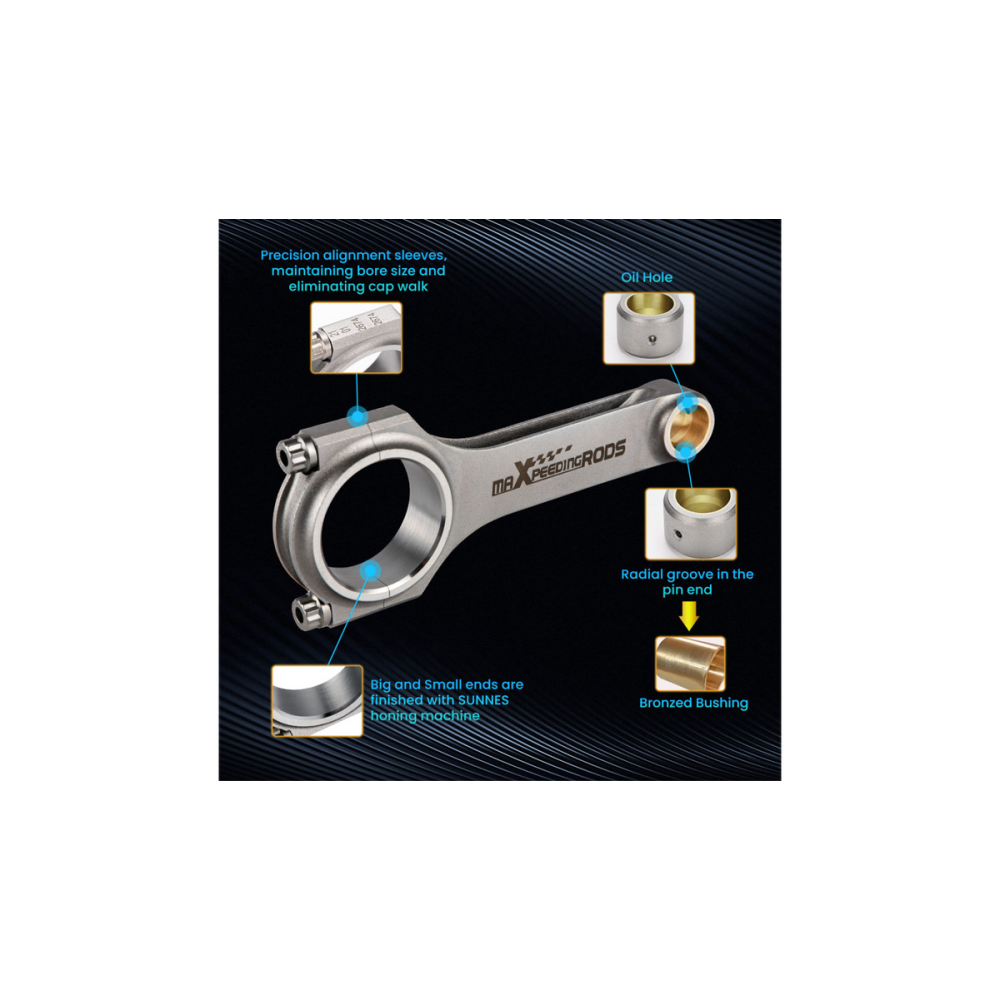

- 100% CNC machined for precision, featuring rod cap alignment dowels.
- Each rod is rigorously tested for quality assurance, including magnetic particle inspection and X-ray analysis.

Installation Note

Professional installation is strongly recommended. No installation instructions are included.
