Technical Specifications

• Application: VW GTi MK3 2.0L 8V, Jetta 2.0L ABA

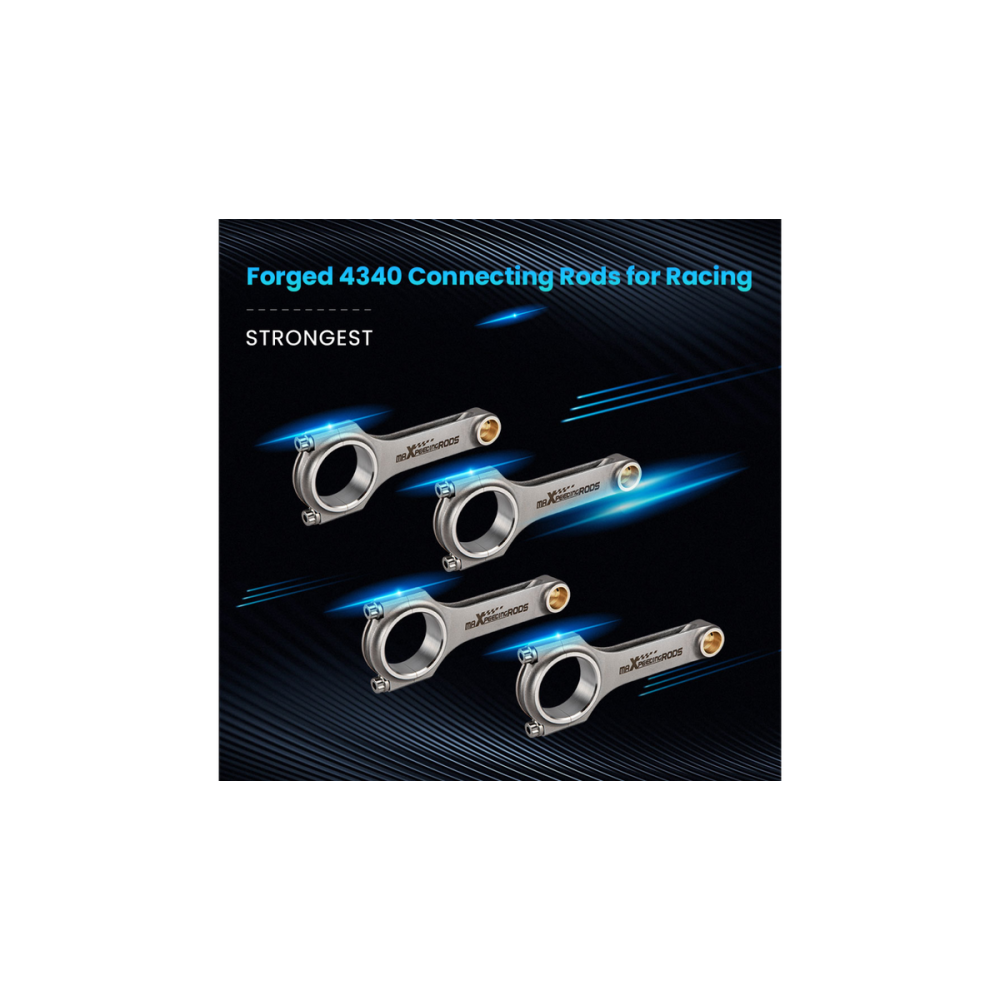

• Material: Forged 4340 Chrome Moly Steel, ideal for racing applications

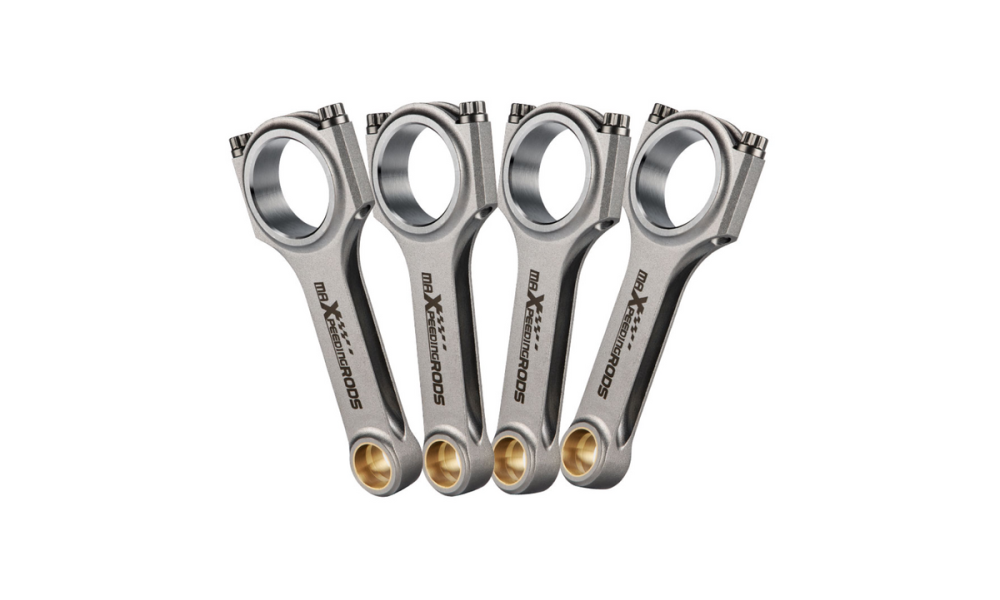

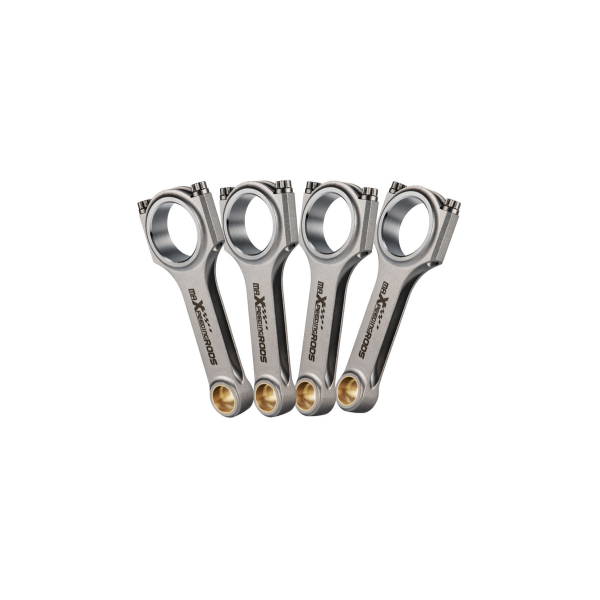

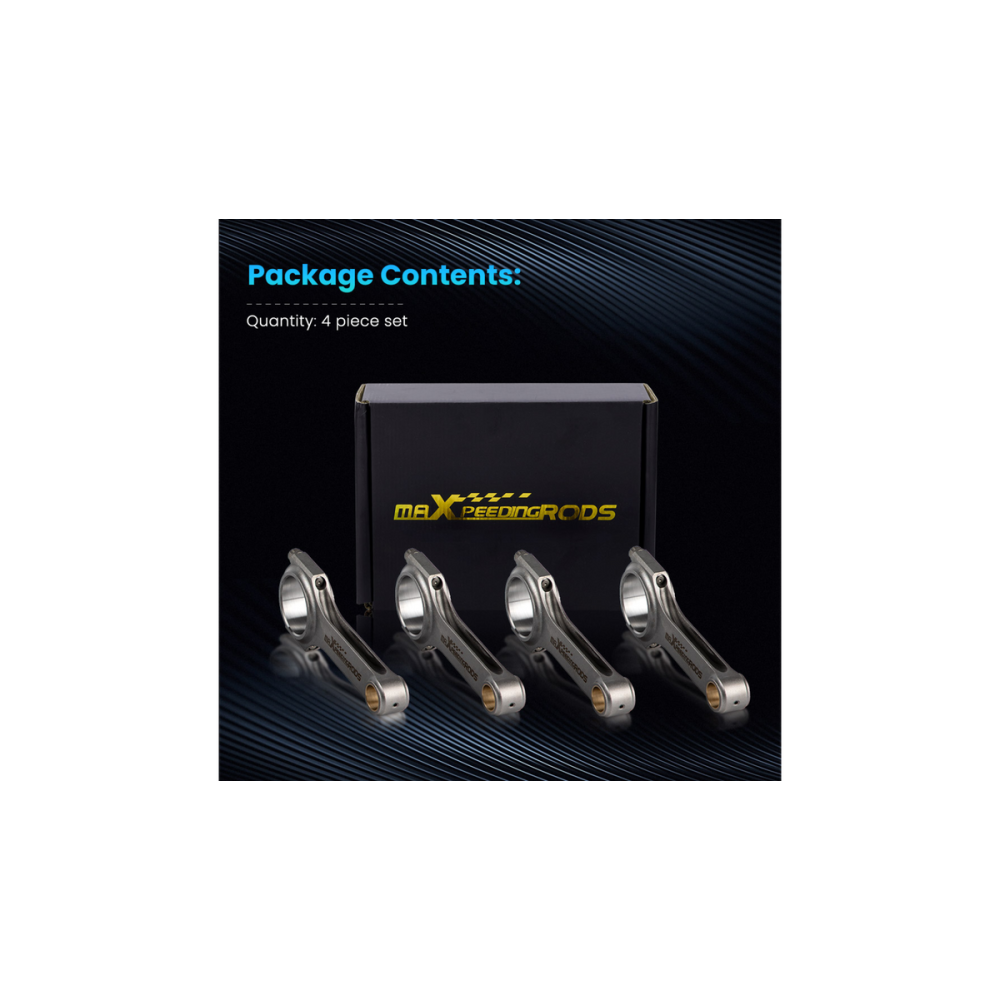

• Con Rods: H-beam design, 4 pieces per set
• Included Fasteners: Genuine ARP 2000 bolts (upgrade option available for ARP L19 bolts at additional cost)
• Fastener Size: 3/8" ARP 2000 bolts
• Weight Tolerance: Balanced to +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: Supports 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI, Torque: 48ft ≈ 65 NM
• Maximum RPM: 9000rpm
• Warranty: One-year coverage against manufacturing defects

Dimensions

• Center-to-Center Length: 159mm
• Big End Diameter: 50.6mm
• Small End Diameter: 21mm
• Big End Width: 24.9mm
• Small End Width: 24.9mm

Product Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining techniques.
- Both big and small ends are meticulously finished with SUNNEN honing for optimal performance.
- Equipped with precision alignment sleeves to secure the rod cap, preserving big end bore size and preventing cap walk.
- Each rod undergoes rigorous quality checks, including 100% X-ray inspection, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peening process relieves internal stresses, promoting longevity.
- Supplied with bronzed bushings compatible with floating piston pins for seamless operation.

Important Notes

- Ensure to verify the rod dimensions as specified in the description.
- Professional installation is strongly recommended; no installation instructions are included.
- Custom Services: If you don't find the conrods you need on our site, our team is ready to assist you in identifying your requirements and developing a tailored solution to meet your performance goals.
