Technical Specifications

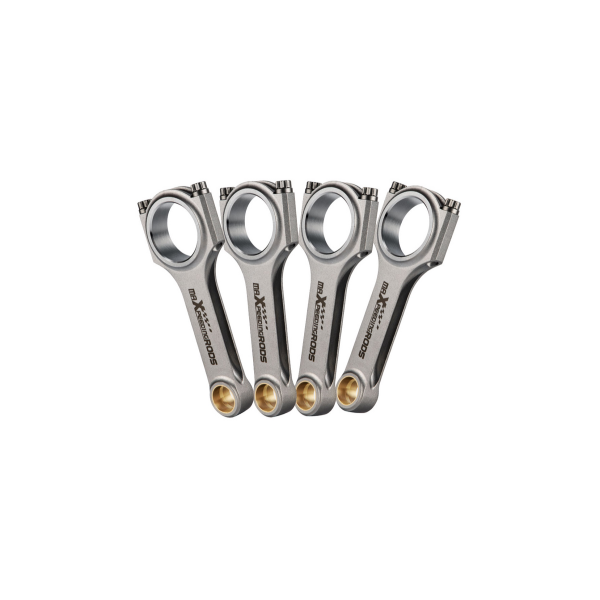

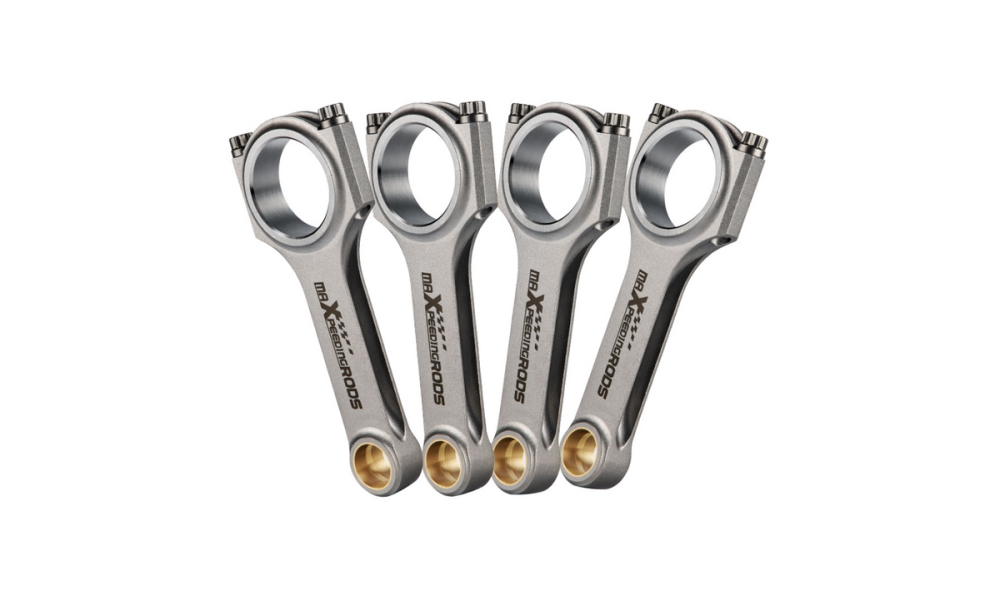

• Type: 4340 EN24 H-Beam Connecting Rod
• Performance: Capable of supporting 600hp to 800PS per set
• Weight Tolerance: Balanced to within +/- 1 gram
• Fastening Strength: 220,000 to 230,000 PSI
• Torque Rating: 48ft (approximately 65 NM)
• Top RPM: 9000rpm
• Dimensions:
• Center to Center Length: 128mm
• Big End Diameter: 47.61mm
• Small End Diameter: 20mm
• Big End Width: 21.8mm
• Small End Width: 21.8mm

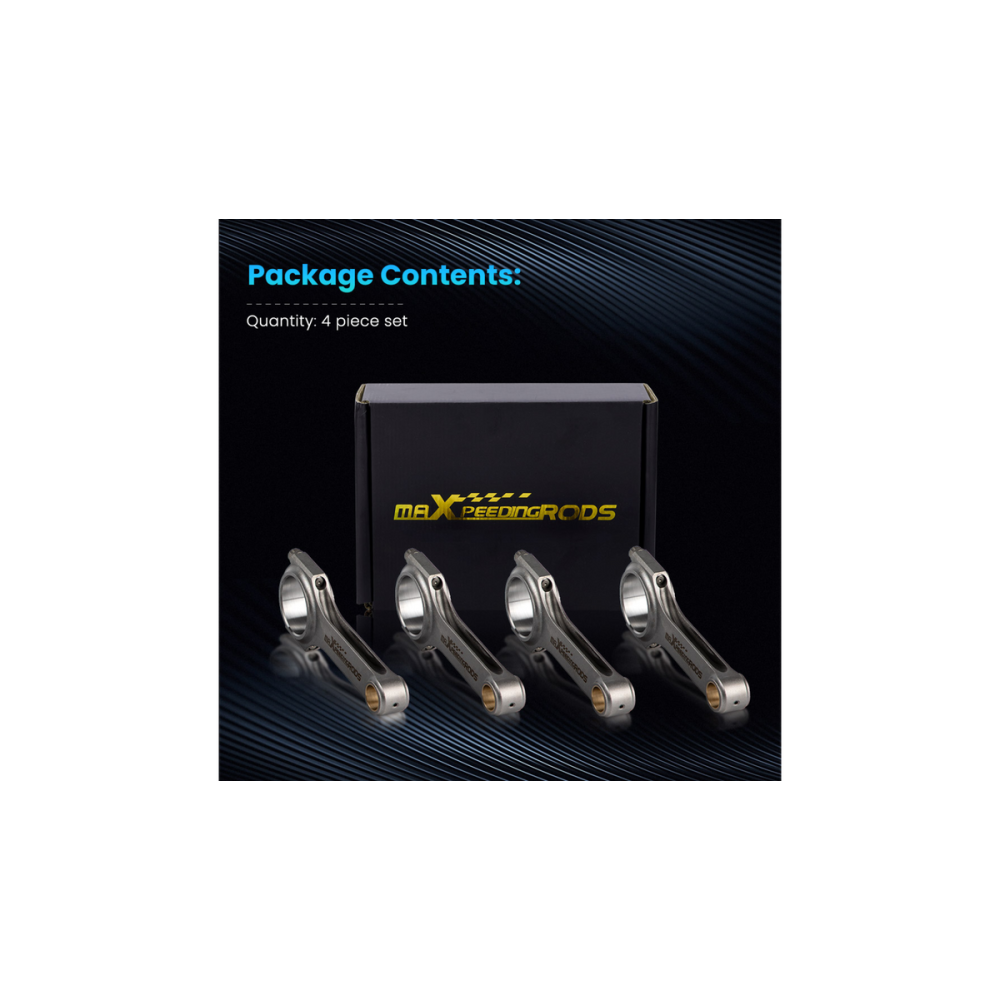

• Included Components: 4 Performance Con Rods with Genuine ARP 2000 3/8" bolts (upgrade option available for ARP L19 bolts)

Compatibility

• Renault Super 5 1.4 Turbo GT
• Renault 5 Series 122_ (1972-1985) Hatchback 1.4, 1.4 Turbo
• Renault Super 5 B/C40_ (1984-1996) Hatchback 1.4 Turbo GT

Features

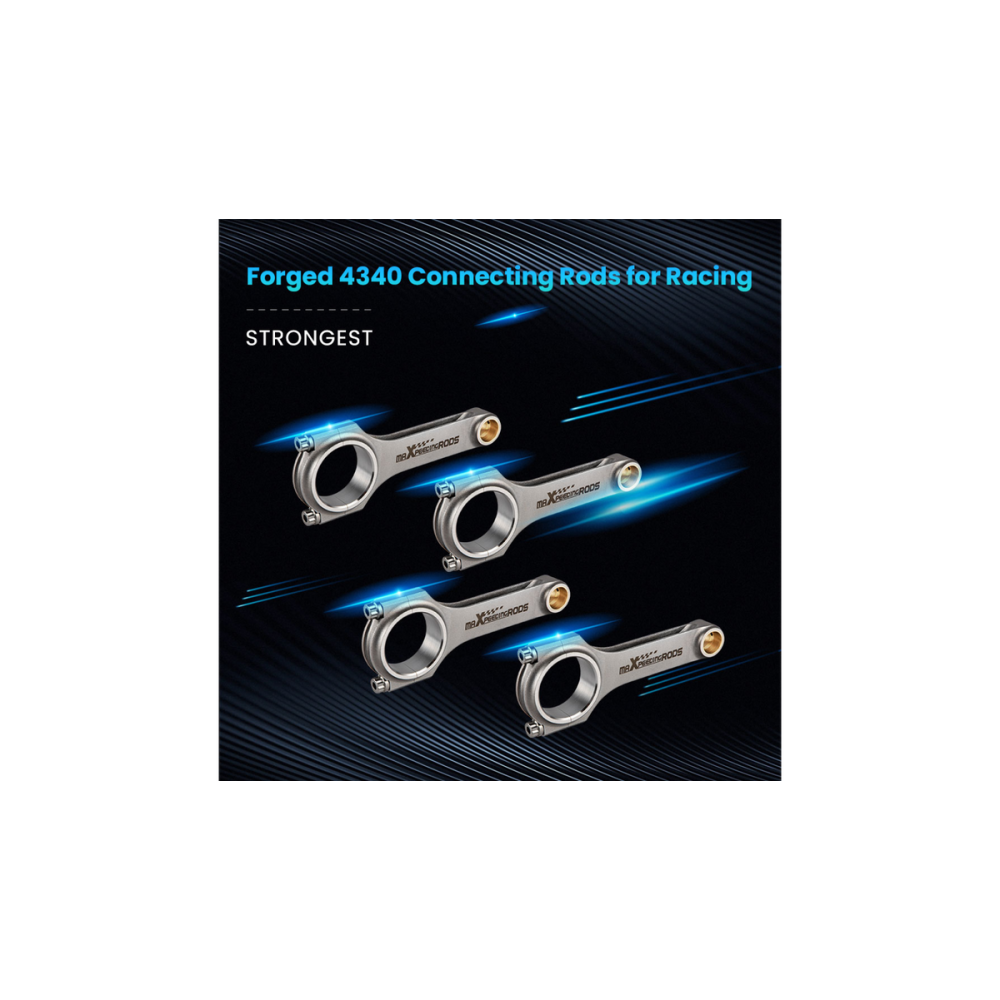

Crafted from forged SAE 4340 Chrome Moly Steel, these connecting rods are engineered for maximum strength and durability, making them ideal for racing applications. Each rod undergoes precision CNC machining, ensuring a perfect fit and finish. The big and small ends are meticulously honed using SUNNEN technology, while precision alignment sleeves guarantee accurate rod cap placement, preventing cap walk and maintaining bore size. Every rod is 100% X-rayed, sonic tested, and magnafluxed for quality assurance. Multi-stage heat treatment and shot peening processes enhance performance by relieving stress and increasing longevity. Each set includes bronzed bushings designed for floating piston pins.

Installation & Custom Services

Professional installation is strongly recommended, as no instructions are provided. If you can't find the specific connecting rods you need on our site, our team is ready to assist you in determining your requirements and developing a tailored solution to meet your performance goals.
