Technical Specifications

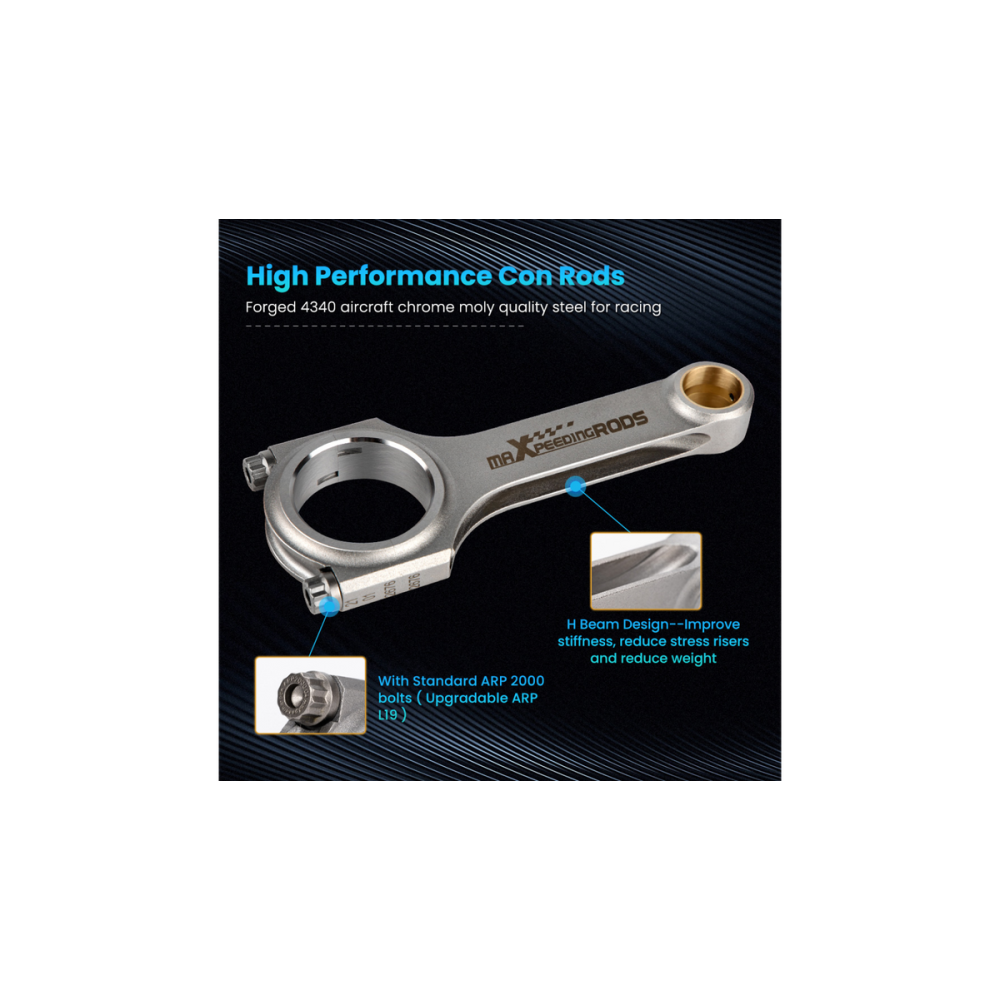

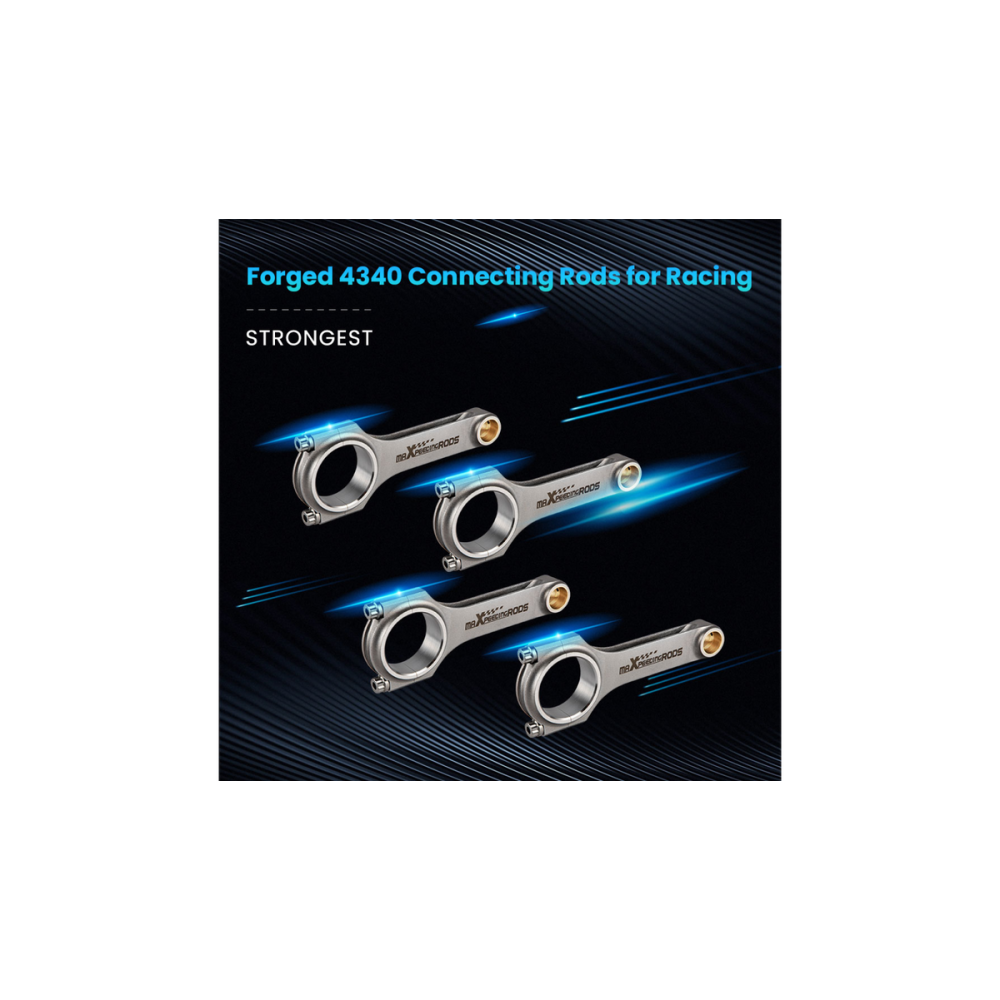

• Material: Forged 4340 Chrome Moly Steel, engineered for racing applications

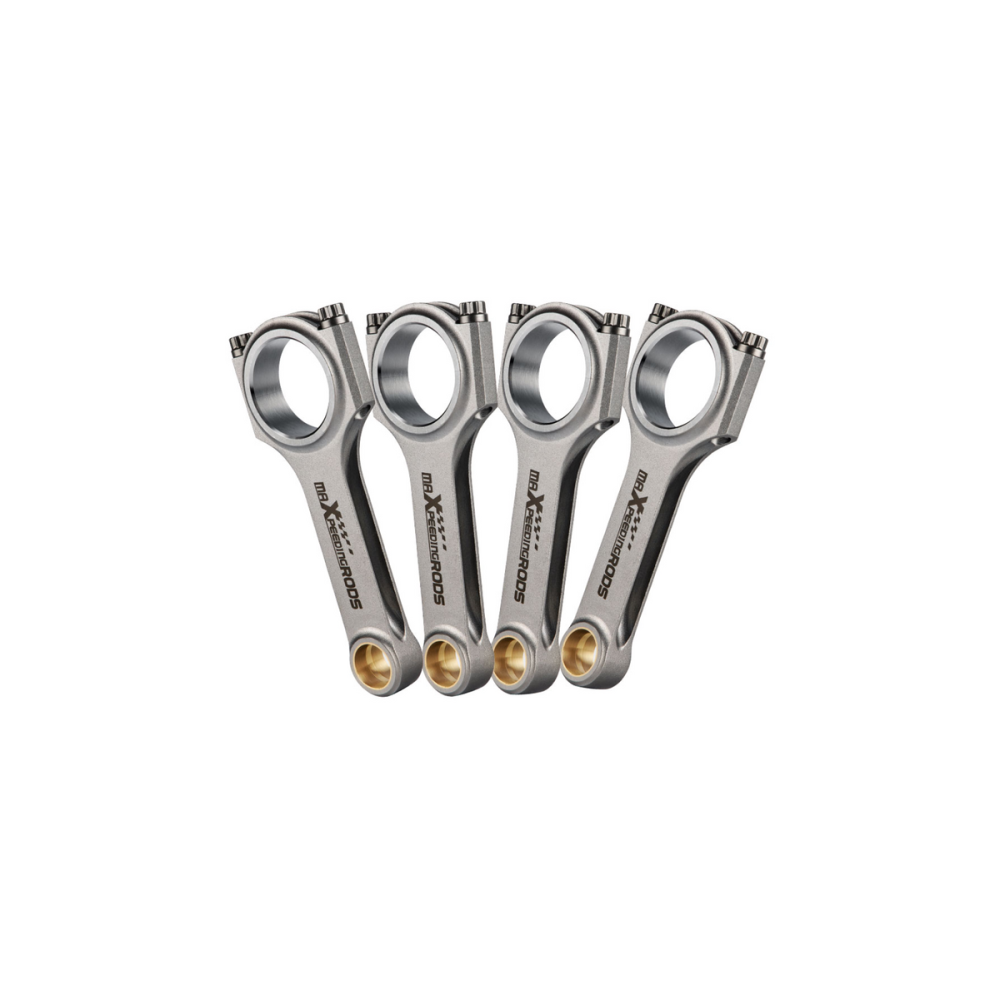

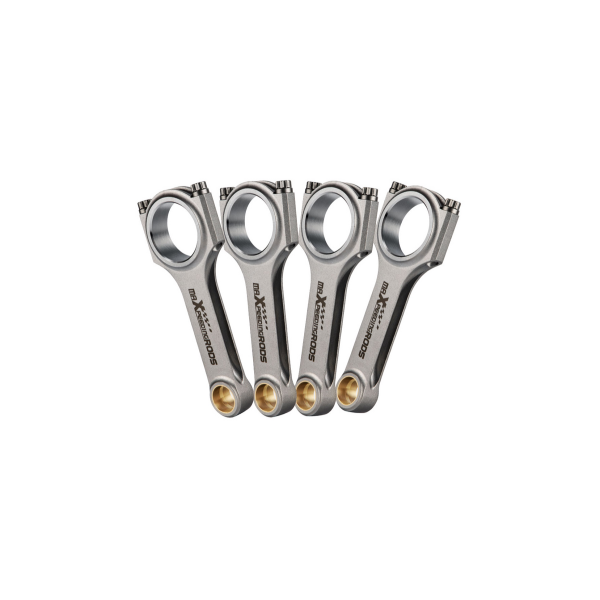

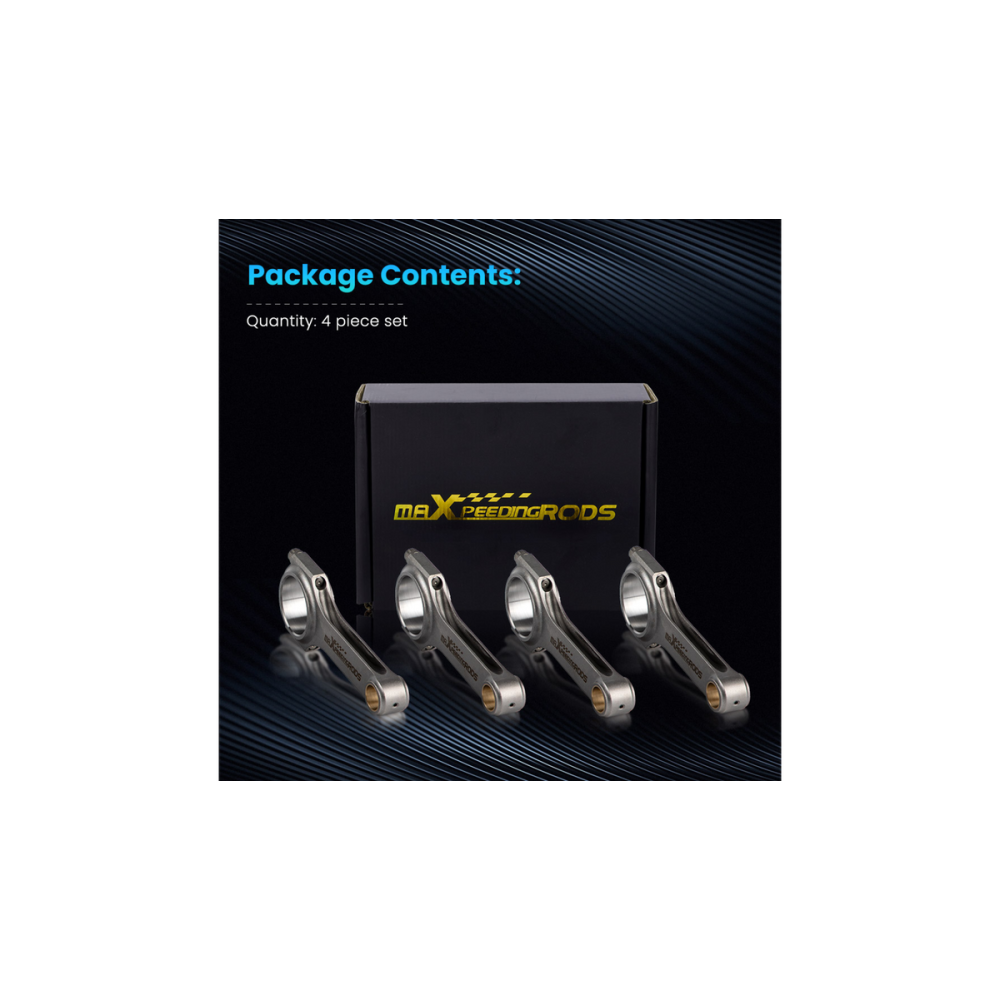

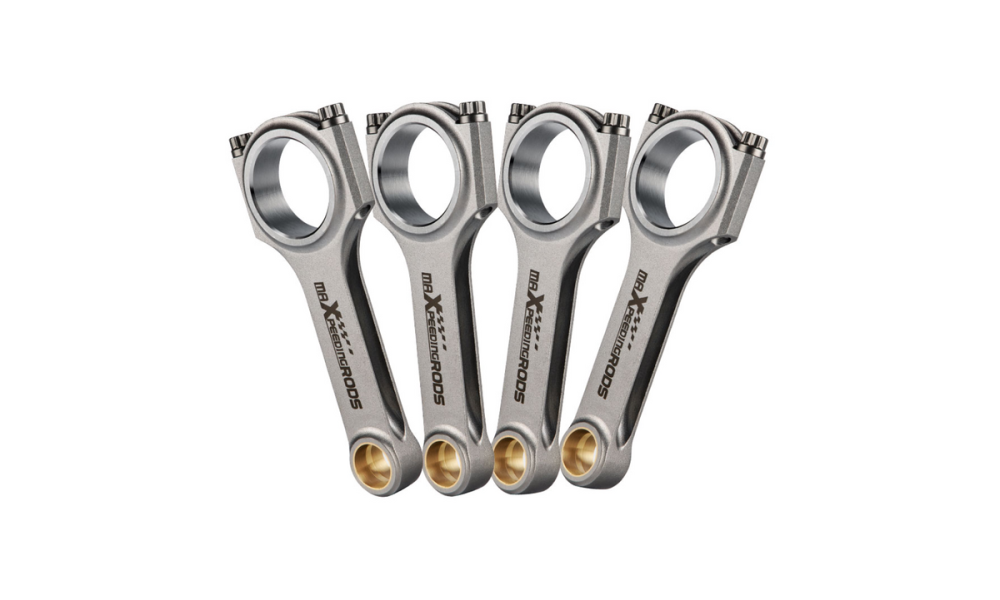

• Conrod Quantity: 4 pieces per set
• Included Fasteners: Genuine ARP 2000 3/8" bolts (upgrade option available for ARP L19 bolts at additional cost)
• Fastener Size: 3/8"
• Weight Tolerance: Balanced to within +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±4/1000mm
• Power Capacity: Supports up to 600hp ~ 800PS per set
• Fastening Strength: 220,000/230,000 PSI; Torque: 48ft ≈ 65 NM
• Maximum RPM: Capable of handling up to 9000rpm

Application Compatibility

• VW TDI 1.9L PD90, PD100, PD115 (Type 4340 EN24)
• VW Golf MK III (1993-1999) Hatchback 1.9 TDI, 1.9 TDI Syncro
• VW Golf MK III (1994-1999) Estate 1.9 TDI, 1.9 TDI Syncro
• VW Golf MK V (2003-2009) Hatchback 1.9 TDI, 1.9 TDI 4motion
• VW Golf Cabriolet MK III (1995-2002) Convertible 1.9 TDI
• VW Jetta MK III (2005-2010) Saloon 1.9 TDI

Dimensions

• Center-to-Center Length: 144mm
• Big End Diameter: 50.6mm
• Small End Diameter: 26.01mm (tapered)
• Big End Width: 25mm
• Small End Width: 25mm

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining technology.
- All ends are meticulously finished with SUNNEN honing for optimal performance.
- Equipped with precision alignment sleeves to maintain big end bore size and prevent cap walk.

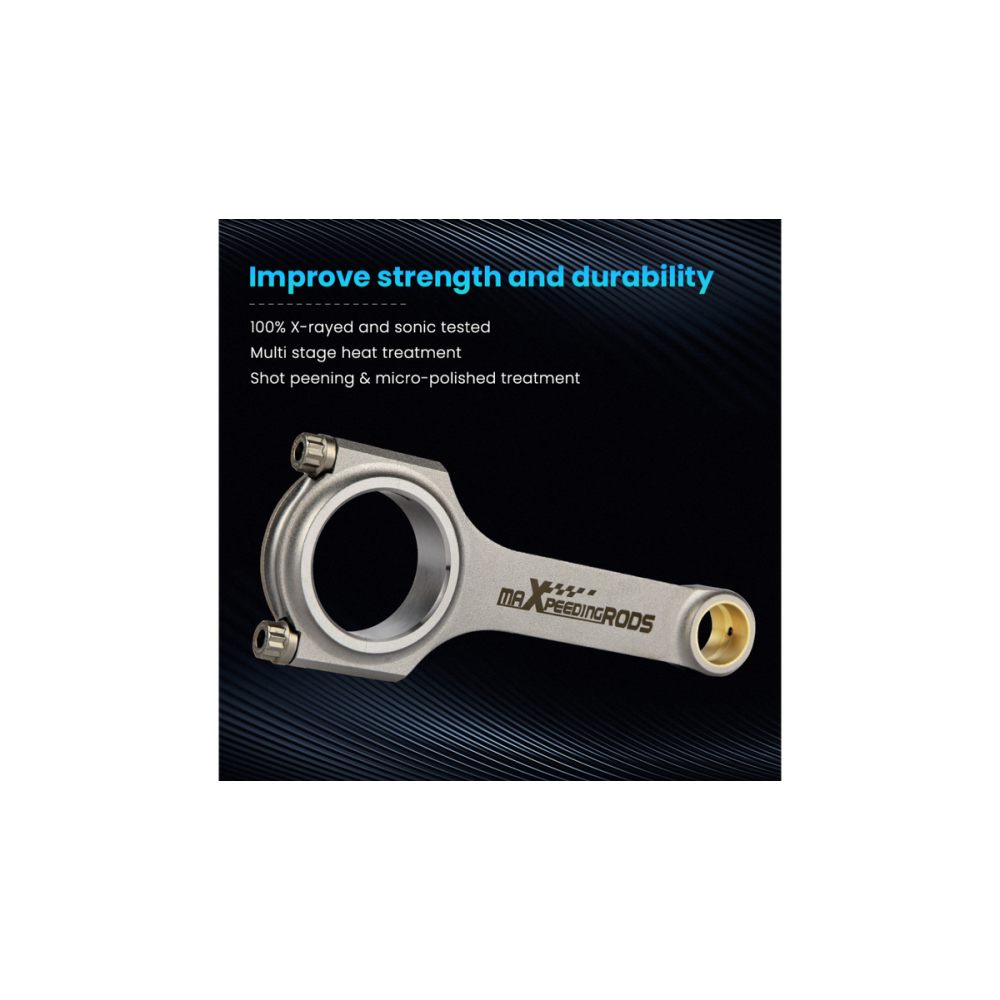

- Each unit undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, ensuring longevity.
- Comes with bronzed bushings designed for floating piston pins.

Important Notes

- Verify the rod sizes against your specific requirements before purchase.
- Features a tapered small end for improved fitment.
- Professional installation is strongly recommended; no installation instructions are included.
- Custom Services: If you can't find the conrods you need on our site, our team is ready to assist you in determining your requirements and developing tailored solutions to meet your performance goals.
