Technical Specifications

• Material: Forged 4340 Chrome Moly Steel

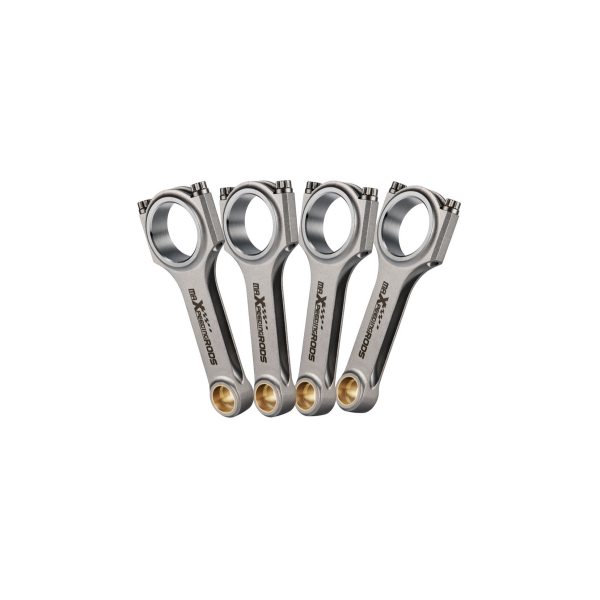

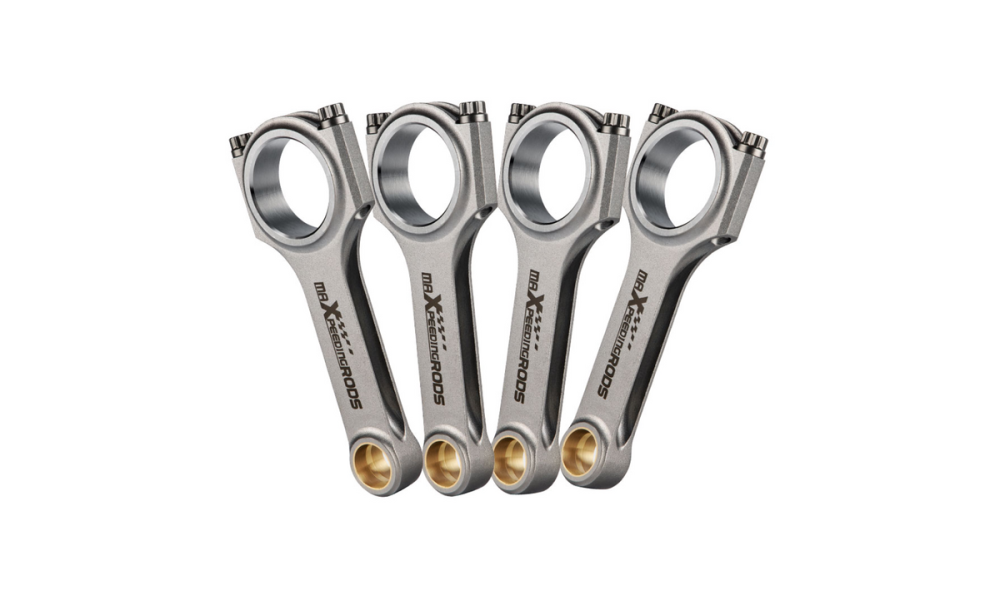

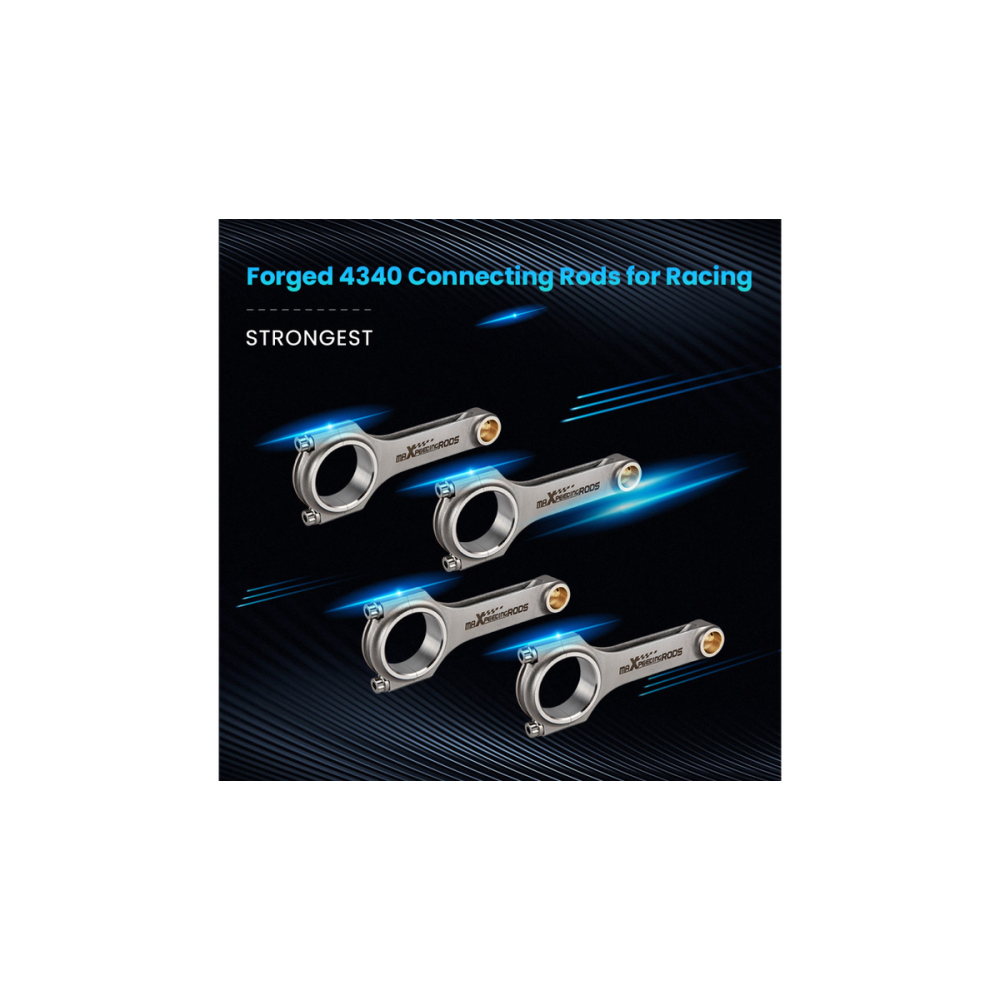

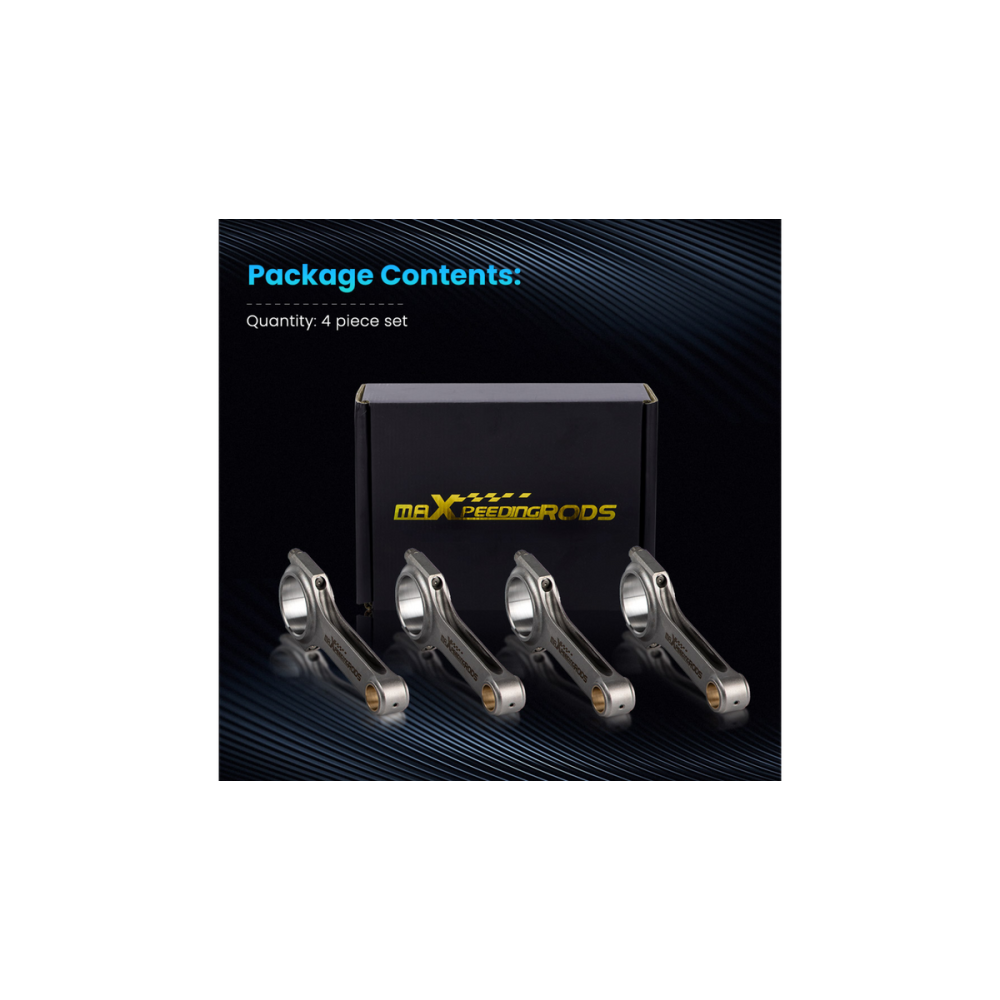

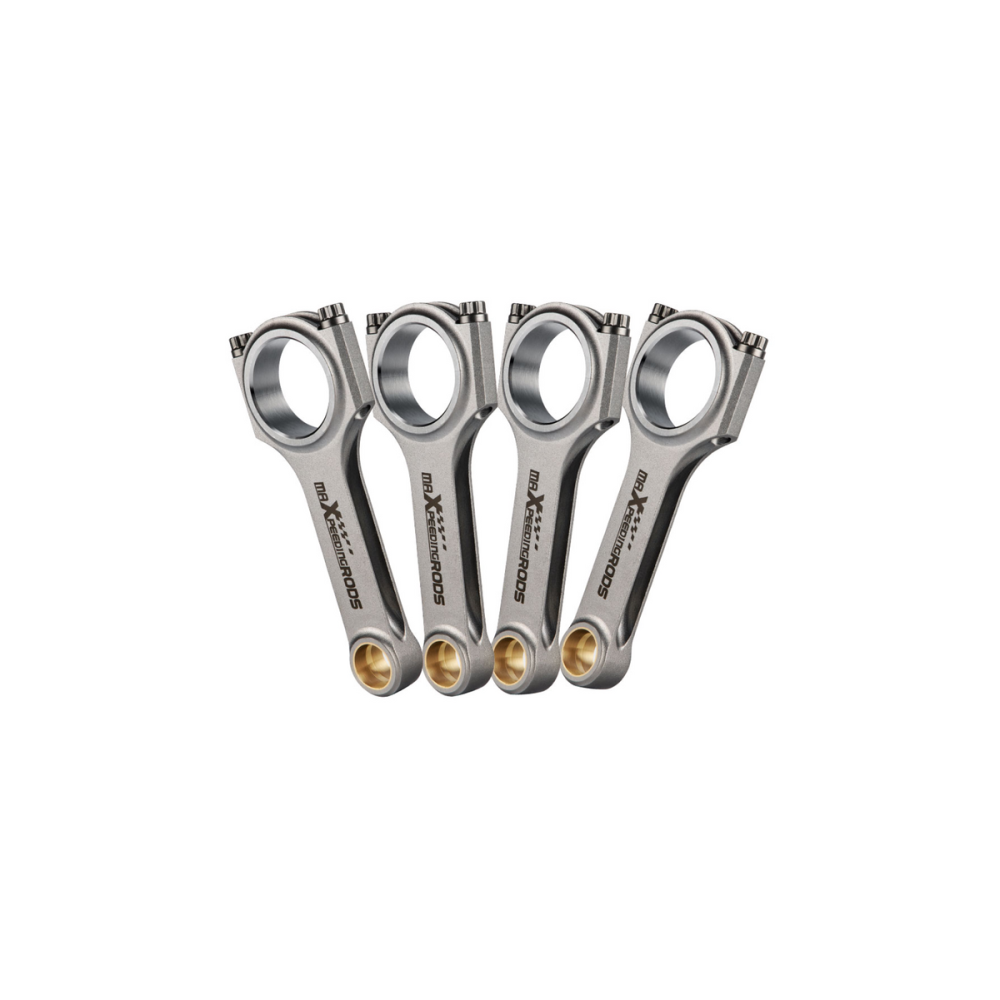

• Con Rods Type: H-beam, 4 pieces per set
• Included Bolts: Genuine 3/8" ARP 2000 bolts (upgrade option available for ARP L19 bolts)
• Weight Tolerance: Balanced to +/- 1 gram
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI
• Torque Rating: 48ft (≈ 65 NM)
• Max RPM: 9000
• Dimensions: Center-to-center length: 5.433" (138mm), Big end diameter: 48mm, Small end diameter: 21mm, Big end width: 21.77mm, Small end width: 23.45mm

Application Compatibility

• Honda Acura B18C1/B18C5 GSR Integra R (1994-2001)
• Honda Quint Integra, Acura Integra Generation 3: Series DB8, DC2
• Acura Integra (GSR/Type R) 1994-2001 B18C1/B18C5
• Honda B18C1/B18C5 (DOHC Engine) 1997-2001, compatible with Acura Integra USDM/CDM Type R

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing applications.
- Precision-engineered using advanced CNC machining for optimal fit and finish.
- All ends are meticulously honed with SUNNEN technology for superior surface quality.
- Features precision alignment sleeves that secure the rod cap, maintaining bore size and preventing cap walk.
- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, ensuring longevity under extreme conditions.
- Supplied with bronzed bushings designed for floating piston pins, enhancing performance.

Installation Note

For optimal performance and safety, professional installation is strongly recommended. Please note that installation instructions are not included.
